Rear Floor Air Duct Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

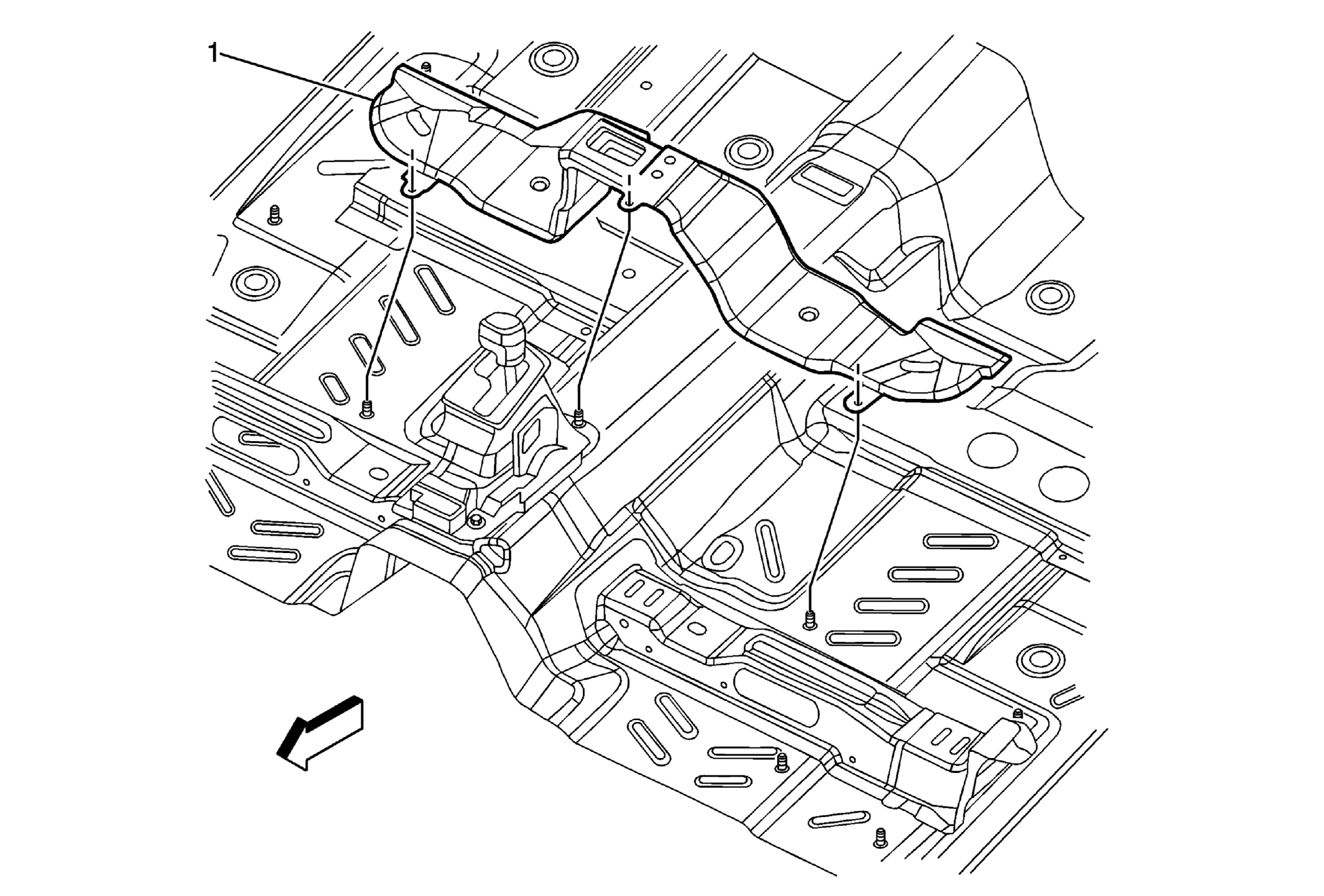

Fig 1: Rear Floor Air Duct Replacement
GM1979438Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear floor panel carpet. Refer to Rear Floor Panel Carpet Replacement .
1 Rear Floor Air Distribution Duct
Procedure:
Push inboard and outboard tabs over floor pan studs and engage.
Tip:  Do not place center tab beneath shifter stud bolt before installing bolt.
