Front Floor Console Rear Air Duct Replacement (Front)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

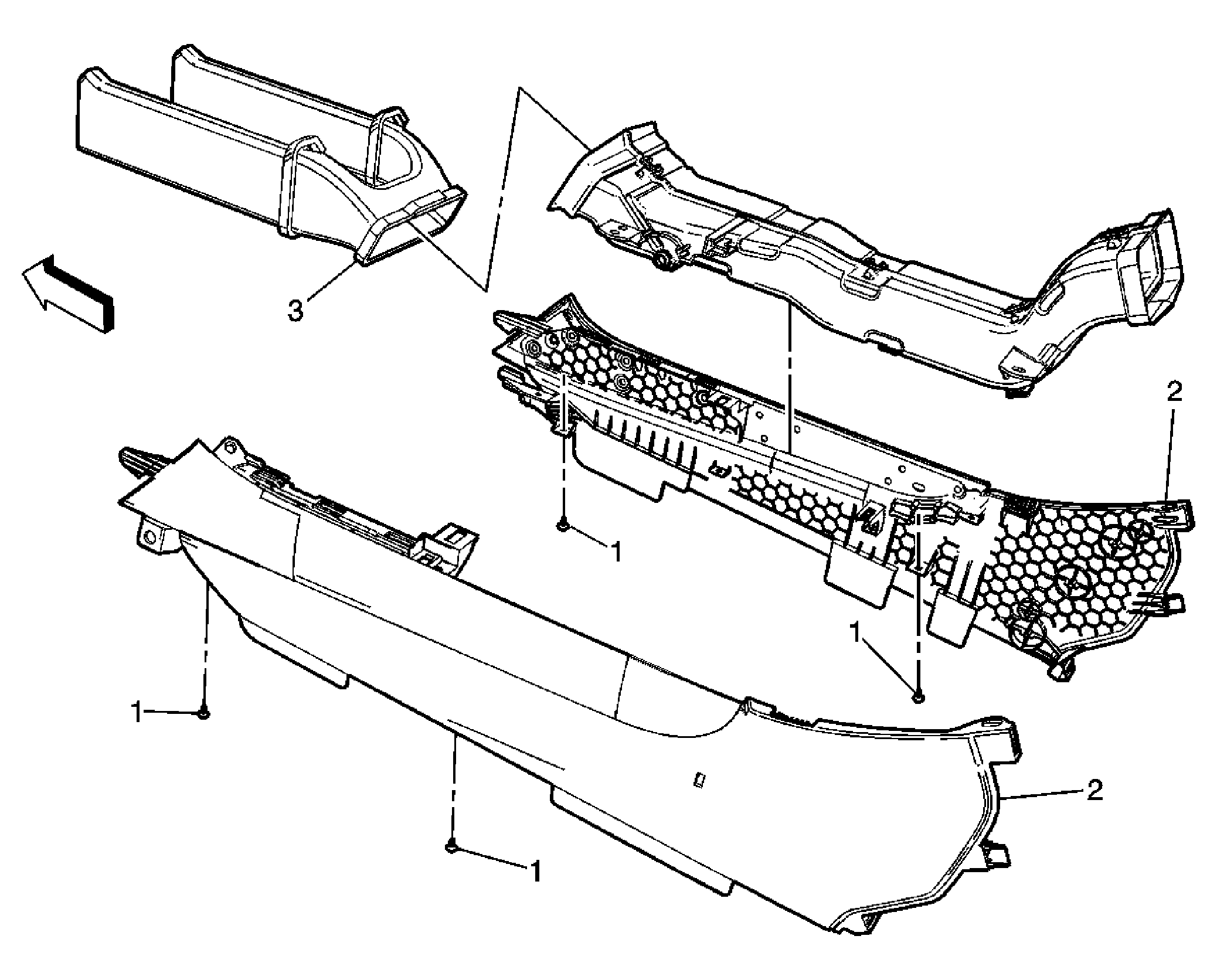

Fig 1: Front Floor Console Rear Air Duct Replacement (Front)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the Front Floor Console. Refer to Front Floor Console Replacement .
1	Front Floor Console Rear Air Duct and Side Panel Screw (Qty: 4). NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Front Floor Console Side Panels. Procedure: Separate Side Panels from rear duct.
3	Front Floor Console Rear Air Duct (Front). Procedure Disconnect any wiring harness from the console assembly or ducts and position out of the way. When replacing the air duct, transfer all necessary components.
