Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

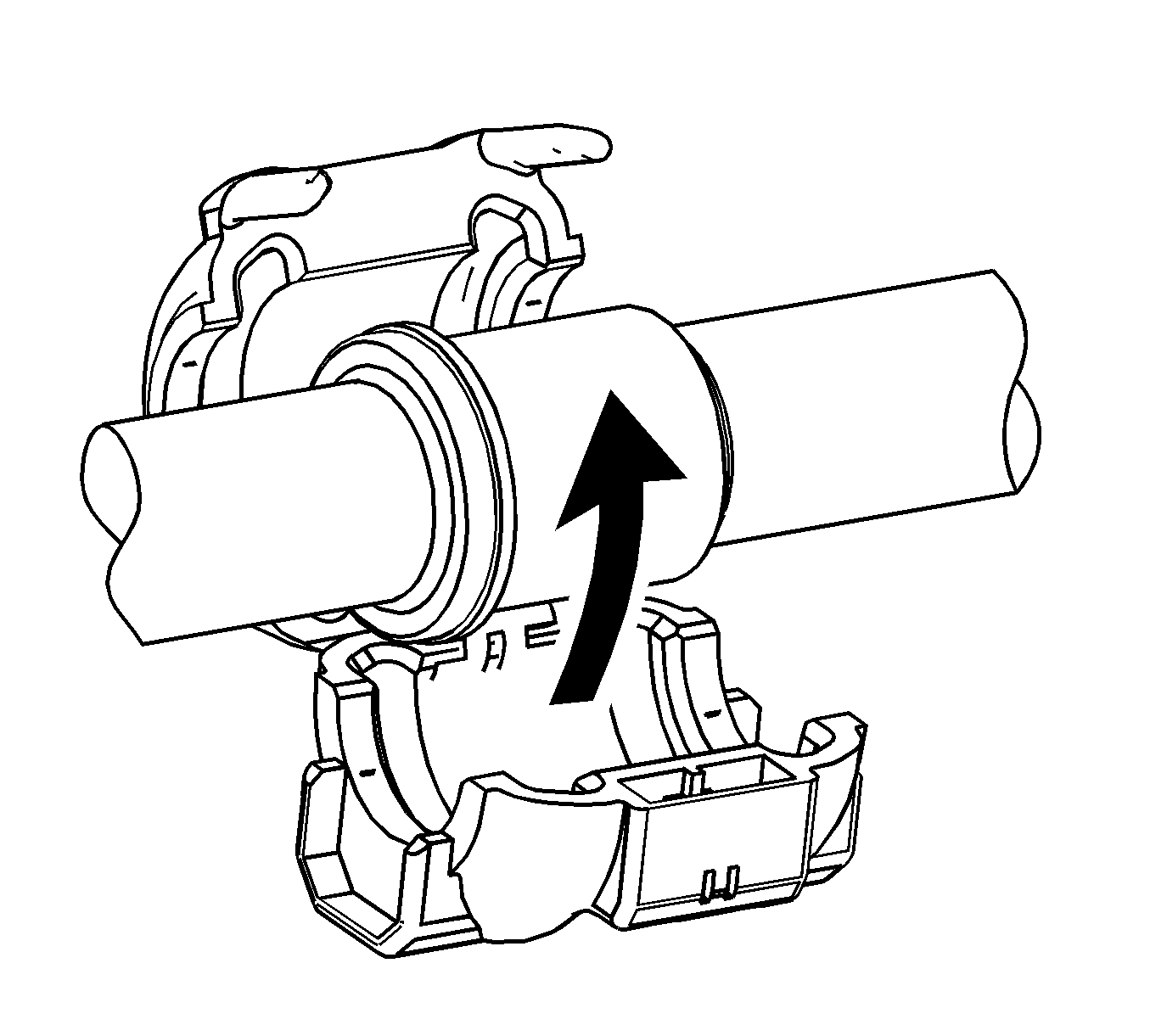

    Fig 1: View Of Quick Connect Fitting To A/C Refrigerant Component
    GM1390284Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Inspect the A/C quick connect fitting locking tab for damage or wear. Replace the A/C quick connect fitting if any conditions exist.
  1. Install the A/C quick connect fitting to the A/C refrigerant component.
    2. IMPORTANT: Ensure that the A/C quick connect fitting is latched securely to the A/C refrigerant component.
  2. Close the A/C quick connect fitting.
  3. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  4. Leak test the fittings of the component using J 39400-A  . See Special Tools .
