Driver Information Display Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

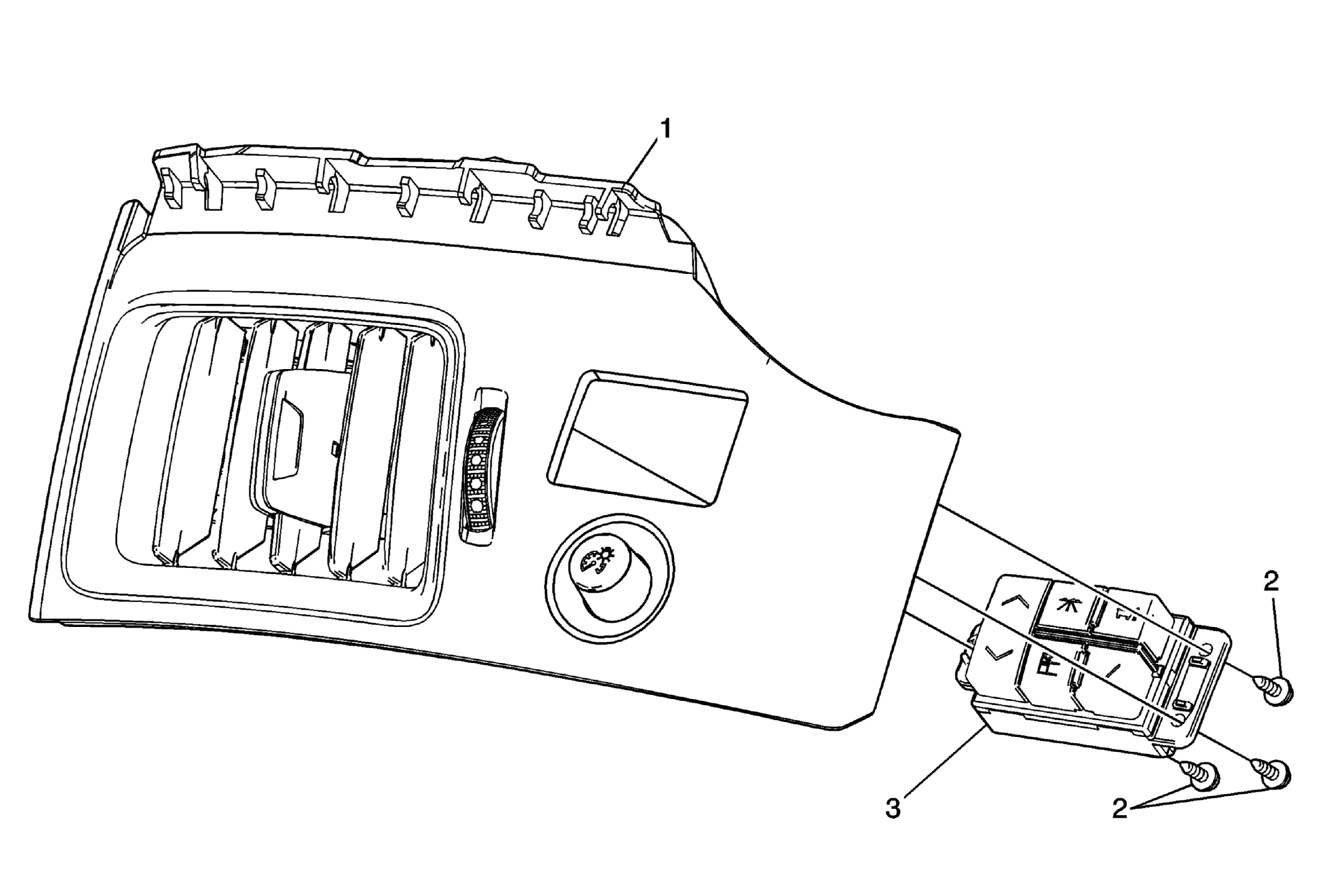

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Outer Air Outlet Deflector Assembly Refer to Instrument Panel Outer Air Outlet Deflector Replacement - Left Side . |
| 2 | Drivers Information Display Switch Screw (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 1 N.m (9 lb in) |
| 3 | Drivers Information Display Switch Assembly |
