Steering Wheel Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

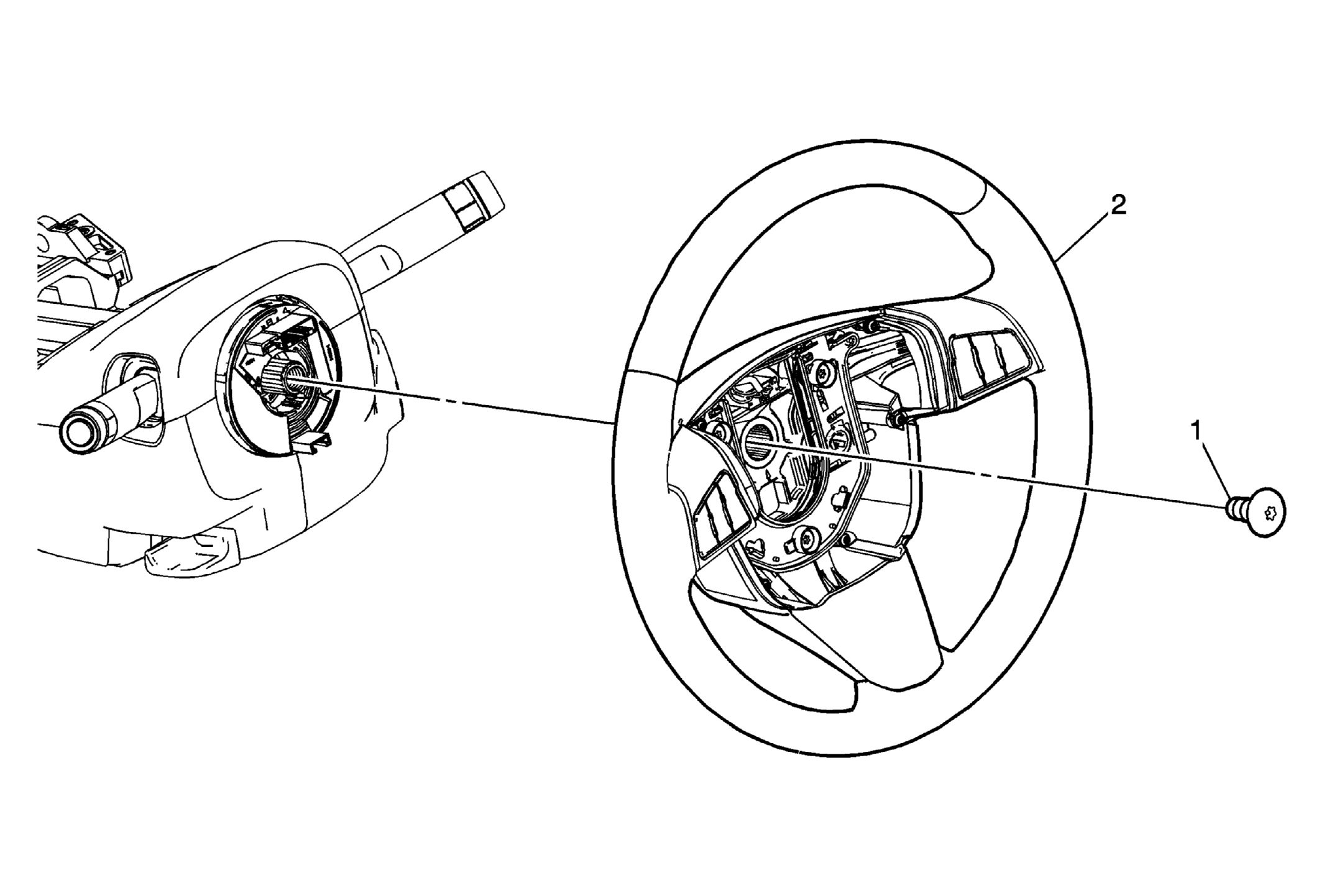

Fig 1: Steering Wheel Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Bolt NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Steering Wheel Procedure Disconnect all electrical connectors as needed. Remove the steering wheel.

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .

Steering Wheel Bolt

NOTE: Refer to Fastener Notice .

Tighten: 50 N.m (37 lb ft)

Steering Wheel

Procedure

Disconnect all electrical connectors as needed.
Remove the steering wheel.
