Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Secure the steering wheel utilizing a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:
  • The steering column
  • The intermediate shaft
  • The steering gear

After disconnecting these components, do not move the front tires and wheels. Failure to follow these procedures may cause improper alignment of some components during installation and result in possible damage to the SIR coil.
  1. Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement .
  2. Disconnect all electrical connectors as needed.
    3. Fig 1: View of Steering Shaft and Bolt
    GM1853881Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper intermediate steering shaft bolt (1) and separate the upper intermediate steering shaft (2) from the steering column. Do not pull the intermediate steering shaft lower seal (3) from its place.

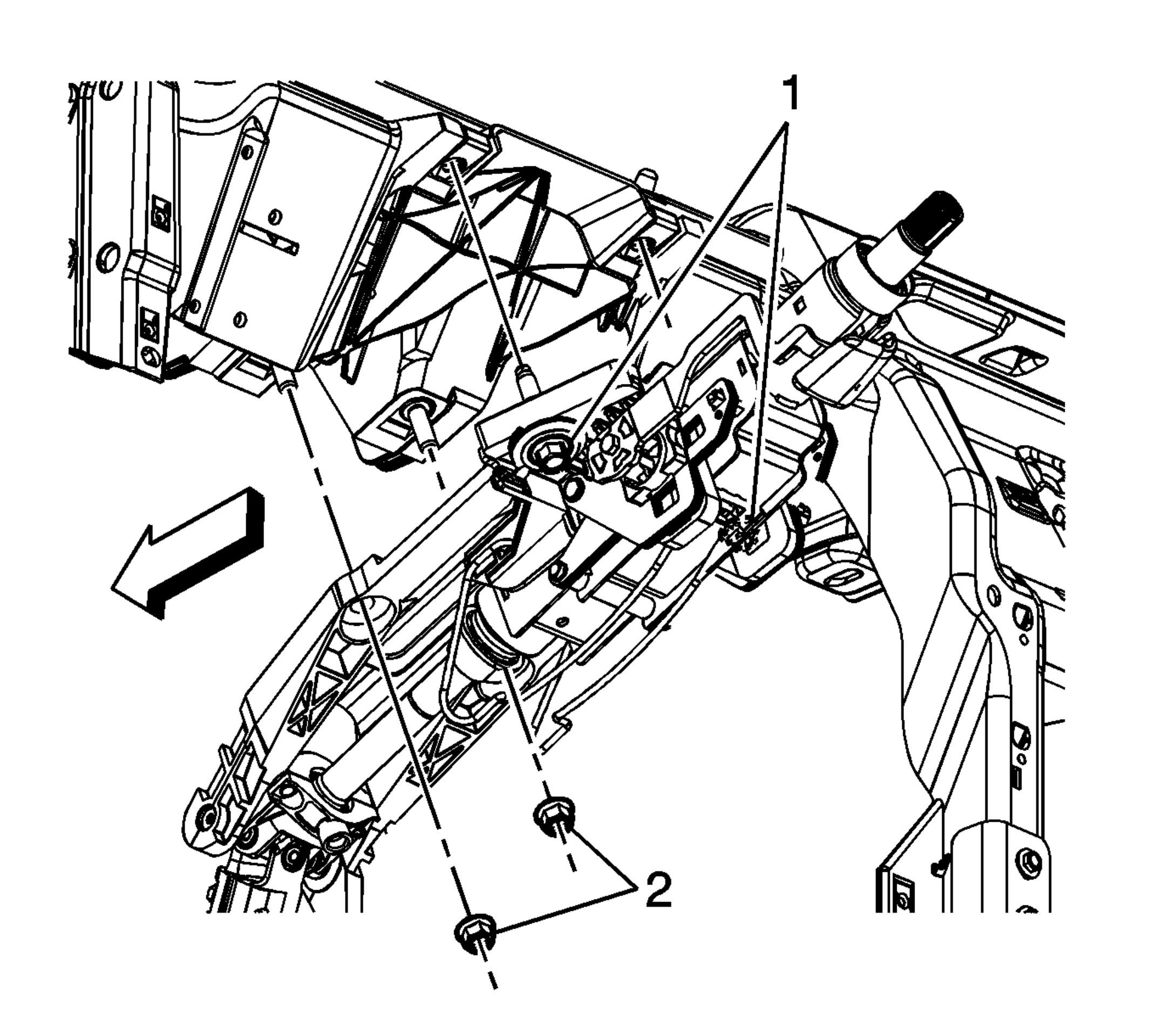

    4. Fig 2: View of Steering Column, Nuts and Bolts
    GM1860684Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering column nuts (2) and the steering column bolts (1).
  5. Remove the steering column from the vehicle.
  6. Transfer any parts as needed.
