Steering Angle Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

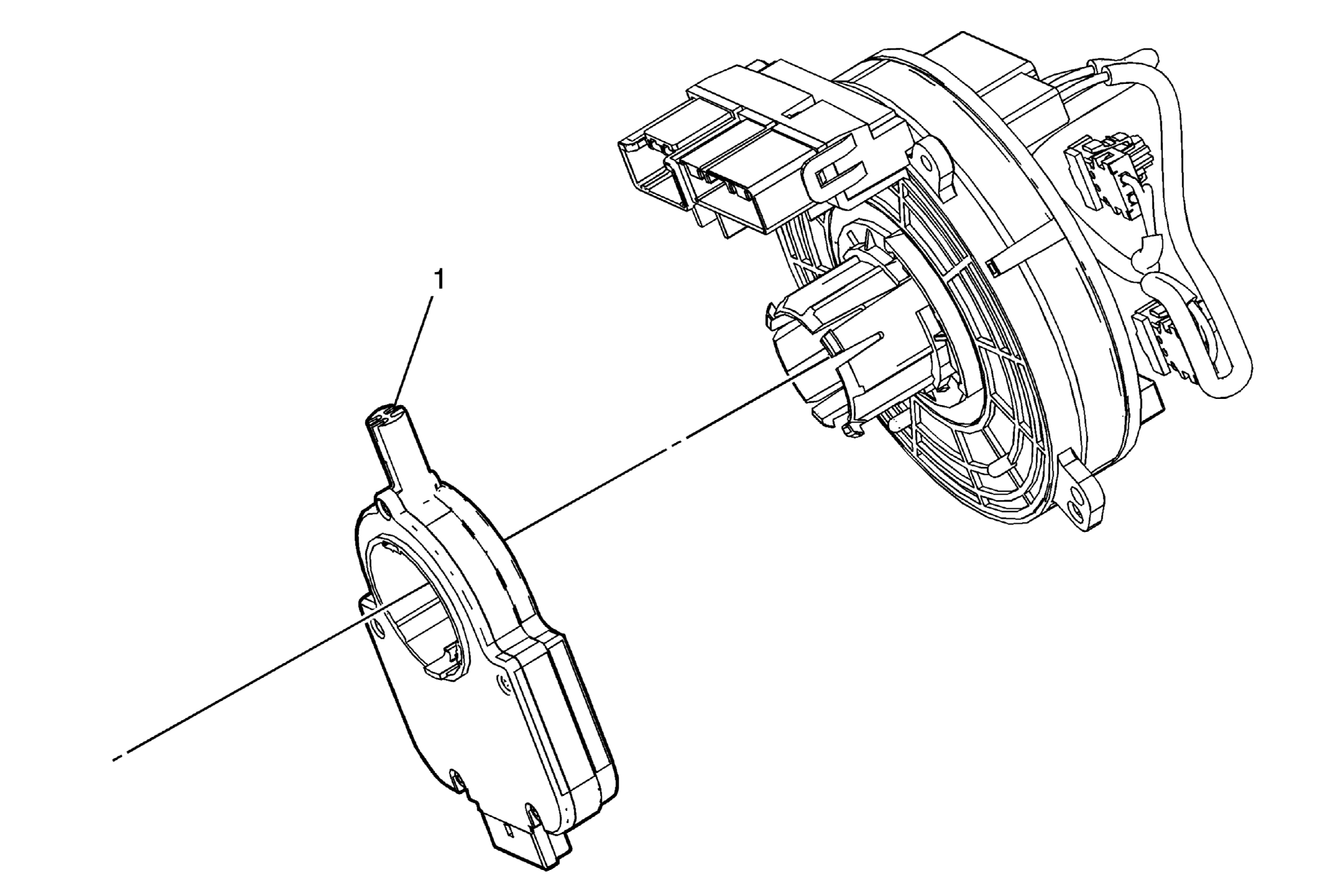

Fig 1: Steering Angle Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Replacement .
1	Steering Angle Sensor Procedure Disconnect any electrical connectors as needed. Squeeze the plastic retaining tabs on the supplemental inflatable restraint steering wheel module coil to release and disengage the steering angle sensor.

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Replacement .

Steering Angle Sensor

Procedure

Disconnect any electrical connectors as needed.
Squeeze the plastic retaining tabs on the supplemental inflatable restraint steering wheel module coil to release and disengage the steering angle sensor.
