Deployment Inside Vehicle (Vehicle Scrapping Procedure)

Deploy the inflator modules inside of the vehicle when destroying the vehicle or when salvaging the vehicle for parts. This includes but is not limited to the following situations:

• The vehicle has completed its useful life.
• Irreparable damage occurs to the vehicle in a non-deployment type accident.
• Irreparable damage occurs to the vehicle during a theft.
• The vehicle is being salvaged for parts to be used on a vehicle with a different VIN as opposed to rebuilding as the same VIN.

1. Turn the ignition switch to the OFF position.
2. Remove the ignition key.
3. Put on safety glasses.
4. Remove all loose objects from the front seats.
5. Disable the SIR system. Refer to SIR Disabling and Enabling .
Fig 1: Identifying I/P Module Connector To Vehicle Harness Connector (LH Side I/P)
Courtesy of GENERAL MOTORS CORP.
CAUTION: A deployed dual stage inflator module will look the same whether one or both stages were used. Always assume a deployed dual stage inflator module has an active stage 2. Improper handling or servicing can activate the inflator module and cause personal injury.
6. Disconnect the steering wheel module yellow connector (1) from vehicle harness yellow connector (3).
IMPORTANT: If vehicle is equipped with dual stage air bags the steering wheel module and I/P module will each have 4 wires. Refer to Component Connector End Views for determining high and low circuits.
7. Cut the yellow harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
8. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
Fig 2: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
9. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. Use these wires to fabricate the driver deployment harness.
10. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
11. Twist together one end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the inflator module.
Fig 3: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
12. Twist together 2 connector wire leads (the high circuits from both stages of the steering wheel module) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
13. Inspect that the 3 wire connection is secure.
Fig 4: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
14. Bend flat the twisted connection.
Fig 5: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
15. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
Fig 6: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
16. Twist together 2 connector wire leads (the low circuits from both stages of the steering wheel module) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
17. Inspect that the 3 wire connection is secure.
Fig 7: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
18. Bend flat the twisted connection.
Fig 8: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
19. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
20. Connect the deployment harness to the steering wheel module in-line connector.
Fig 9: Routing Deployment Harness Out Of Driver Side Of Vehicle
Courtesy of GENERAL MOTORS CORP.
21. Route the deployment harness out of the driver side of the vehicle.
Fig 10: Locating RF Side Impact Module & Pretensioner Yellow Connector
Courtesy of GENERAL MOTORS CORP.
22. Disconnect the driver side air bag/pretensioner yellow connector (1) from the vehicle wiring harness located under the front of driver seat.
Fig 11: Stripping SIR Wires
Courtesy of GENERAL MOTORS CORP.
23. Cut the 4 SIR wires (2 for side air bag and 2 for pretensioner) leading to the yellow harness connector from the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
24. Strip 13 mm (0.5 in) of insulation from all 4 SIR wires connector leads (2 for side air bag and 2 for pretensioner).
Fig 12: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
25. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. Use these wires to fabricate the deployment harness.
26. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
27. Twist together one end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the side air bag module and pretensioner.
Fig 13: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
28. Twist together 2 connector wire leads (the high circuits from side air bag and pretensioner ) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
29. Inspect that the 3 wire connection is secure.
Fig 14: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
30. Bend flat the twisted connection.
Fig 15: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
31. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
Fig 16: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
32. Twist together 2 connector wire leads (the low circuits from side air bag and pretensioner ) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
33. Inspect that the 3 wire connection is secure.
Fig 17: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
34. Bend flat the twisted connection.
Fig 18: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
35. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
36. Connect the deployment harness to the driver side air bag/pretensioner yellow connector.
Fig 19: Routing Deployment Harness Out Driver Side Window
Courtesy of GENERAL MOTORS CORP.
37. Route the deployment harness out of the driver side of the vehicle.

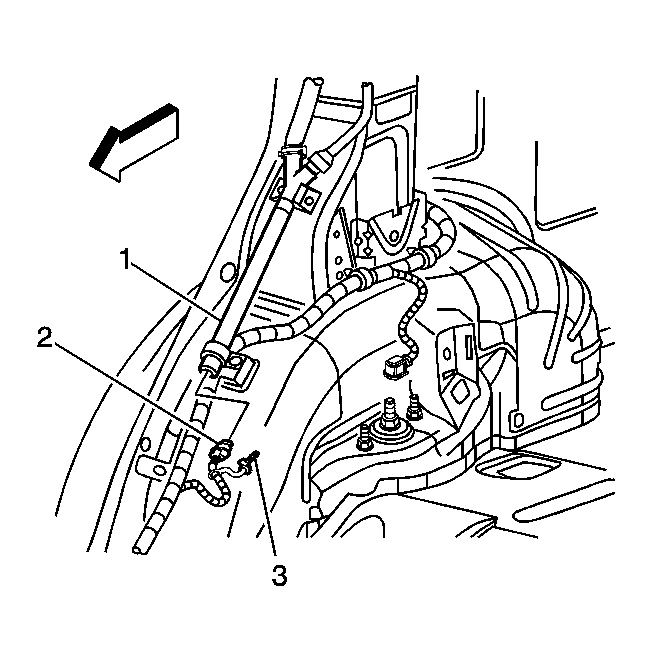

Fig 20: View Of Left Roof Rail Module, Yellow Connector & CPA
Courtesy of GENERAL MOTORS CORP.
38. Disconnect the vehicle yellow harness connector (2) from the left/driver roof rail module (1).
Fig 21: Identifying Proper Stripping Of Connection Wire Leads
Courtesy of GENERAL MOTORS CORP.
39. Cut the harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
40. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
Fig 22: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
41. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used to fabricate the roof rail air bag deployment harness.
42. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
43. Twist together one end from each of the wires in order to short the wires.
Fig 23: View Of Proper Twisting Of Connector Wire Lead To Deployment Wire
Courtesy of GENERAL MOTORS CORP.
44. Twist together one connector wire lead to one deployment wire.
Fig 24: Bending Twisted Connection Flat & Insulating With Tape
Courtesy of GENERAL MOTORS CORP.
45. Bend flat the twisted connection.
46. Secure and insulate the connection using electrical tape.
Fig 25: Taping Remaining Connector Wire Lead To Remaining Deployment Wire
Courtesy of GENERAL MOTORS CORP.
47. Twist together, bend, and tape the remaining connector wire lead to the remaining deployment wire.
48. Connect the deployment harness to the roof rail module yellow connector.
Fig 26: View Of Driver Side Deployment Harness Routing
Courtesy of GENERAL MOTORS CORP.
49. Route the deployment harness out of the driver side of the vehicle.
Fig 27: Identifying I/P Module Connector To Vehicle Harness Connector
Courtesy of GENERAL MOTORS CORP.
50. Disconnect the I/P module yellow harness connector (1) from the vehicle harness connector (2).
Fig 28: Stripping SIR Wires
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: If vehicle is equipped with dual stage air bags the I/P module will each have 4 wires. Refer to Component Connector End Views for determining high and low circuits.
51. Cut the yellow harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
52. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
Fig 29: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
53. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used to fabricate the passenger deployment harness.
54. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
55. Twist together one end from each of the wires in order to short the wires.
Fig 30: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
56. Twist together 2 connector wire leads (the high circuits from both stages of the I/P module) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
57. Inspect that the 3 wire connection is secure.
Fig 31: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
58. Bend flat the twisted connection.
Fig 32: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
59. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
Fig 33: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
60. Twist together 2 connector wire leads (the low circuits from both stages of the I/P module) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
61. Inspect that the 3 wire connection is secure.
Fig 34: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
62. Bend flat the twisted connection.
Fig 35: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
63. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
64. Connect the deployment harness to the I/P module in-line connector.
Fig 36: Routing Deployment Harness Out Passenger Side Of Vehicle
Courtesy of GENERAL MOTORS CORP.
65. Route the deployment harness out of the passenger side of the vehicle.
Fig 37: Locating Side Impact Module & Pretensioner Yellow Connector
Courtesy of GENERAL MOTORS CORP.
66. Disconnect the passenger side air bag/pretensioner yellow connector (1) from the vehicle wiring harness located under the front of driver seat.
Fig 38: Stripping SIR Wires
Courtesy of GENERAL MOTORS CORP.
67. Cut the 4 SIR wires (2 for side air bag and 2 for pretensioner) leading to the yellow harness connector from the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
68. Strip 13 mm (0.5 in) of insulation from all 4 SIR wires connector leads (2 for side air bag and 2 for pretensioner).
Fig 39: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
69. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. Use these wires to fabricate the deployment harness.
70. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
71. Twist together one end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the side air bag module and pretensioner.
Fig 40: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
72. Twist together 2 connector wire leads (the high circuits from side air bag and pretensioner) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
73. Inspect that the 3 wire connection is secure.
Fig 41: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
74. Bend flat the twisted connection.
Fig 42: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
75. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
Fig 43: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
76. Twist together 2 connector wire leads (the low circuits from side air bag and pretensioner) to one sets of deployment wires. Refer to Component Connector End Views in order to determine the correct circuits.
77. Inspect that the 3 wire connection is secure.
Fig 44: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
78. Bend flat the twisted connection.
Fig 45: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
79. Secure and insulate the 3 wire connection to deployment harness using electrical tape.
80. Connect the deployment harness to the passenger side air bag/pretensioner yellow connector.
Fig 46: Routing Deployment Harness Out Passenger Side Window
Courtesy of GENERAL MOTORS CORP.
81. Route the deployment harness out of the passenger side of the vehicle.

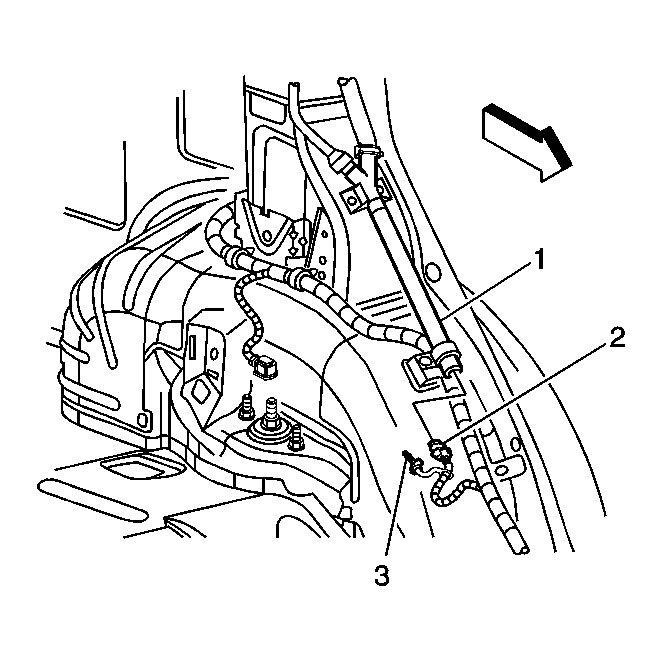

Fig 47: View Of Right Roof Rail Module, Yellow Connector & CPA
Courtesy of GENERAL MOTORS CORP.
82. Disconnect the vehicle yellow harness connector (3) from the right/passenger roof rail air bag (1).
Fig 48: Identifying Proper Stripping Of Connection Wire Leads
Courtesy of GENERAL MOTORS CORP.
83. Cut the harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
84. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
Fig 49: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
85. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used to fabricate the roof rail air bag deployment harness.
86. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
87. Twist together one end from each of the wires in order to short the wires.
Fig 50: View Of Proper Twisting Of Connector Wire Lead To Deployment Wire
Courtesy of GENERAL MOTORS CORP.
88. Twist together one connector wire lead to one deployment wire.
Fig 51: Bending Twisted Connection Flat & Insulating With Tape
Courtesy of GENERAL MOTORS CORP.
89. Bend flat the twisted connection.
90. Secure and insulate the connection using electrical tape.
Fig 52: Taping Remaining Connector Wire Lead To Remaining Deployment Wire
Courtesy of GENERAL MOTORS CORP.
91. Twist together, bend, and tape the remaining connector wire lead to the remaining deployment wire.
92. Connect the deployment harness to the roof rail module yellow connector.
Fig 53: View Of Passenger Side Deployment Harness Routing
Courtesy of GENERAL MOTORS CORP.
93. Route the deployment harness out of the passenger side of the vehicle.
Fig 54: Deploying Passenger Side Inflator Modules
Courtesy of GENERAL MOTORS CORP.
94. Completely cover the windshield and front door window openings with a drop cloth.
95. Stretch out all of the deployment harness wires on the right side of the vehicle to their full length.
96. Deploy each deployment loop one at a time.
97. Place a power source, 12 V minimum/2 A minimum (i.e., a vehicle battery) near the shorted end of the harnesses.
98. Separate the one set of wires and touch the wires ends to the power source in order to deploy the inflator modules, doing one module at a time.
99. Disconnect the deployment harness from the power source and twist the wire ends together.
100. Continue the same process with the remaining deployment harnesses that are available.
Fig 55: Deploying Driver Side Inflator Modules
Courtesy of GENERAL MOTORS CORP.
101. Stretch out all of the deployment harness wires on the left side of the vehicle to their full length.
102. Deploy each deployment loop one at a time.
103. Place a power source, 12 V minimum/2 A minimum (i.e., a vehicle battery) near the shorted end of the harnesses.
104. Separate the one set of wires and touch the wires ends to the power source in order to deploy the inflator modules, doing one module at a time.
105. Disconnect the deployment harness from the power source and twist the wire ends together.
106. Continue the same process with the remaining deployment harnesses that are available.
107. Remove the drop cloth from the vehicle.
108. Disconnect all harnesses from the vehicle.
109. Discard the harnesses.
110. Scrap the vehicle in the same manner as a non-SIR equipped vehicle.
111. If one or all of the inflator modules did not deploy, perform the following steps to remove the undeployed module(s) from the vehicle:
     • Inflatable Restraint Steering Wheel Module Replacement
     • Inflatable Restraint Instrument Panel Module Replacement
     • Inflatable Restraint Side Impact Module Replacement - Front
