Instrument Panel Upper Trim Cover Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

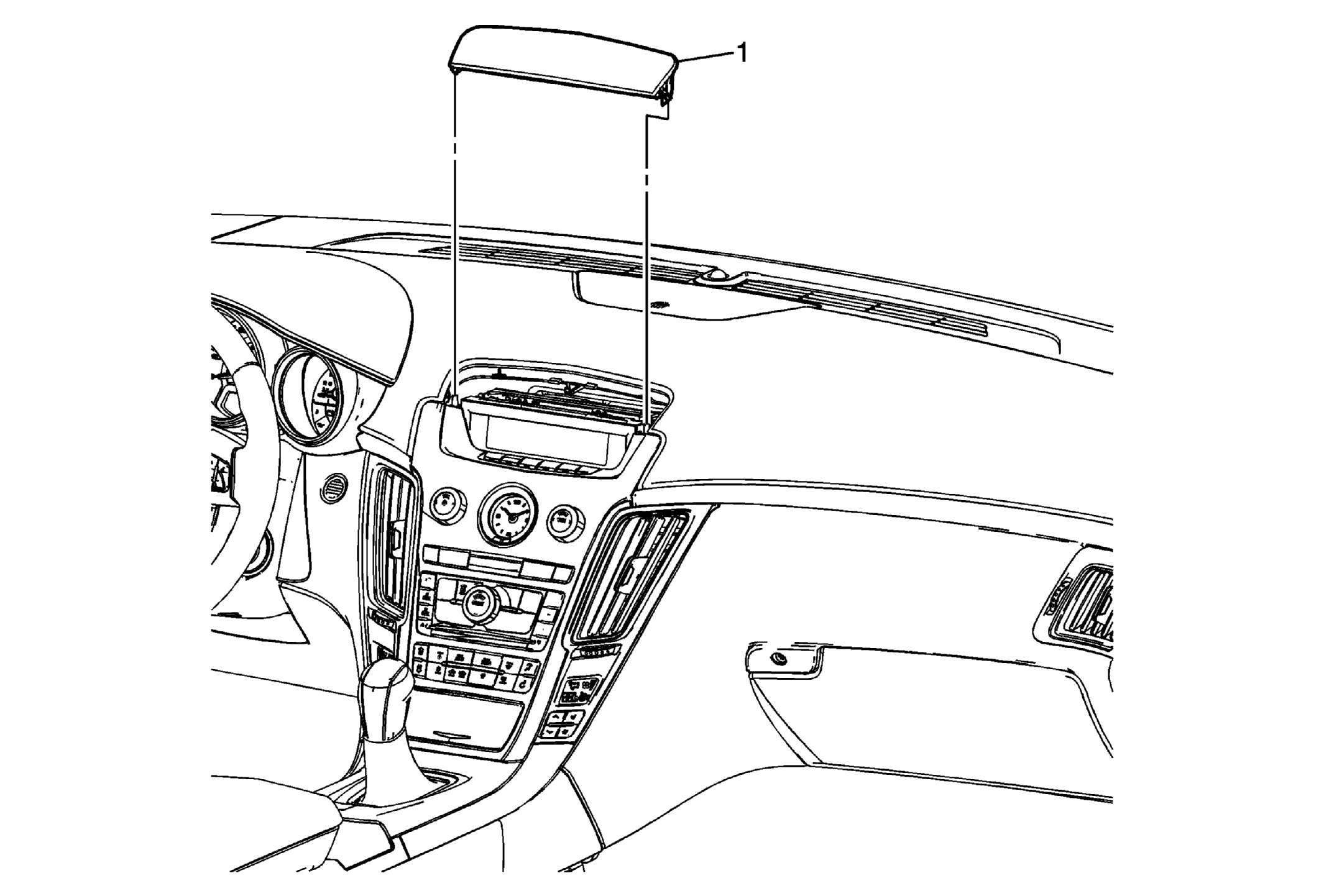

| Callout |
Component Name |
| 1 |
Instrument Panel Upper Cover
Procedure:
Use a flat bladed plastic trim tool in order to release the retainer clips securing the cover to the instrument panel. |
