Instrument Panel Compartment Door Latch Trim Cover Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

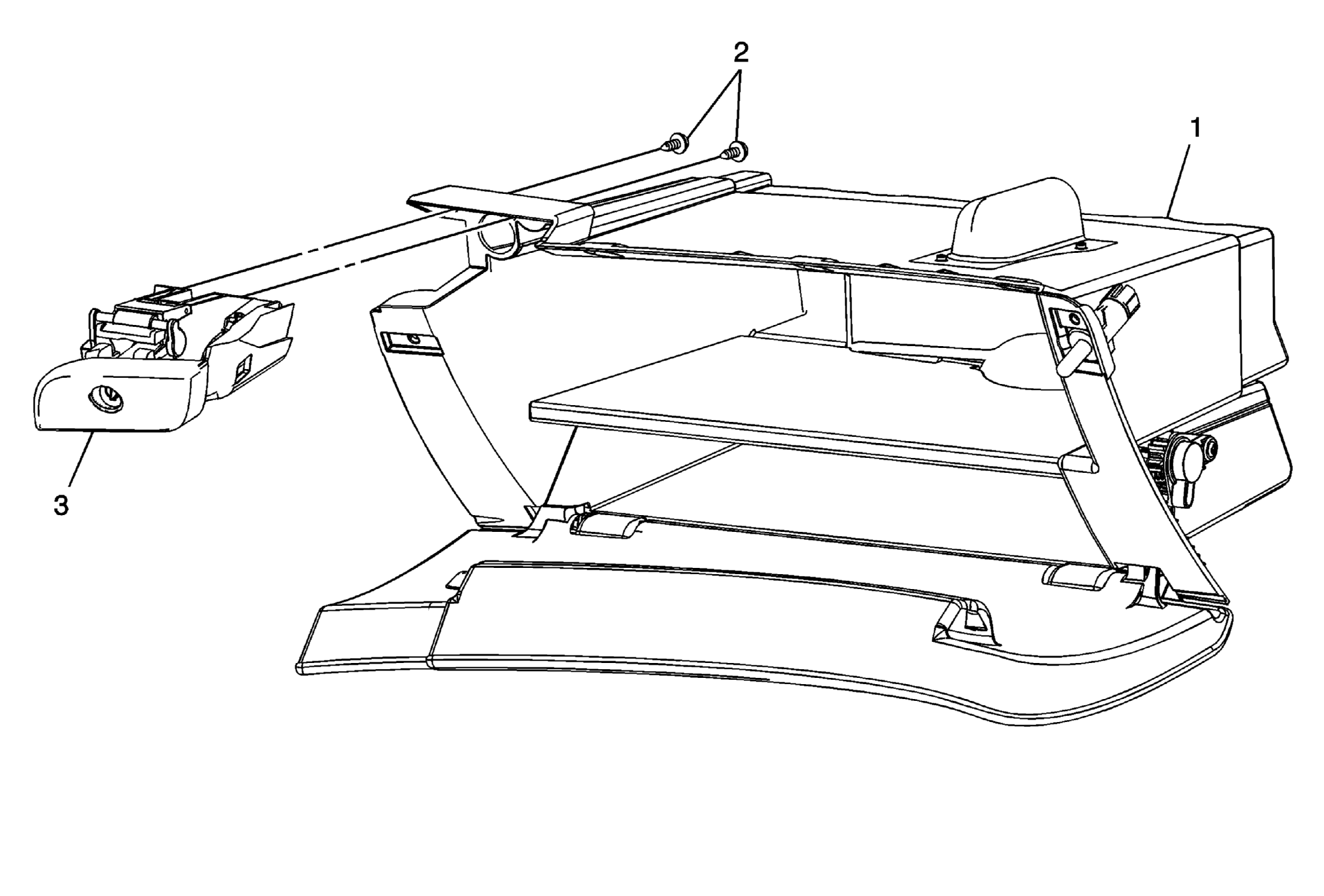

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Compartment Assembly Refer to Instrument Panel Compartment Replacement . |
| 2 | Instrument Panel Compartment Door Latch Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | Instrument Panel Compartment Door Latch Assembly |
