Instrument Panel Center Compartment Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

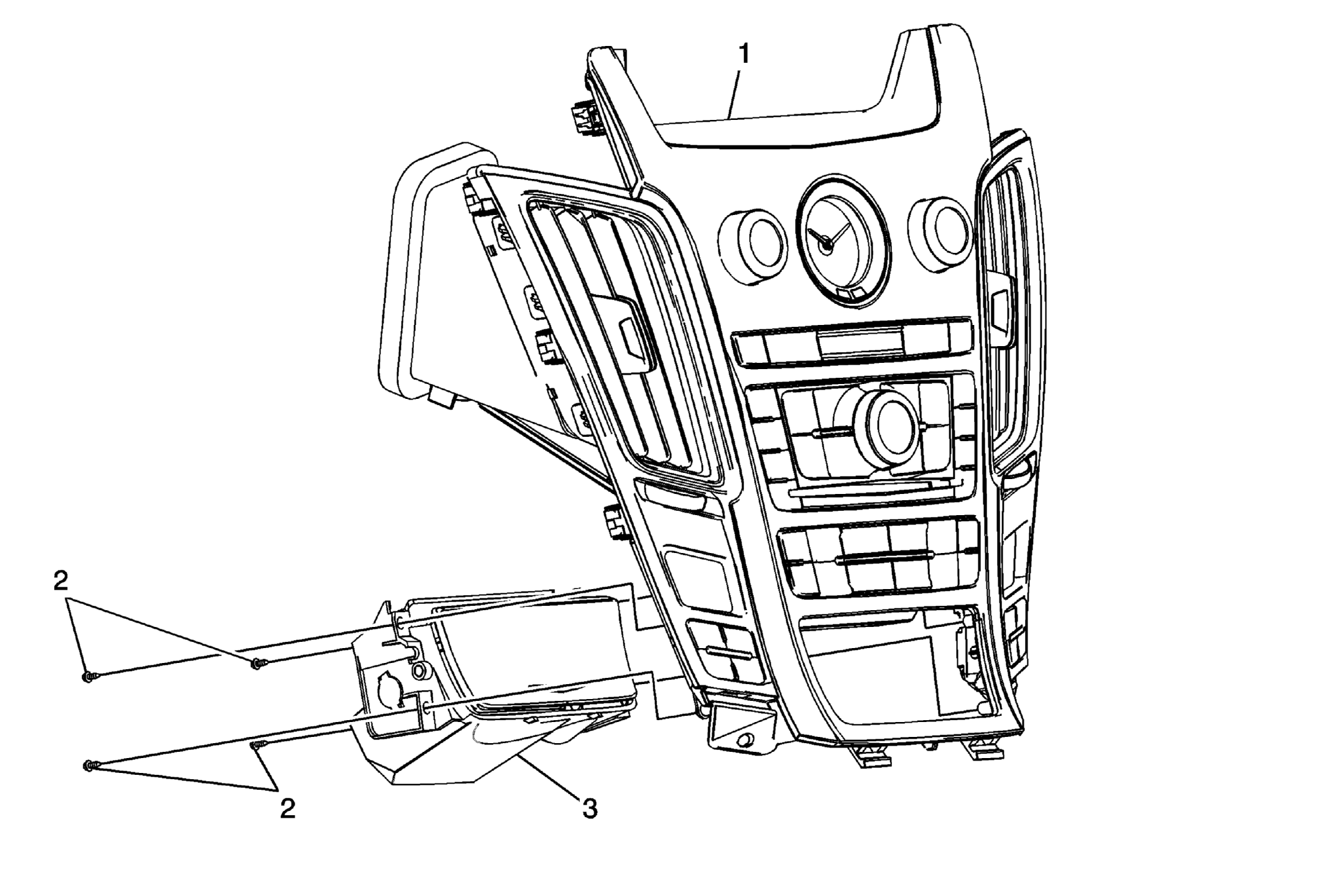

| Callout | Component Name |
|---|---|
| 1 | AM/FM Stereo, Clock, and CD Player Radio Control Assembly Refer to Radio Control Assembly Replacement (with Navigation Display) or Radio Control Assembly Replacement (without Navigation Display) . |
| 2 | Instrument Panel Center Compartment Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 1 N.m (9 lb in) |
| 3 | Instrument Panel Center Compartment Assembly |
