Rear Seat Shoulder Belt Opening Bezel Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

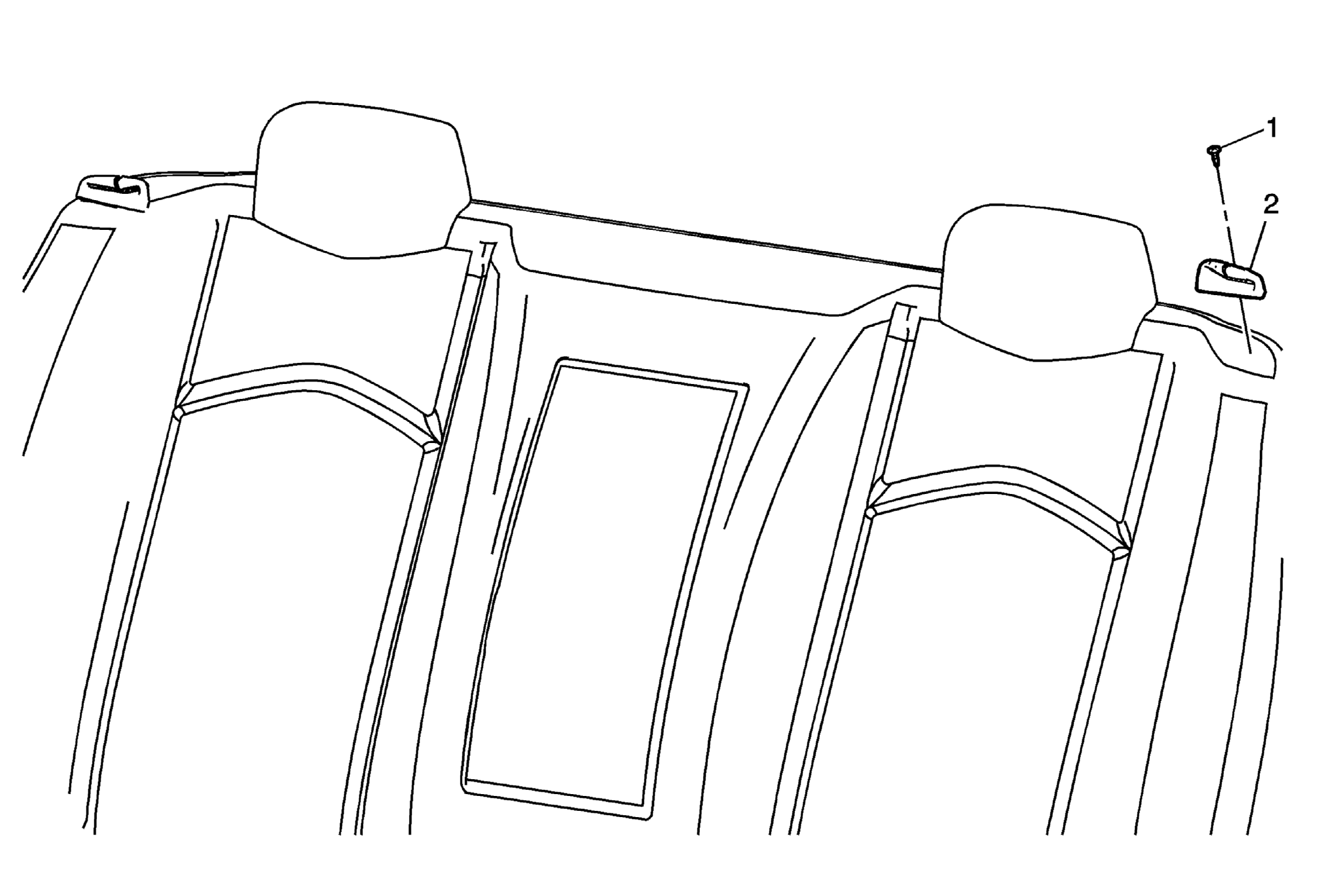

Fig 1: Rear Seat Shoulder Belt Opening Bezel Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Shoulder Belt Opening Bezel Screw NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Rear Seat Shoulder Belt Opening Bezel
