Rear Seat Head Restraint Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

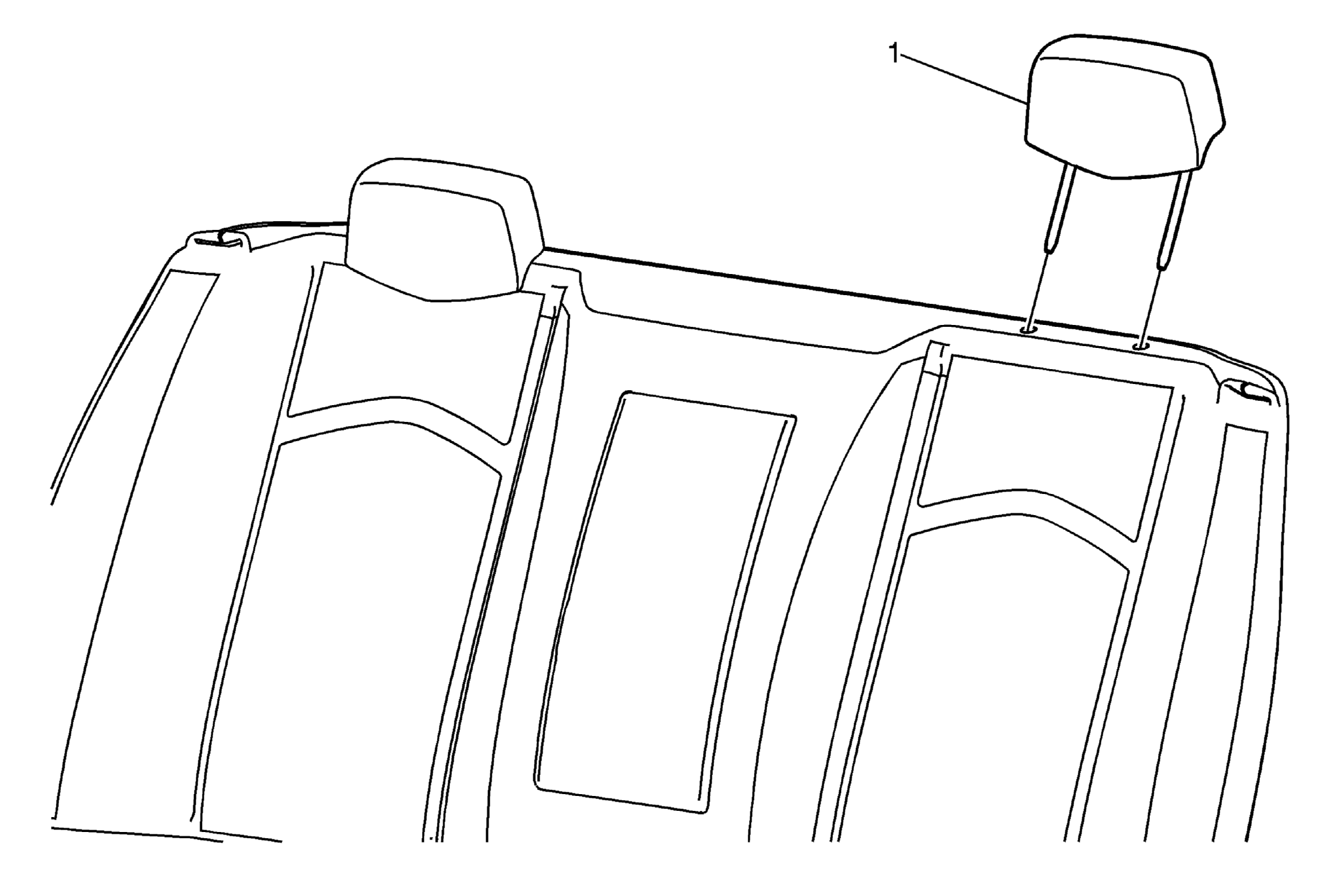

Fig 1: Rear Seat Head Restraint Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat back. Refer to Rear Seat Back Replacement .
1	Rear Seat Head Restraint (Qty: 2) Procedure Reach up underneath the head restraint from the front side and push the seat back cushion cover downward around the head restraint enough to feel the top portion of the guide. Press the release on both of the head restraint guides to release the head restraint from the guide. Pull the head restraint upward to remove. Tip: The head restraint guide can be seen and released if the rear of the seat back trim is loosened or removed.

Callout

Component Name

Preliminary Procedure:
Remove the rear seat back. Refer to Rear Seat Back Replacement .

Rear Seat Head Restraint (Qty: 2)

Procedure

Reach up underneath the head restraint from the front side and push the seat back cushion cover downward around the head restraint enough to feel the top portion of the guide.
Press the release on both of the head restraint guides to release the head restraint from the guide.
Pull the head restraint upward to remove.

Tip: The head restraint guide can be seen and released if the rear of the seat back trim is loosened or removed.
