Rear Seat Back Cushion Lock Replacement (with AM9)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

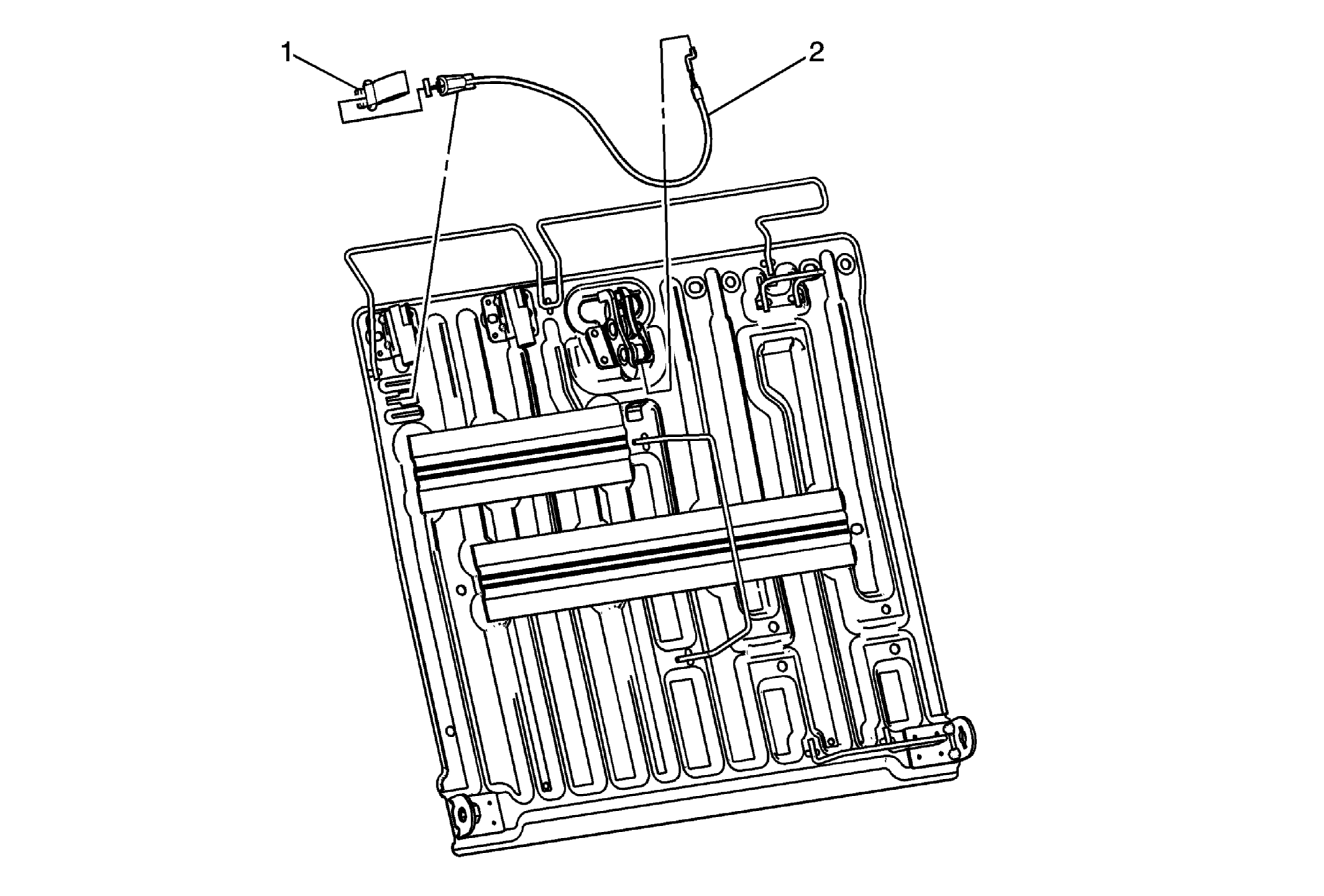

Fig 1: Rear Seat Back Cushion Lock Replacement (with AM9)
GM1970206Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Replacement .
  2. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (with AM9)  or Rear Seat Back Cushion Cover and Pad Replacement (without AM9)  or Rear Seat Back Cushion Cover and Pad Replacement (Side with AM9) .
1 Rear Seat Back Pull Strap
Procedure:
Disengage the pull strap from the end of the lock cable.
2 Rear Seat Back Cushion Lock Assembly
