Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

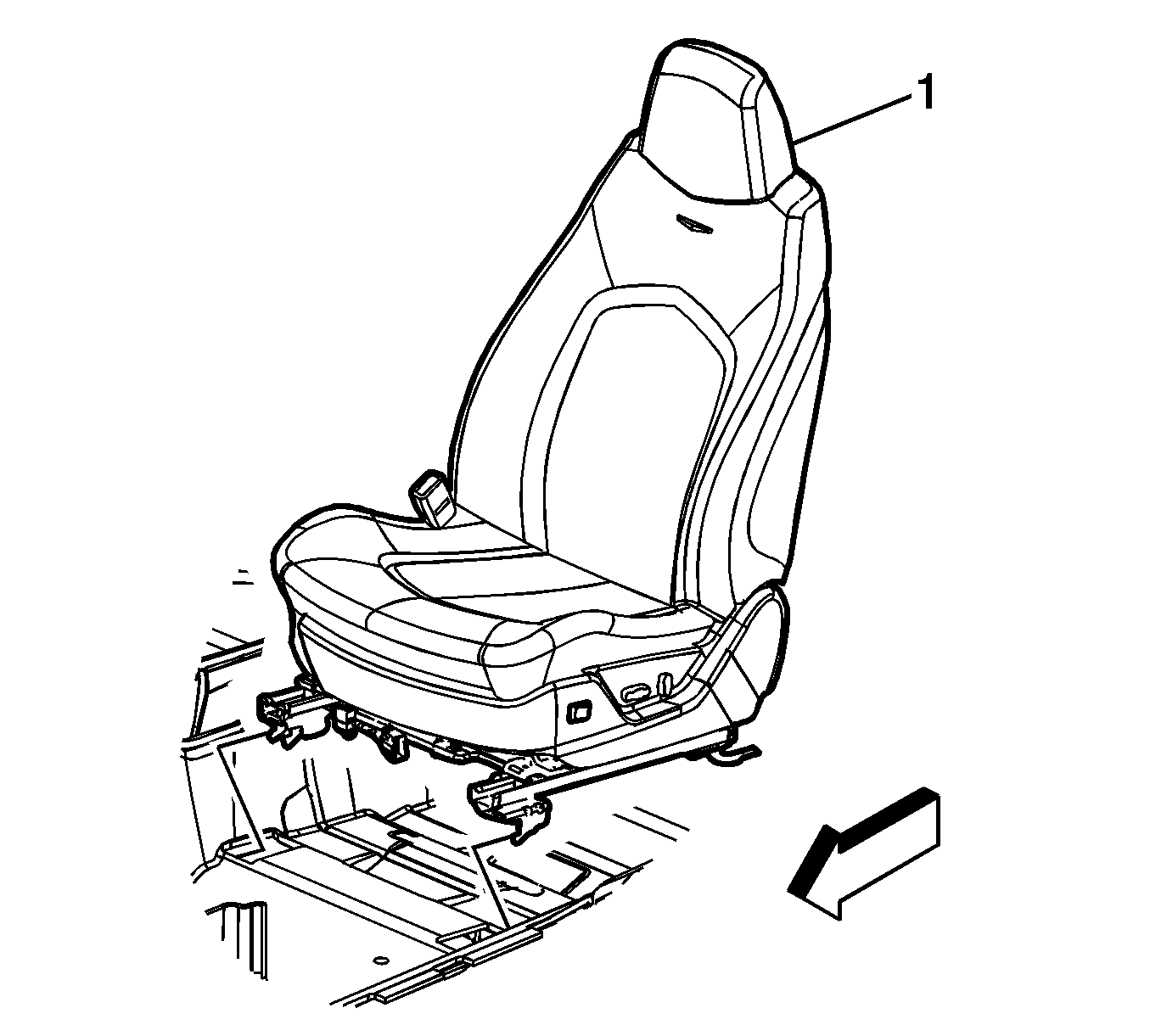

Fig 1: View of Bucket Seat and Track Assembly

Courtesy of GENERAL MOTORS CORP.

With the aid of an assistant, install the seat (1) into the vehicle.
Insert the front tabs on the seat track into the floor.
Connect the electrical connectors (1).

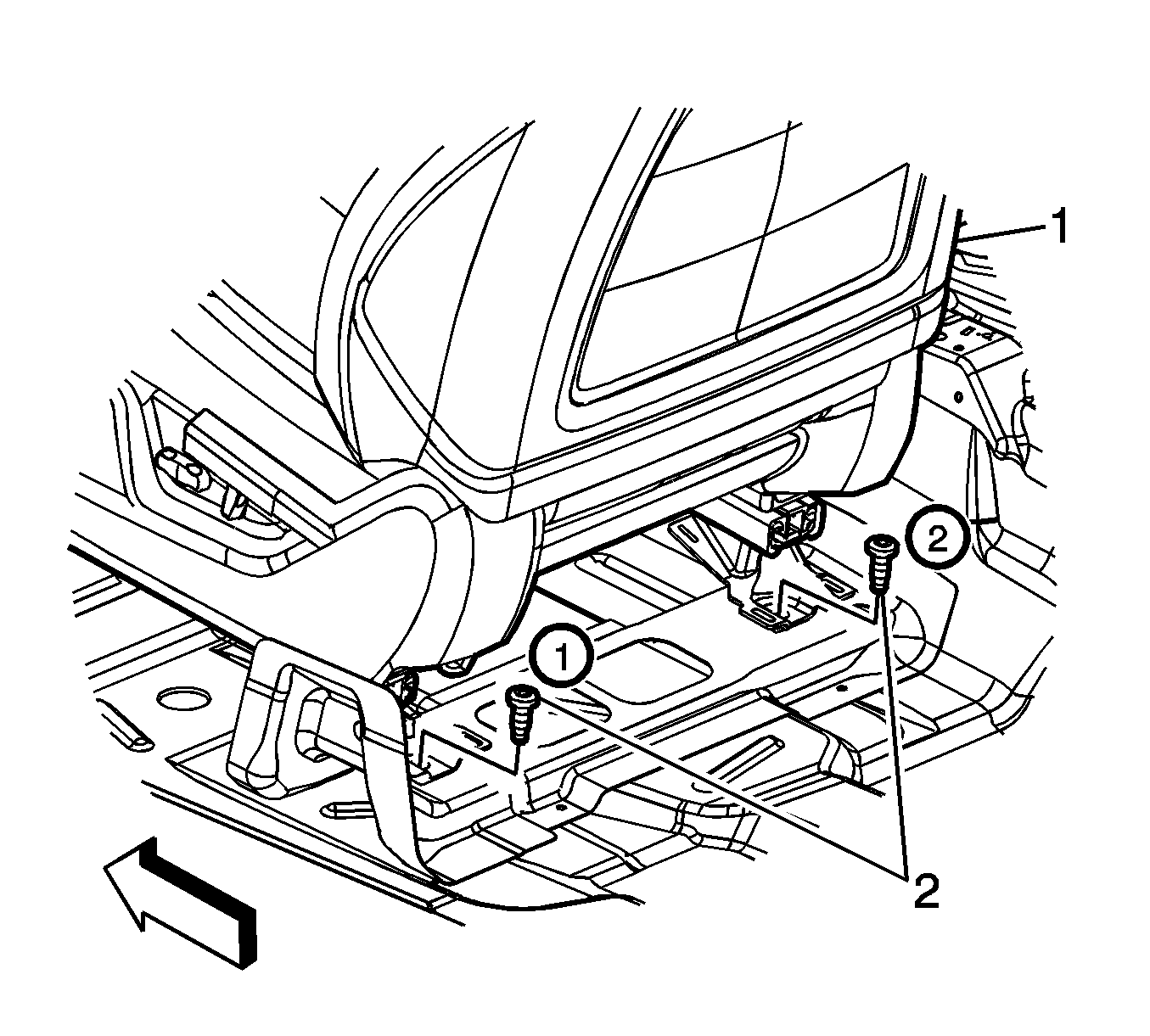

Fig 2: Identifying Bucket Seat and Track Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the seat track bolts (2).
Tighten: Tighten the seat track bolts to 30 N.m (22 lb ft).

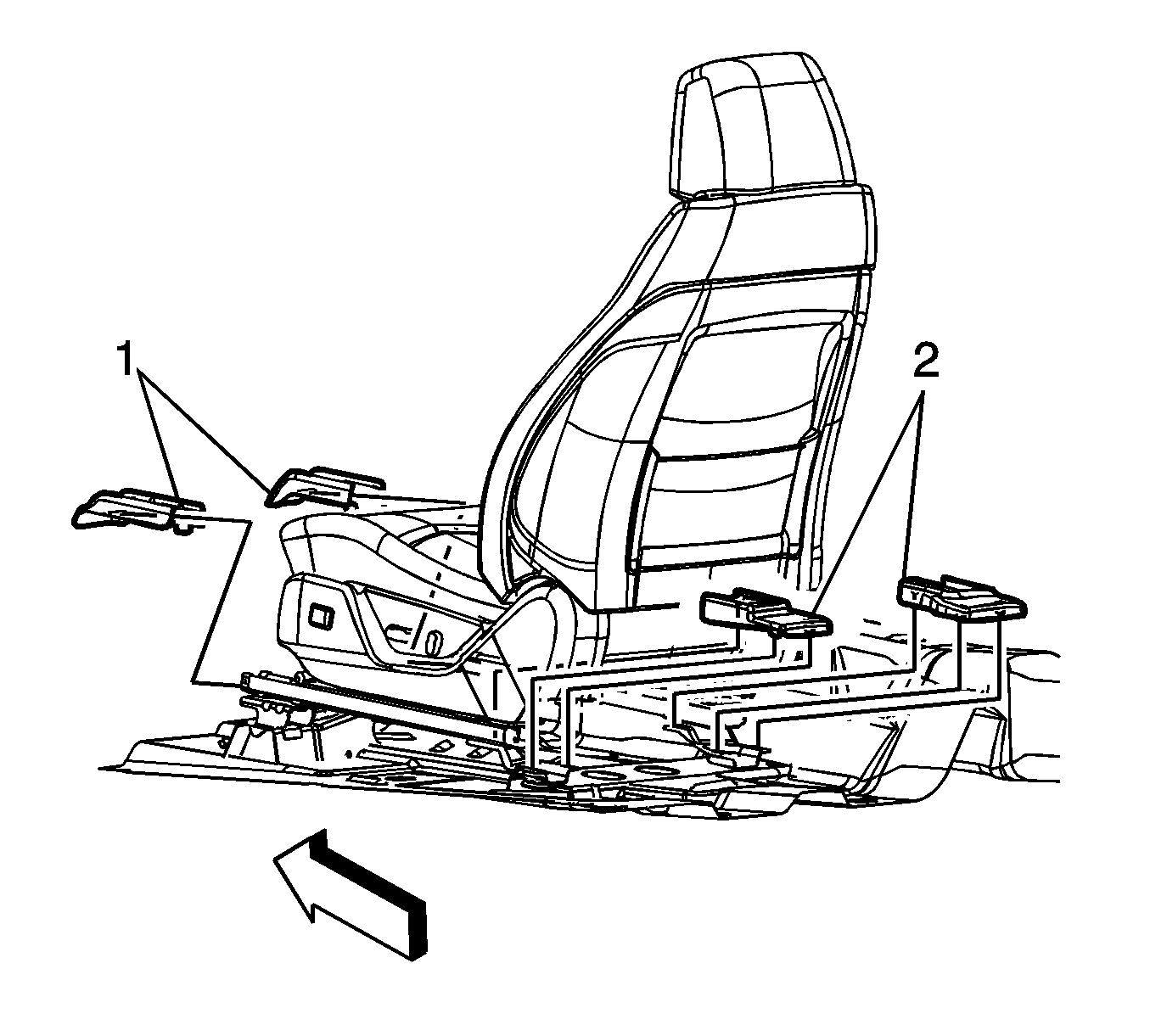

Fig 3: Identifying Bucket Seat and Track Assembly

Courtesy of GENERAL MOTORS CORP.

Install the seat track trim covers (1).
Install the seat belt anchor into the seat. Refer to Seat Belt Retractor Pretensioner Replacement - Front .

Fig 4: View of Bucket Seat and Belt Assembly

Courtesy of GENERAL MOTORS CORP.

Install the seat belt anchor trim cover (1).
Enable the SIR. Refer to SIR Disabling and Enabling .
