Front Seat Head Restraint Guide Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

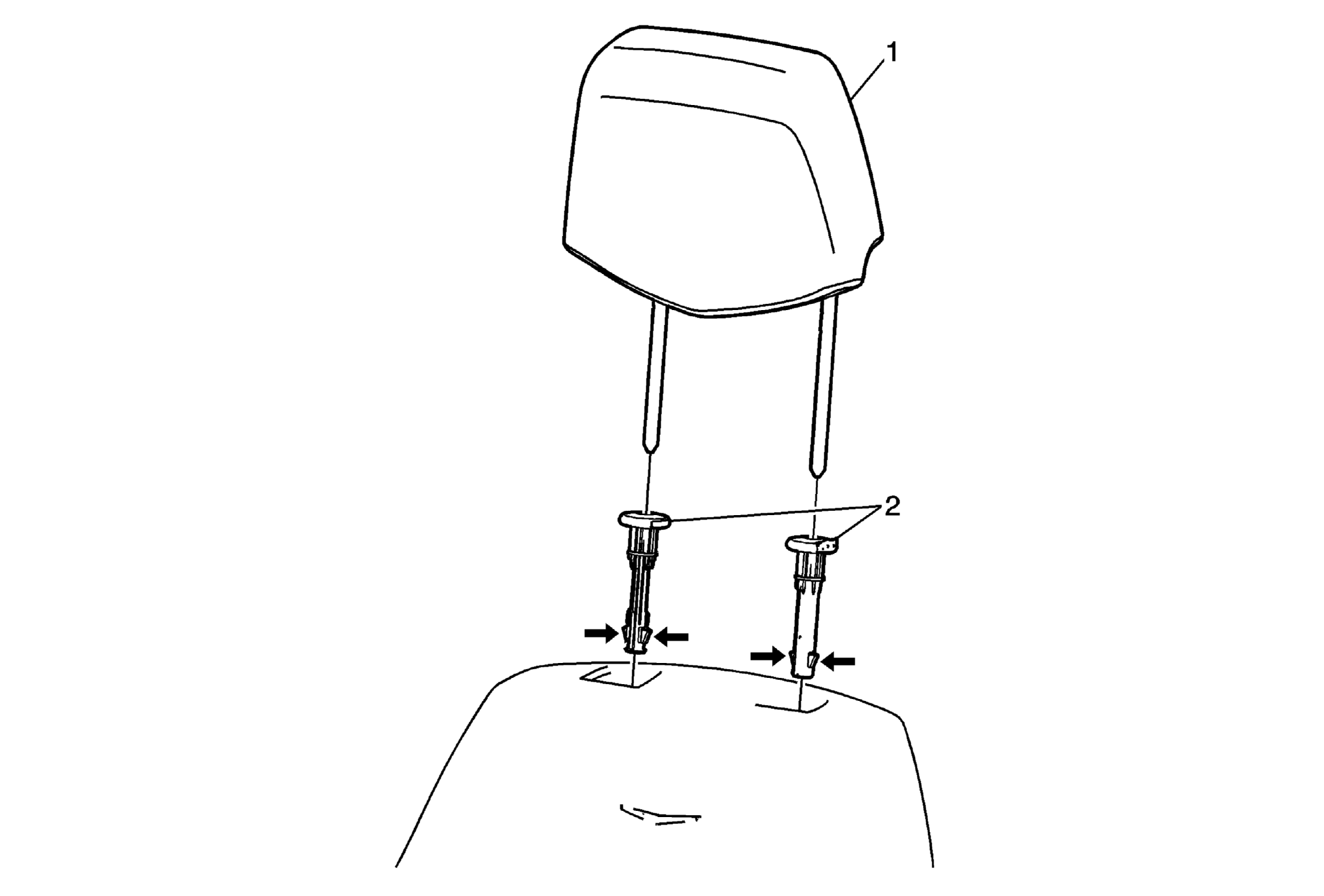

Fig 1: Front Seat Head Restraint Guide Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat back filler panel. Refer to Driver Seat and Passenger Seat Back Cushion Finish Panel Replacement .
1	Front Seat Head Restraint Procedure Depress the large button on the head restraint guide and raise the head restraint to the full up position. Depress the small button on the opposite head restraint guide and pull upward to remove from the seat.
2	Front Seat Head Restraint Guide (Qty: 2) Procedure Press inward on the tabs located at the bottom of the head restraint guides and push upward to remove. Note the location and orientation of each guide for installation purposes.

Callout

Component Name

Preliminary Procedure:
Remove the front seat back filler panel. Refer to Driver Seat and Passenger Seat Back Cushion Finish Panel Replacement .

Front Seat Head Restraint

Procedure

Depress the large button on the head restraint guide and raise the head restraint to the full up position.
Depress the small button on the opposite head restraint guide and pull upward to remove from the seat.

Front Seat Head Restraint Guide (Qty: 2)

Procedure

Press inward on the tabs located at the bottom of the head restraint guides and push upward to remove.
Note the location and orientation of each guide for installation purposes.
