Front Seat Back Frame Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

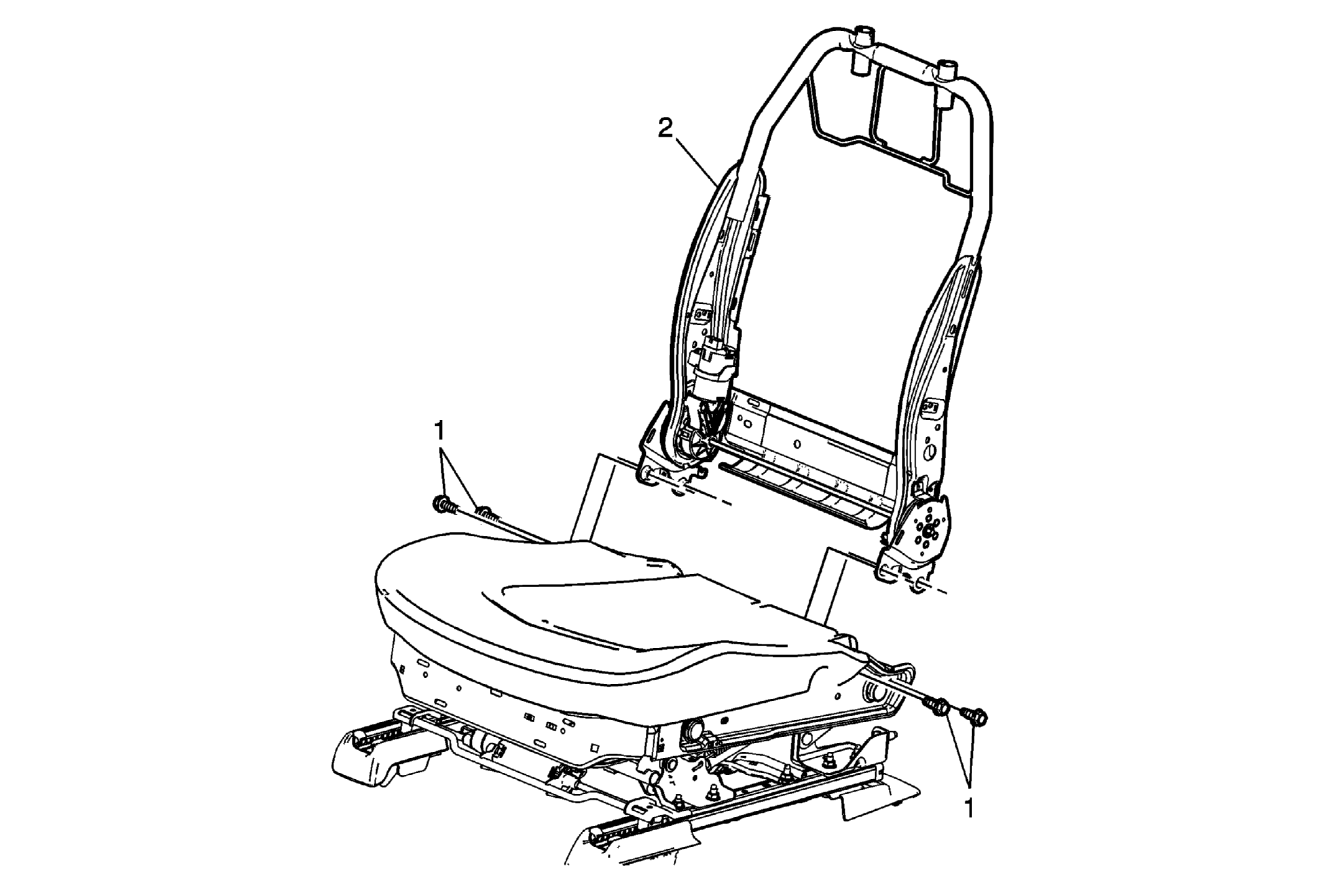

Fig 1: Front Seat Back Frame Replacement
GM1969556Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
1 Front Seat Back Cushion Frame Bolt (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  50 N.m (37 lb ft)
2 Front Seat Back Cushion Frame

Procedure

  1. Disconnect electrical connectors as needed.
  2. If replacing with a new front seat back frame, transfer components as necessary.
