Driver Seat and Passenger Seat Adjuster Track Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

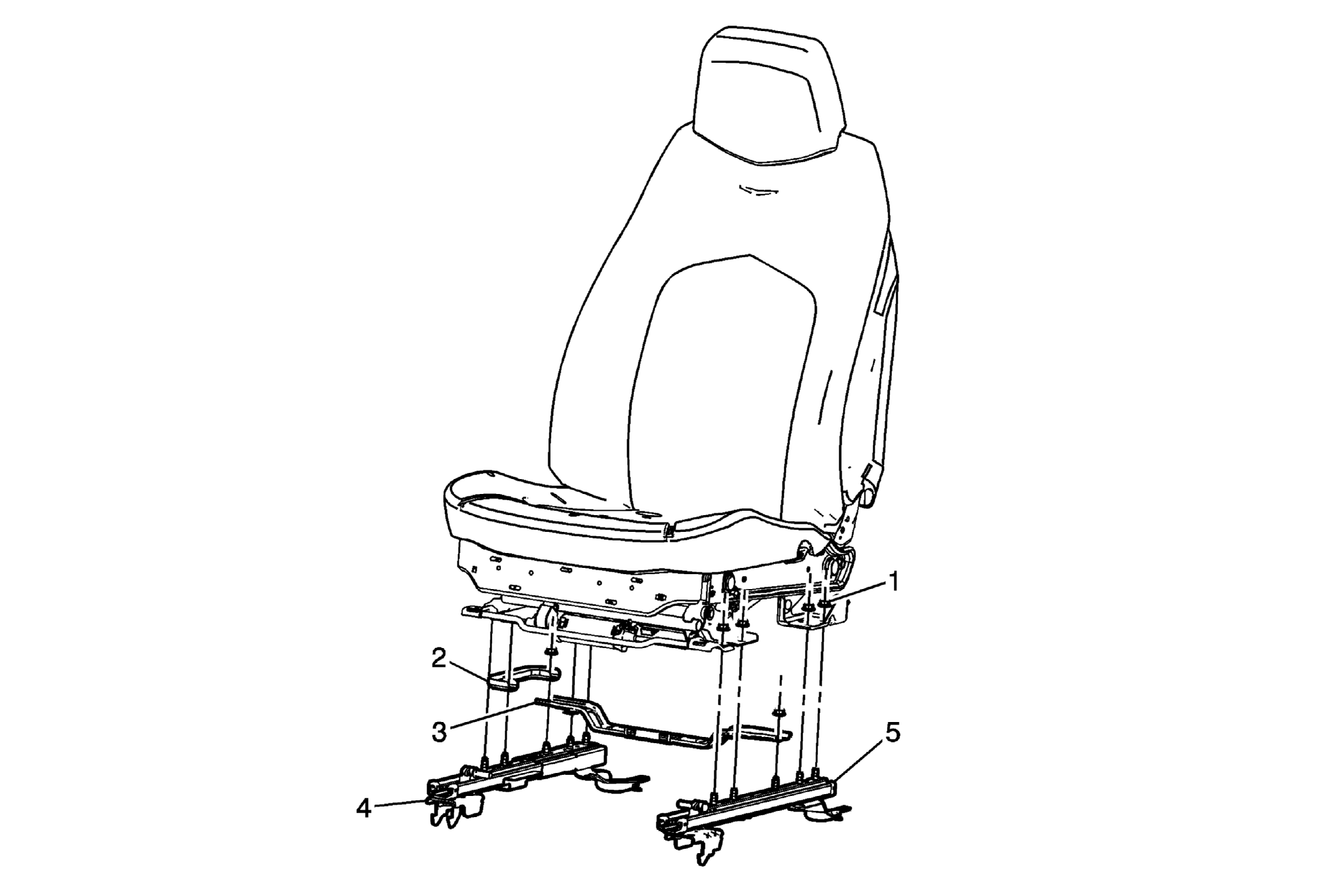

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket . |
|
| 1 | Front Seat Adjuster Track Nut (Qty: 10)
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Front Seat Remote Handle |
| 3 | Front Seat Track Brace |
| 4 | Front Seat Inner Adjuster Track |
| 5 | Front Seat Outer Adjuster Track |
