Driver Seat and Passenger Seat Adjuster Handle Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

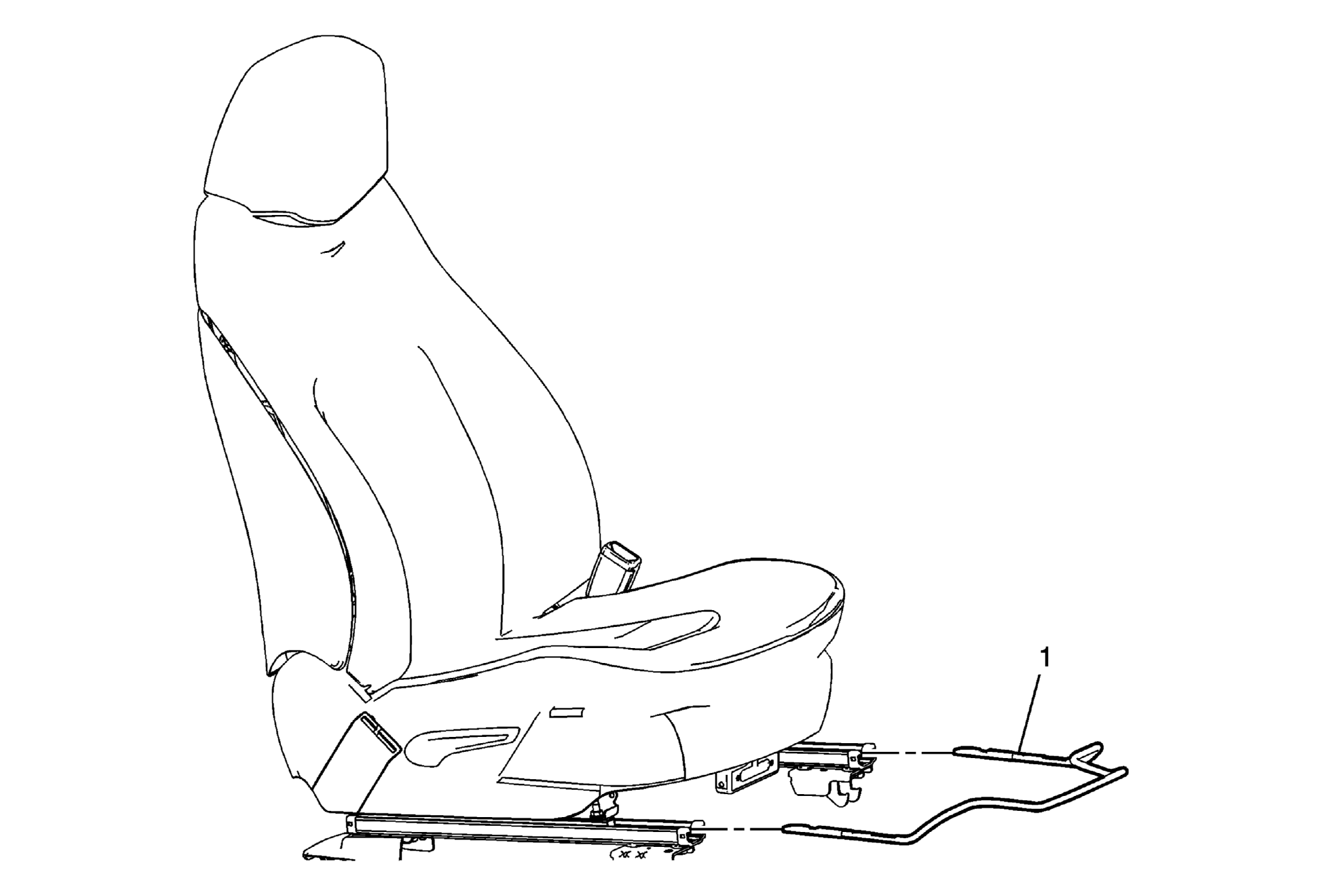

Fig 1: Driver Seat and Passenger Seat Adjuster Handle Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Adjuster Handle Procedure Release the retainer in the seat adjuster track. Pull upward and forward to remove the handle from the adjuster.

Callout

Component Name

Preliminary Procedure:
Remove the front seat. Refer to Front Seat Replacement - Bucket .

Front Seat Adjuster Handle

Procedure

Release the retainer in the seat adjuster track.
Pull upward and forward to remove the handle from the adjuster.
