Front Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

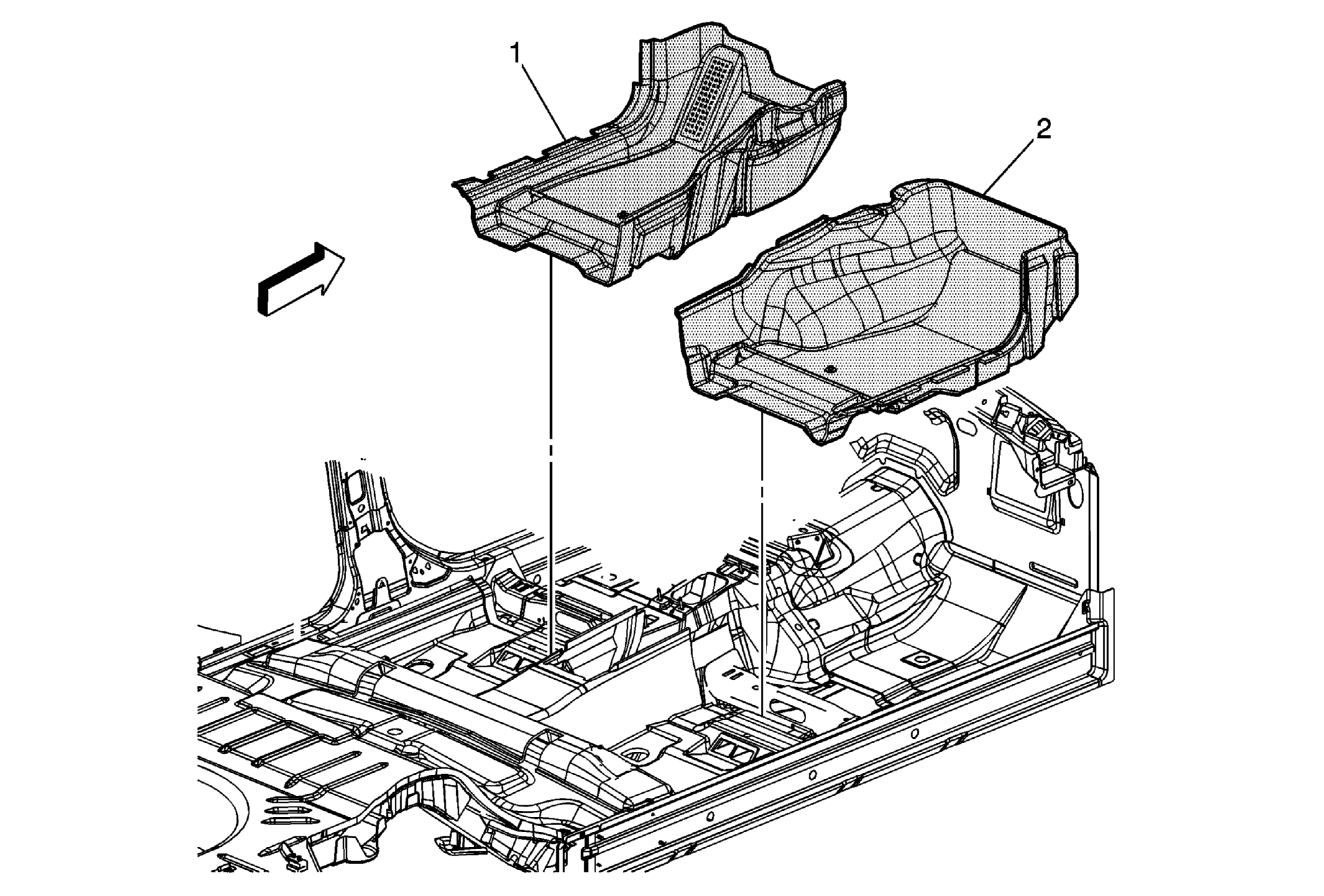

Fig 1: View of Front Floor Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to Front Seat Replacement - Bucket . Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front side door sill plates. Refer to Front Side Door Sill Plate Replacement . Remove the center pillar lower molding. Refer to Center Pillar Lower Trim Panel Replacement .
1	Front Floor Panel Carpet - Left Front Tip: Route carpet openings on left and right over floor duct openings.
2	Front Floor Panel Carpet - Right Front

Callout

Component Name

Preliminary Procedures

Remove the front seats. Refer to Front Seat Replacement - Bucket .
Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the front side door sill plates. Refer to Front Side Door Sill Plate Replacement .
Remove the center pillar lower molding. Refer to Center Pillar Lower Trim Panel Replacement .

Front Floor Panel Carpet - Left Front
Tip: Route carpet openings on left and right over floor duct openings.

Front Floor Panel Carpet - Right Front
