Front Compartment Lower Noise Shield Replacement (Rear Wheel Drive)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

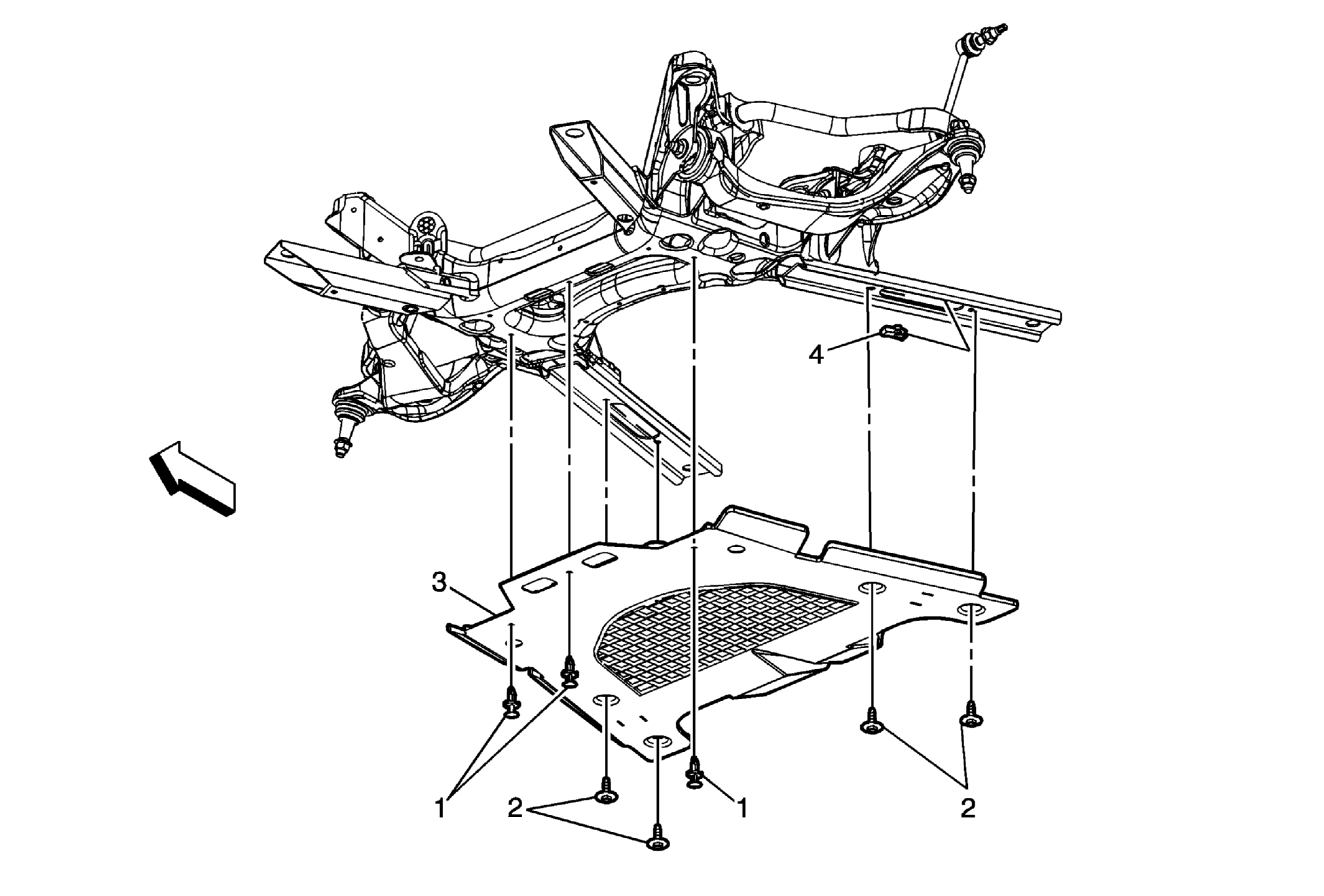

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Compartment Lower Noise Shield Retainer (Qty: 3) |
| 2 | Front Compartment Lower Noise Shield Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 5 N.m (44 lb in) |
| 3 | Front Compartment Lower Noise Shield |
| 4 | Front Compartment Lower Noise Shield Nut (Qty: 4) |
