Rear Compartment Lid Inner Panel Trim Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

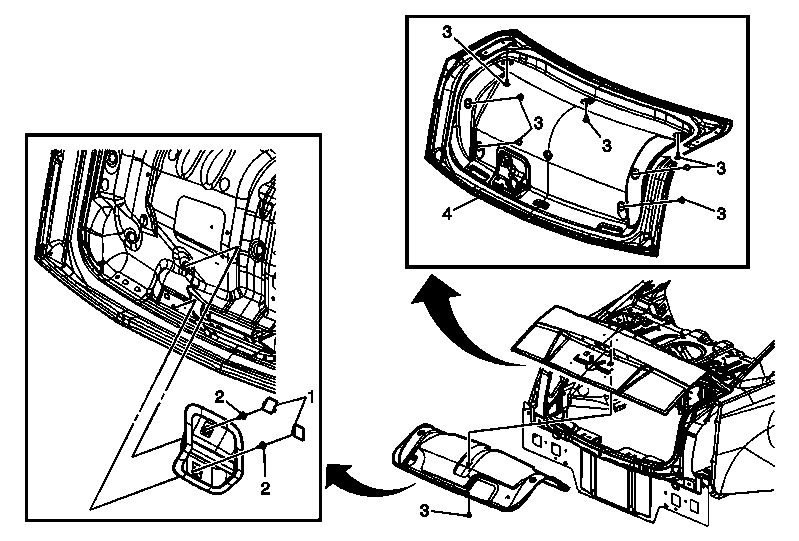

Fig 1: View of Rear Compartment Lid Inner Panel Assembly
GM1962372Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Inner Panel Trim Retainer (Qty: 11)
Tip:
  • Remove the rear compartment pull cup.
  • Use a J 38778  to aid in the removal of the door trim panel.
  • For installation, position the trim to the decklid and secure with the middle retainer first. Remove the middle retainer last for removal.

Special Tools:
J 38778  Door Trim Pad Clip Remover
2 Rear Compartment Lid Inner Panel Trim
