Interior Lights Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

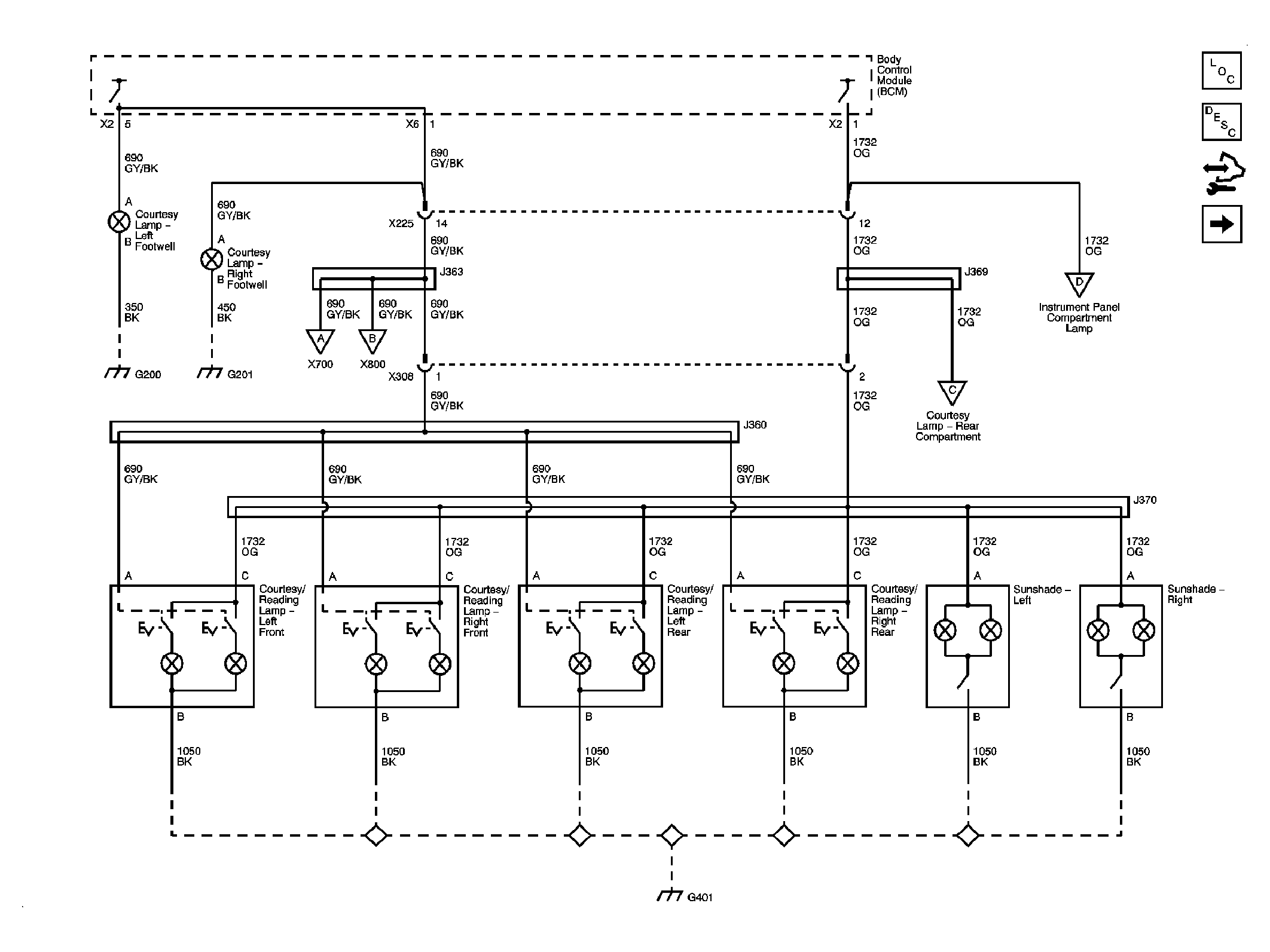

Fig 1: Courtesy/Reading and Sunshade Lamps 1 of 2

Courtesy of GENERAL MOTORS CORP.

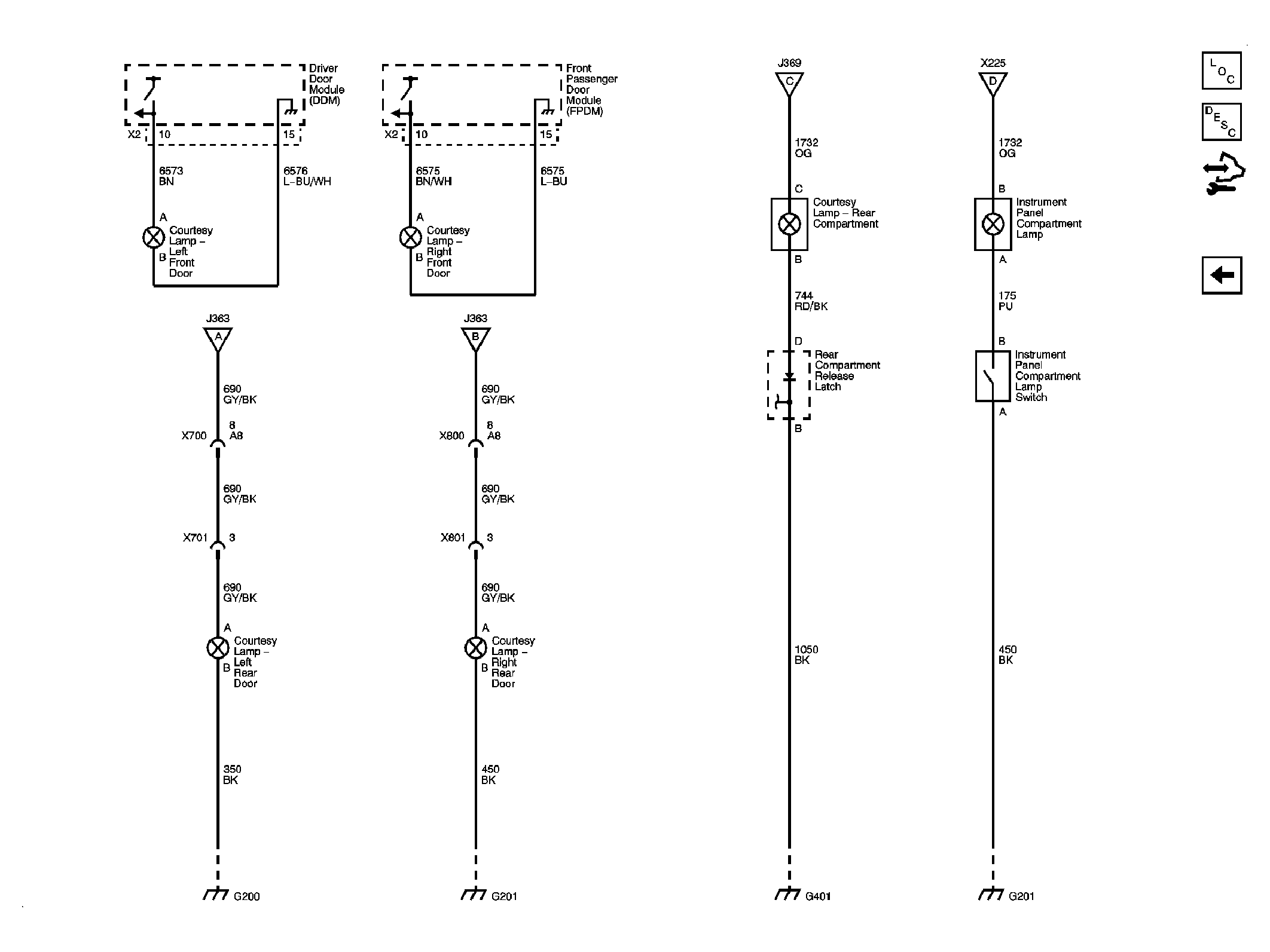

Fig 2: Courtesy Lamps 2 of 2

Courtesy of GENERAL MOTORS CORP.
