Interior Lights Dimming Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

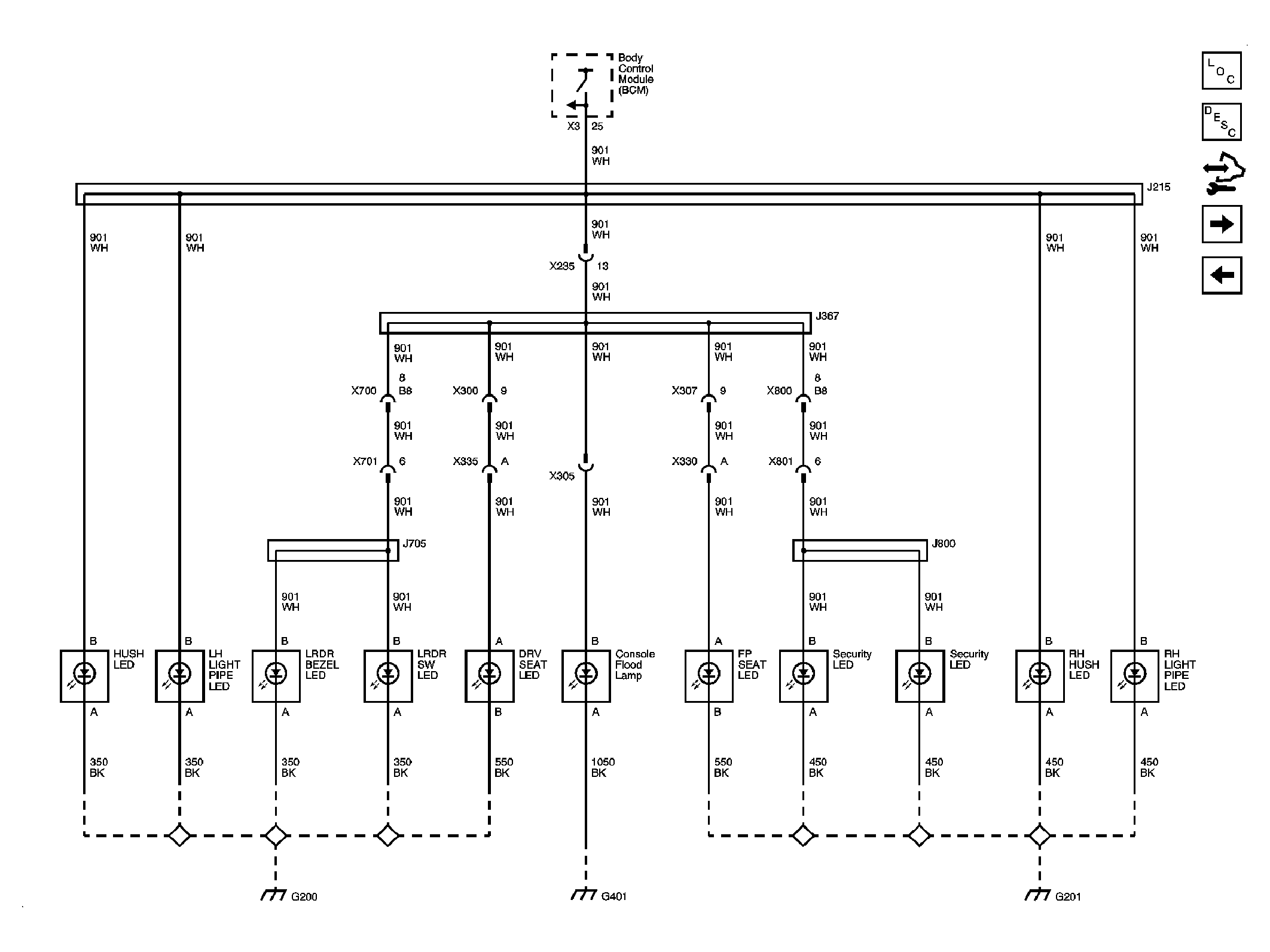

Fig 1: Interior Lights Dimming 1 of 3

Courtesy of GENERAL MOTORS CORP.

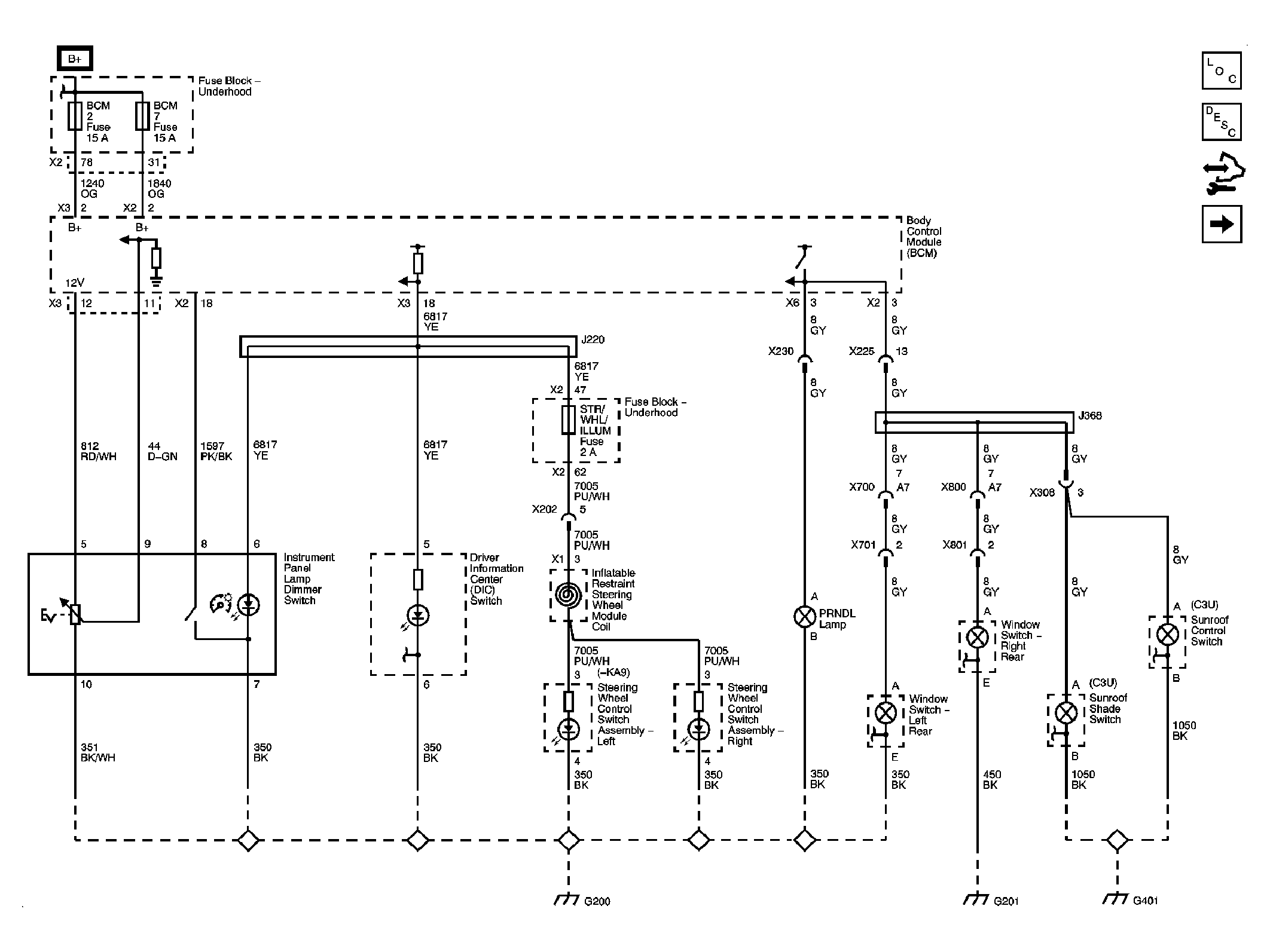

Fig 2: Interior Lights Dimming 2 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 3: Interior Lights Dimming 3 of 3

Courtesy of GENERAL MOTORS CORP.
