Sunshade Illuminated Mirror Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

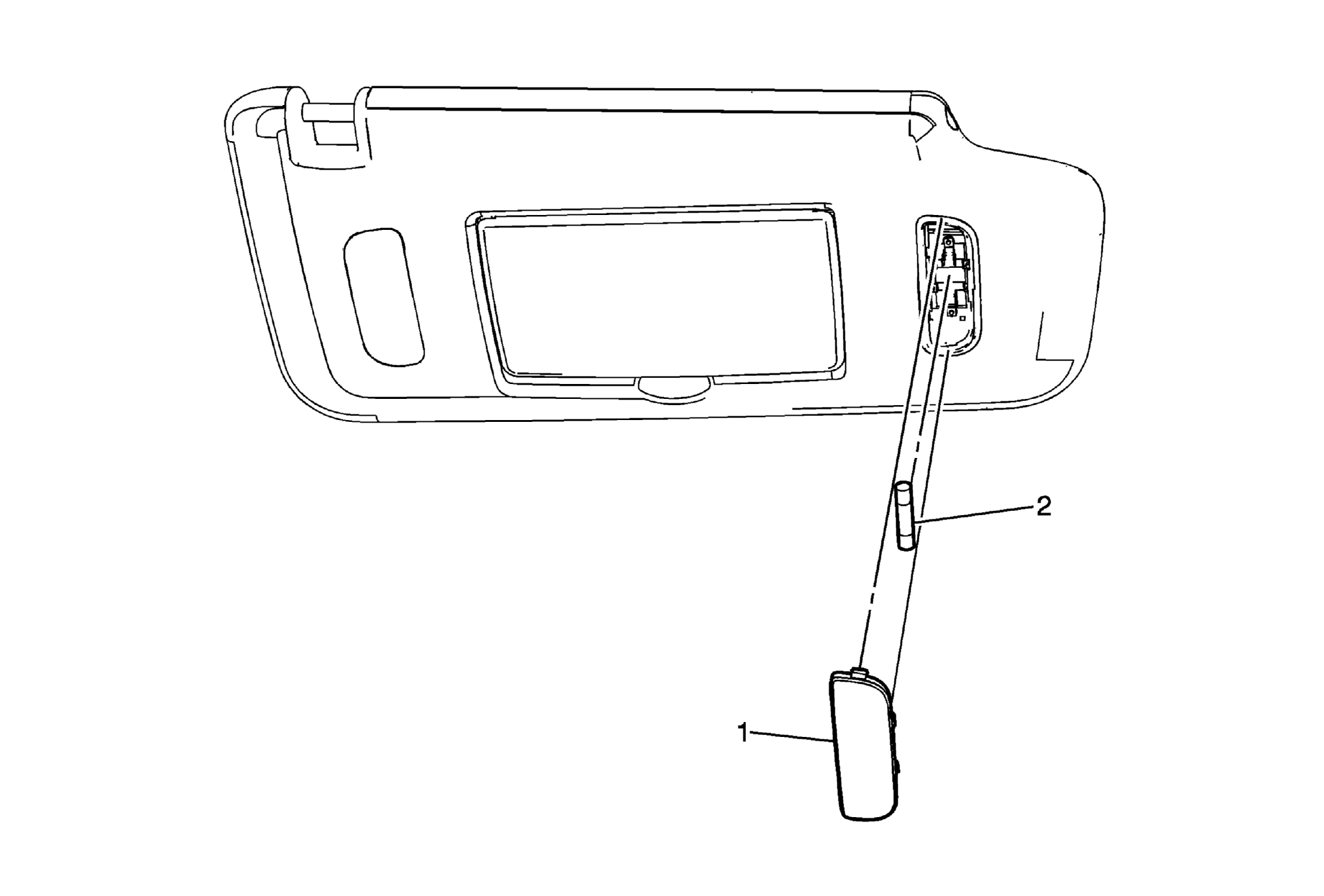

Fig 1: Sunshade Illuminated Mirror Lamp Bulb Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lamp Lens Procedure: Use a flat-bladed tool and detach the lens.
2	Lamp Bulb
