Park/Turn Signal Lamp Bulb Replacement (Base)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

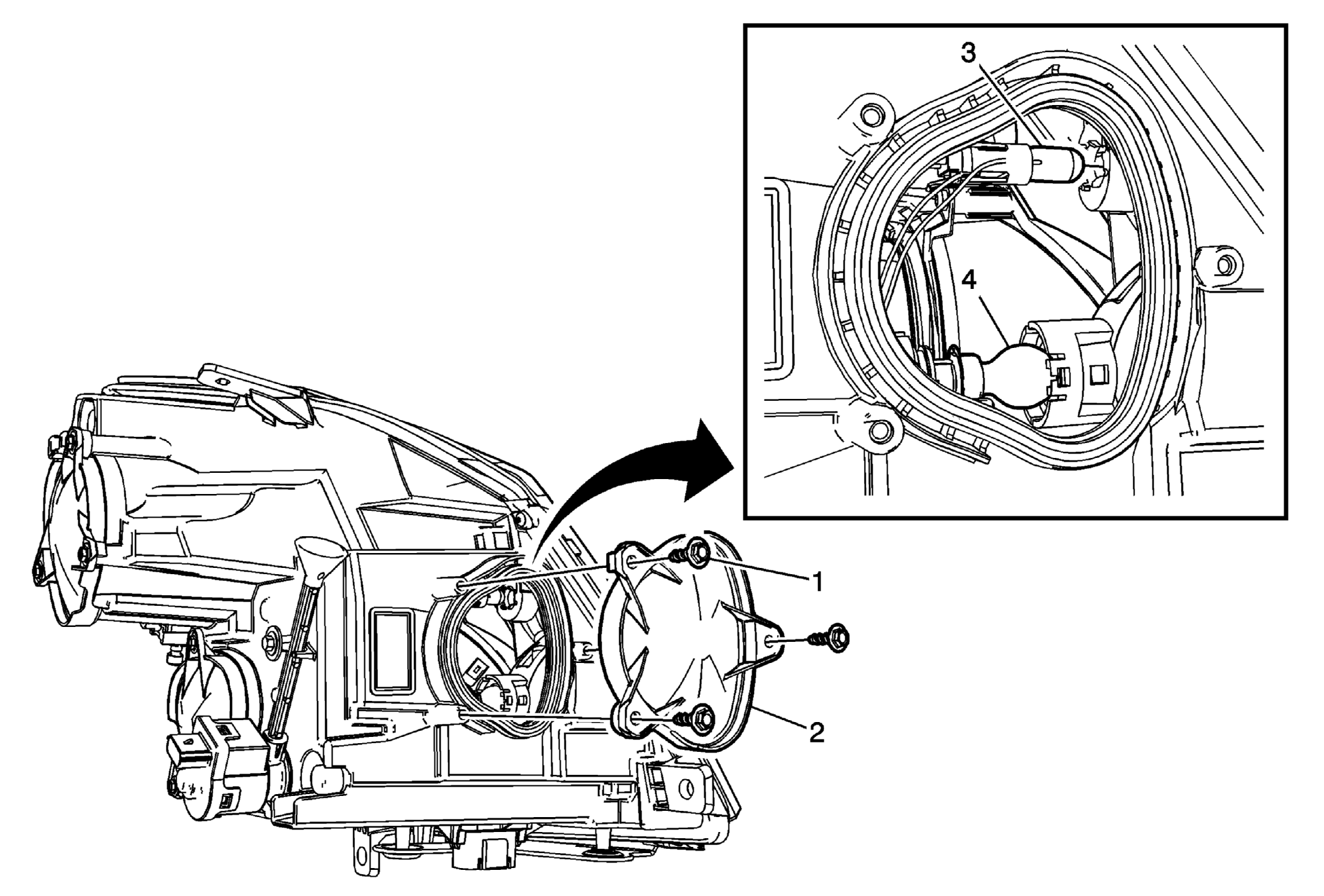

Fig 1: Park/Turn Signal Lamp Bulb Replacement (Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the headlamp capsule. Refer to Headlamp Capsule Replacement .
1	Accessory Cap Screw (Qty: 3) Tip: Hand tighten only, the accessory cap screws.
2	Accessory Cap Tip: Inspect and ensure the accessory cap seal is properly seated prior to installing the accessory cap cover.
3	Turn Signal Lamp Bulb CAUTION: Refer to Halogen Bulb Caution . Procedure Pinch the tabs on the bulb socket and pull the bulb socket from the headlamp assembly. Disconnect the electrical connector from the bulb socket. Remove and replace the bulb.
4	Park Signal Lamp Bulb Procedure Pinch the tabs on the bulb socket and pull the bulb socket from the headlamp assembly. Disconnect the electrical connector from the bulb socket. Remove and replace the bulb.
