Instrument Panel Flood Lamp Replacement - Right Side
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the right instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement - Right Side
.
- Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement
.
|

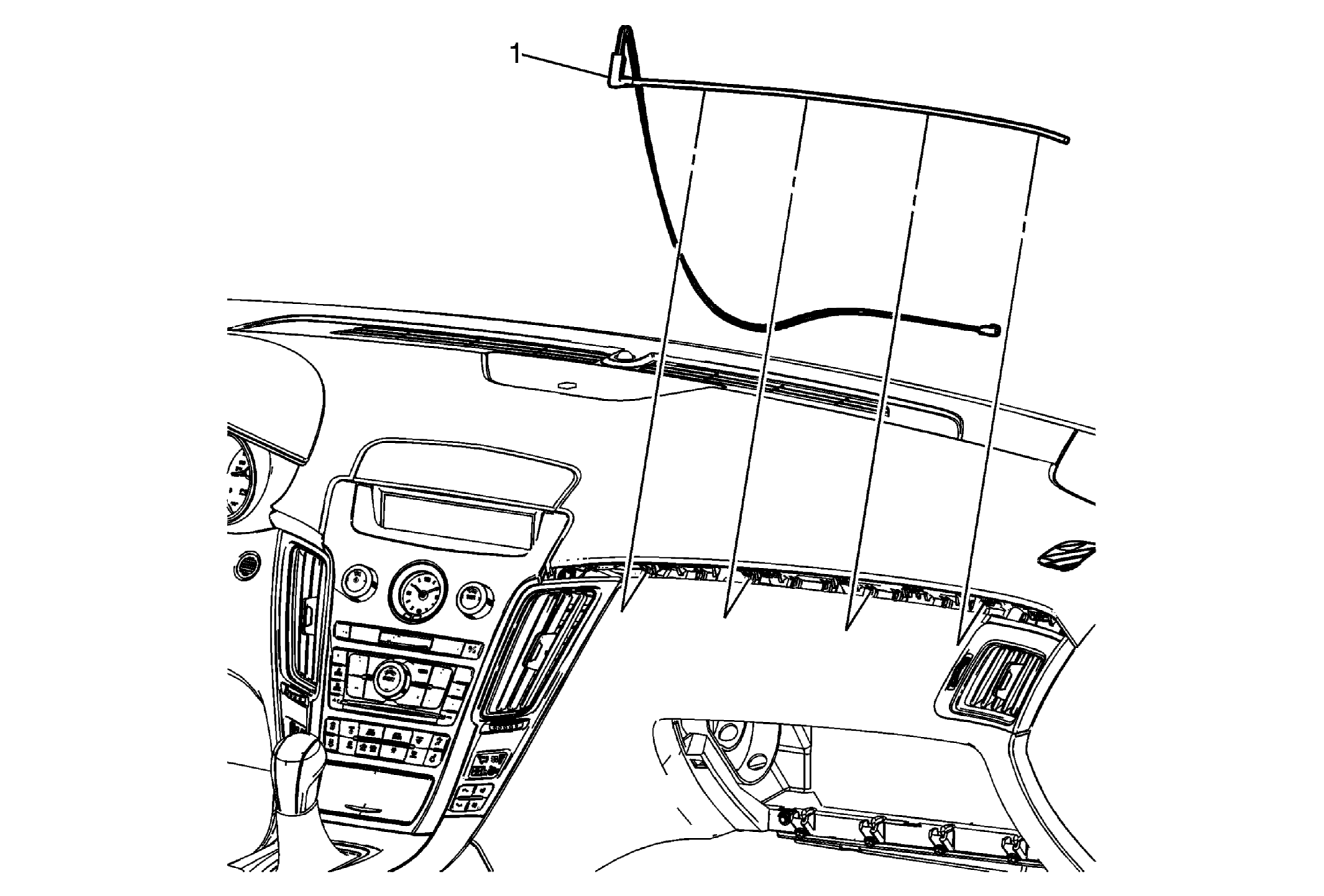

| 1 |
Instrument Panel Flood Lamp Assembly Procedure
- Note the routing of the wiring through the instrument panel assembly to ensure proper reinstallation.
- Disconnect the electrical connector.
- Unsnap the flood lamp assembly from the instrument panel.
|
