Front Bumper Fascia Extension Replacement - Left Side
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

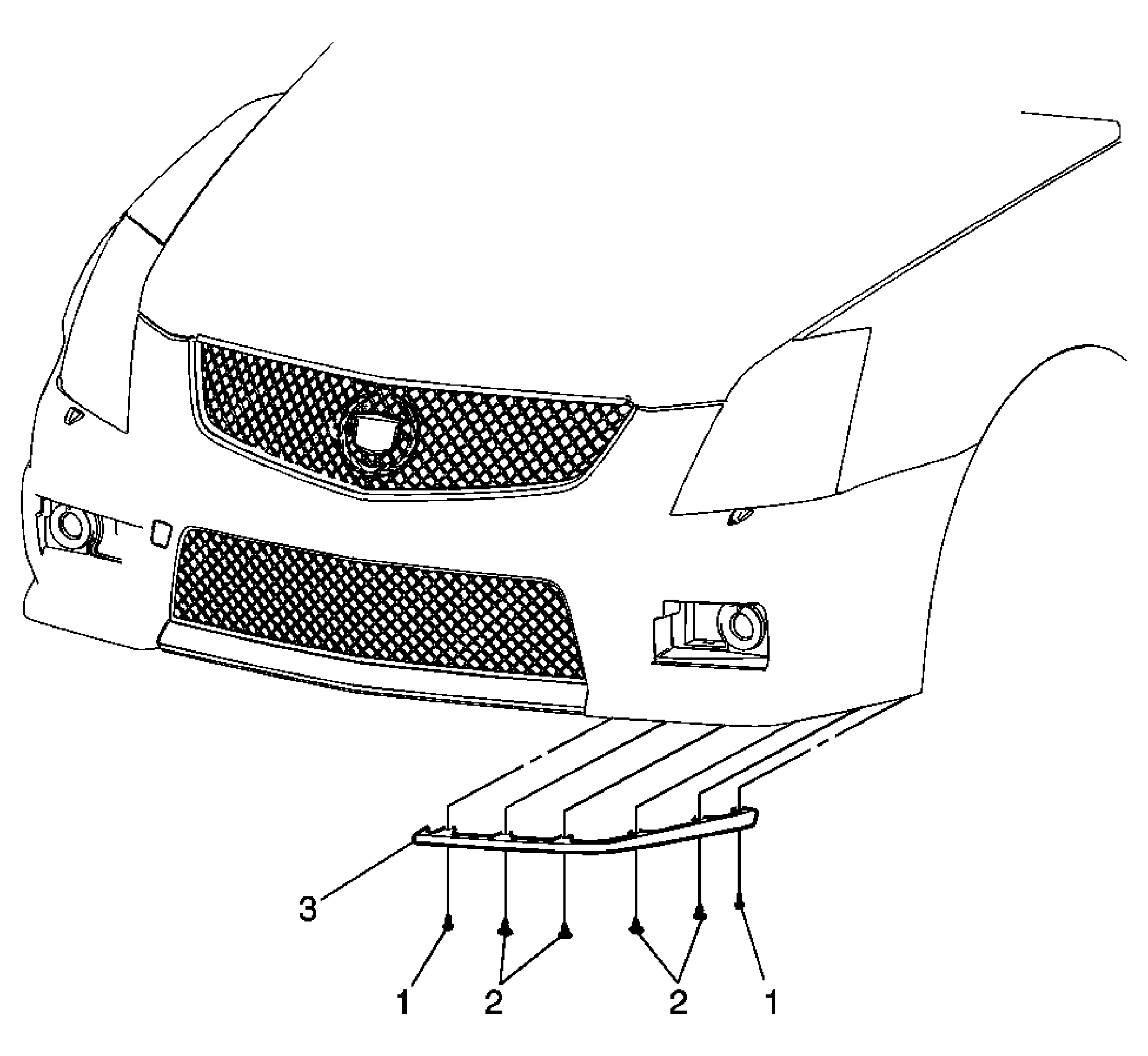

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise the vehicle. Support the vehicle with suitable safety stands. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Bumper Fascia Extension Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 6 N.m (53 lb in) |
| 2 | Front Bumper Fascia Extension Push Pin (Qty: 4) |
| 3 | Front Bumper Fascia Extension |
