Rocker Panel Molding Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

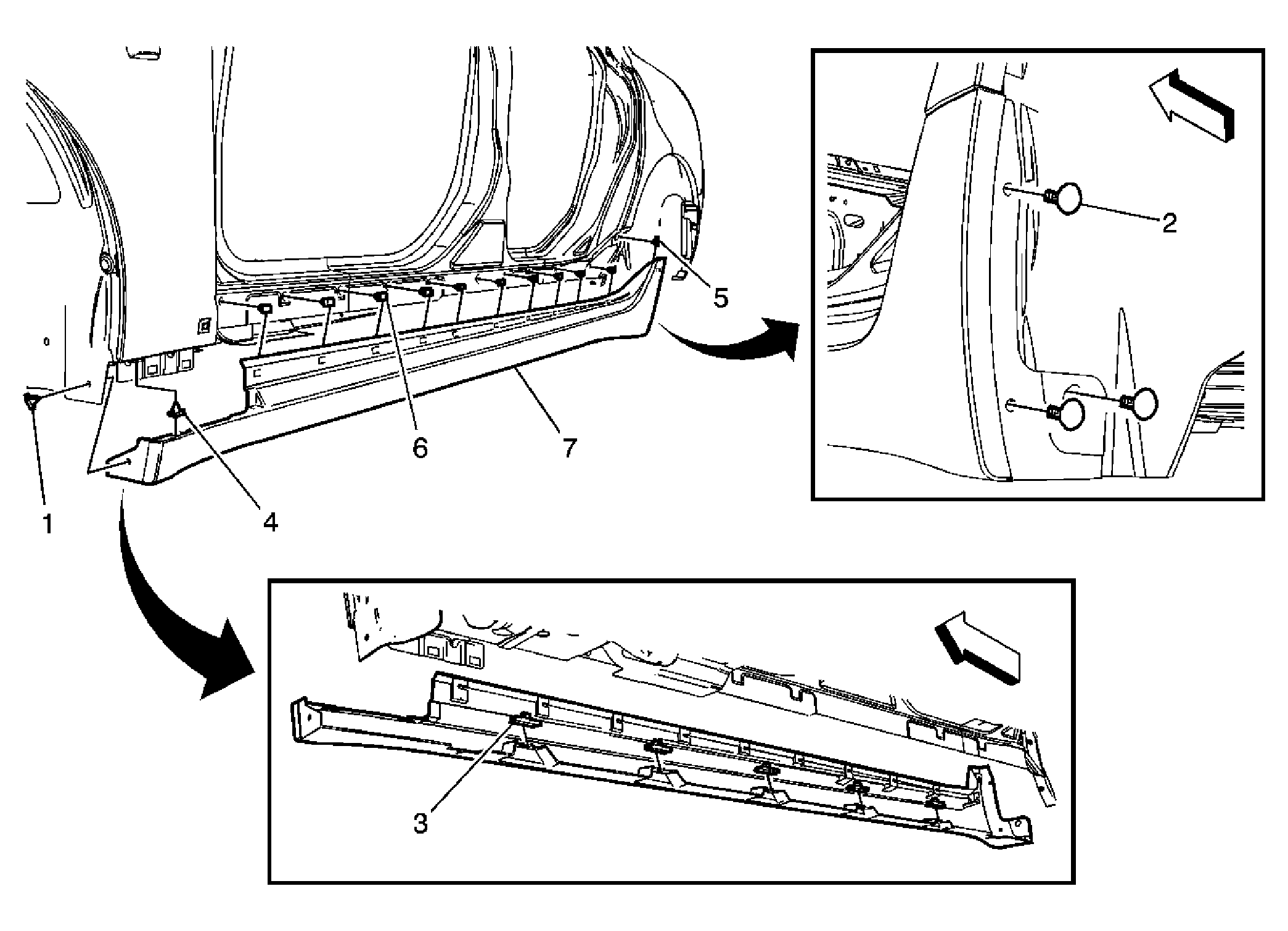

Fig 1: Viewing Assembly of Rocker Panel Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure The CTS lower rocker panels are a paint to match replacement part. Prior to servicing the lower rocker panels refer to the following information: How to Identify Plastic Parts. Refer to How to Identify Plastic Parts . Plastic Identification and Refinishing Systems. Refer to Plastic Identification and Refinishing Systems . Open both doors on one side in order to remove the lower rocker molding. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the mud guards, (if equipped).
1	Front Wheelhouse Liner Retainer
2	Rear Wheelhouse Retainer (Qty: 3)
3	Rocker Panel Lower Retainer (Qty: 5) Tip: Disengage the lower retainers prior to releasing the upper flange retainers.
4	Lower Fender Retainer
5	Rear Front Wheelhouse Retainer
6	Rocker Flange Retainer (Qty: 10) Tip: Release the ten retainers and remove the rocker panel molding from the lower rocker panel flange.
7	Rocker Panel Molding
