Front Fender Emblem/Nameplate Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

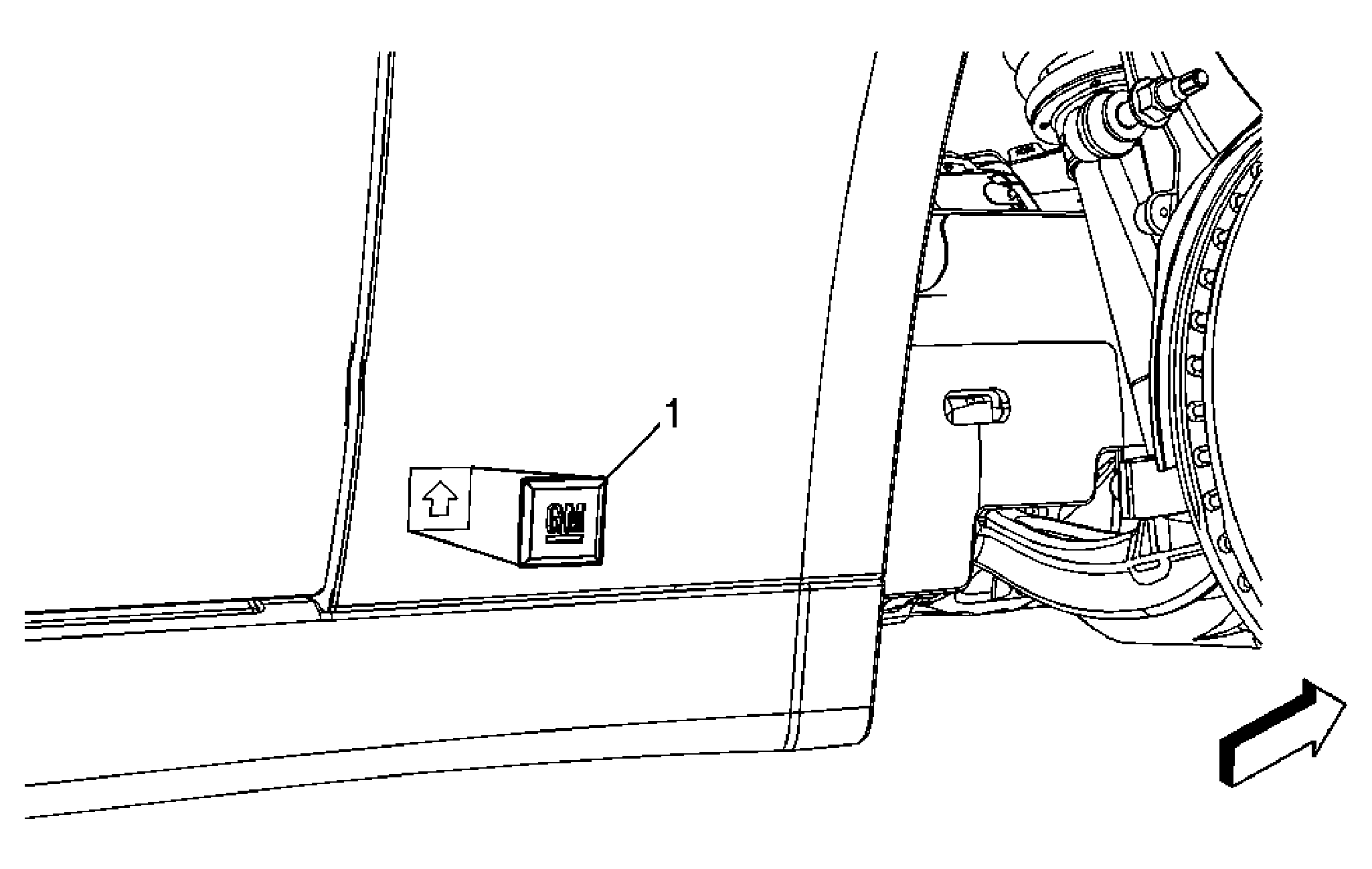

Fig 1: View of Front Fender Emblem/Nameplate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fender Emblem/Nameplate Procedure When removing protective liners from adhesive backed emblems, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 Heat Gun or equivalent to remove the old emblem. See Special Tools . Clean all the adhesive residue from the fender, wipe the surface dry with a clean lint-free towel prior to installing new emblem. Apply thumb pressure to the emblem to ensure full adhesion is made to the fender.

Callout

Component Name

Front Fender Emblem/Nameplate

Procedure

When removing protective liners from adhesive backed emblems, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 Heat Gun or equivalent to remove the old emblem. See Special Tools . Clean all the adhesive residue from the fender, wipe the surface dry with a clean lint-free towel prior to installing new emblem.
Apply thumb pressure to the emblem to ensure full adhesion is made to the fender.
