X127 Engine Chassis Harness to Generator Jumper Harness (Diesel)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
GM603213Courtesy of GENERAL MOTORS CORP.

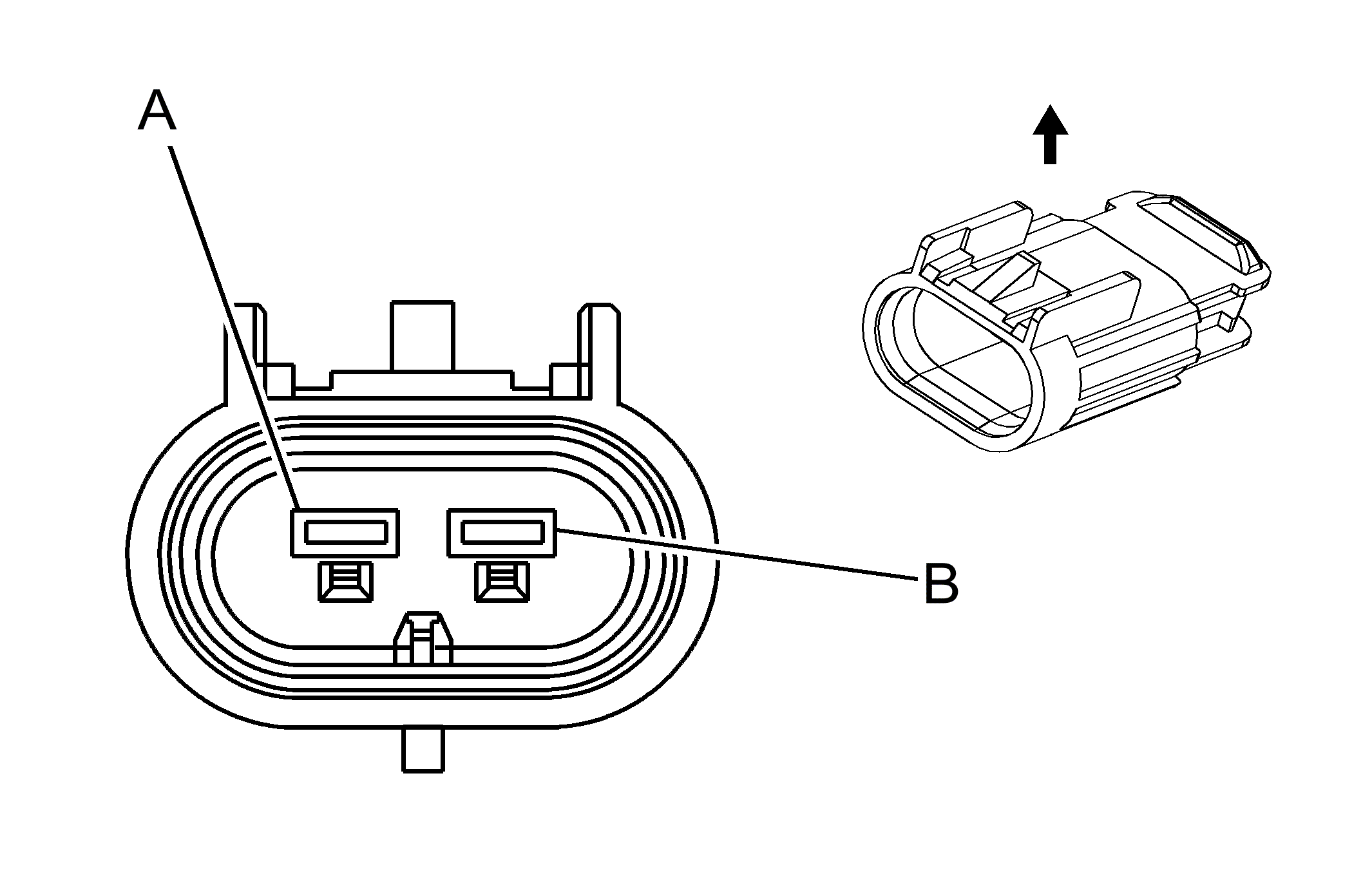

GM873041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13518845
  • Service: 88988942
  • Description: 2-Way F GT 280 Series Sealed (BK)
 Connector Part Information
  • OEM: 15326678
  • Service: 88987860
  • Description: 2-Way M GT 280 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal/Tray: 15304731/19
  • Core/Insulation Crimp: C/5
  • Release Tool/Test Probe: 1-5315247/J-35616-5 (PU)
X127 Engine Chassis Harness to Generator Jumper Harness (Diesel)

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A 0.8 BN 25 Charge Indicator Signal A 0.8 BN 25 Charge Indicator Signal
B 0.8 GY 23 Generator Field Duty Cycle Signal B 0.8 GY 23 Generator Field Duty Cycle Signal
