X113 Engine Jumper Harness to Engine Harness (Diesel)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

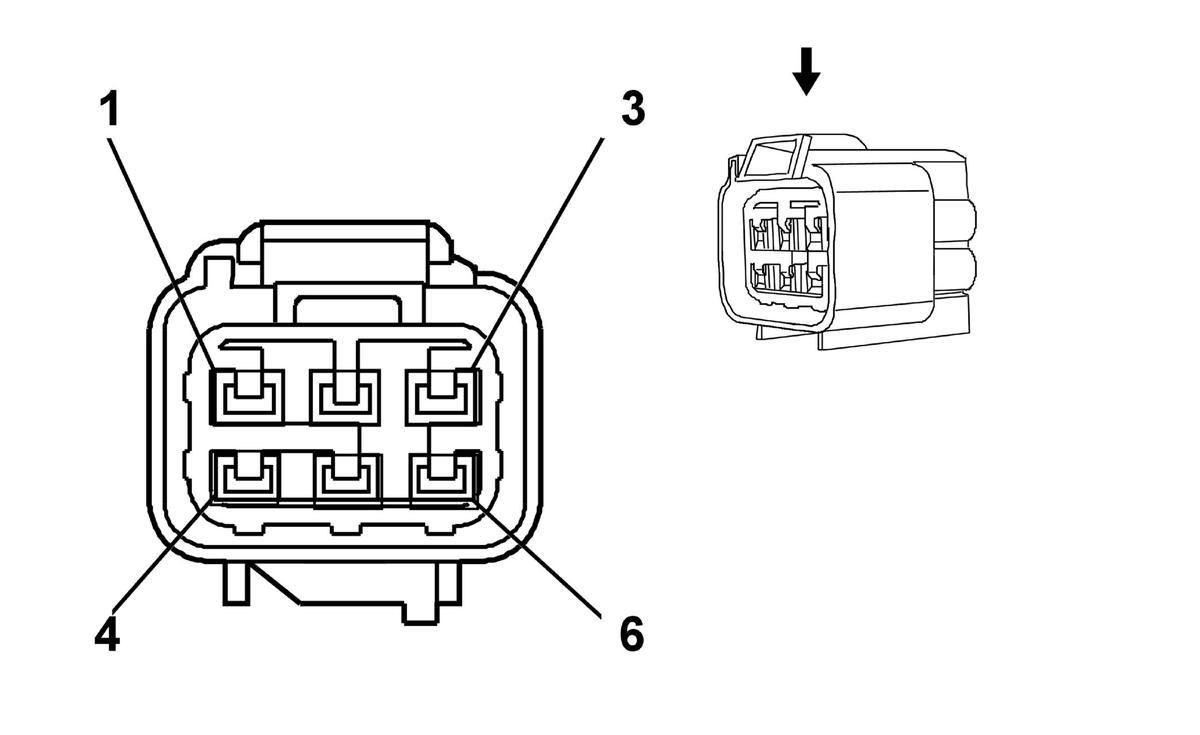

GM1619748Courtesy of GENERAL MOTORS CORP.

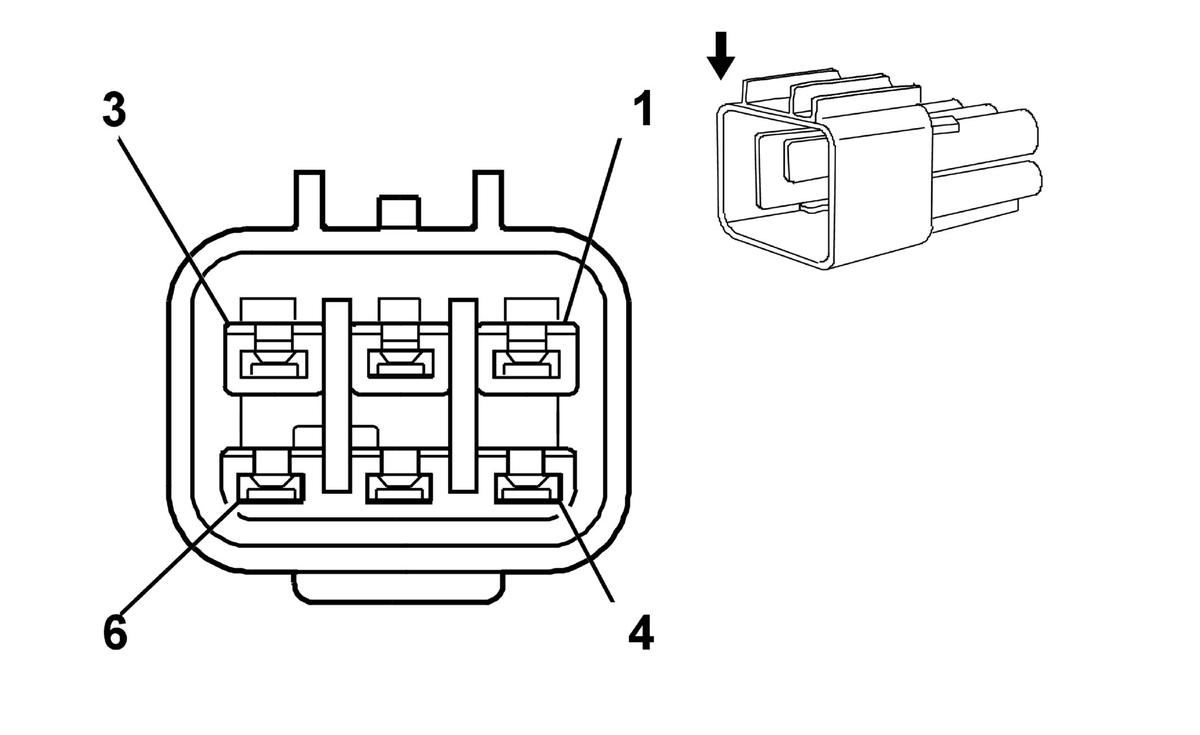

GM1619749Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: NFMT-SBC-6F-B
  • Service: See Catalog
  • Description: 6-Way F (BK)
 Connector Part Information
  • OEM: NFMT-SBC-6M-B
  • Service: See Catalog
  • Description: 6-Way M (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X113 Engine Jumper Harness to Engine Harness (Diesel)

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 0.5 PK/YE HB03 Ground 1 0.75 RD HB03 Ground
2 0.5 TN/WH IC66 Pressure Sensor Signal 2 0.5 TN/WH IC66 Pressure Sensor Signal
3 0.5 BN IC68 Oil Level Switch Signal 3 0.5 BN IC68 Oil Level Switch Signal
4 0.5 GY IC57 5-Volt Reference 4 0.5 GY IC57 5-Volt Reference
5 0.5 BK IC71 Low Reference 5 0.5 BK IC71 Low Reference
6 - - Not Used 6 - - Not Used
