Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front of Roof Comonents (U01)
GM1858049Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Marker Lamp - Right
2 Clearance Lamps
3 Roof Marker Lamp - Left
4 Windshield
Fig 2: Front of Roof Components (UE1)
GM1739414Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield
2 Cellular/Navigation Antenna (UE1) / Cellular/Navigation and Digital Radio Antenna (UE1 w/U2K)
Fig 3: Top of Roof Components (CF5)
GM1860649Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Module
2 Left Outer Frame Panel
Fig 4: Overhead Console Components
GM1890108Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X304
2 Inflatable Restraint Passenger Air Bag ON/OFF Indicator (AL0/C99)
3 Cellular Microphone (UE1/U3U/UVB)
4 Roof Beacon Switch (TRW)
5 Sliding Rear Window Switch (A48)
6 Courtesy/Reading Lamps - Front
7 J322
8 J323
9 X313 (CF5/TRW/5X7/5Y0)
10 Roof Mounted Beacon Blunt Cuts (TRW)
11 Roof Beacon Relay (TRW)
Fig 5: Overhead Console and Headliner Components (U42/5Y0)
GM1934348Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Beacon Switch (5Y0)
2 Video Display (U42)
3 Infared Module (U42)
4 Emergency Vehicle Wiring Blunt Cuts (5Y0)
5 Emergency Vehicle Roof Lamp Relay (5Y0)
Fig 6: Front Headliner Components - 1 of 2
GM1860657Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof
2 Sunshade - Right
3 Outside Moisture Sensor (CE1)
4 Inside Rearview Mirror (ISRVM) Window Anchor
Fig 7: Front Headliner Components - 2 of 2
GM1855919Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Air Temperature Sensor - Front (CJ2)
2 Cellular Microphone (UE1/U3U/UVB)
3 Courtesy/Reading Lamps - Rear (Extended Cab/Crew Cab)
4 Sunroof Switch (CF5)
5 Sunshade - Right (DH6)
6 Garage Door Opener (UG1)
7 Onstar Button Assembly
8 Inside Rearview Mirror (ISRVM)
9 Courtesy/Reading Lamps - Front
10 Windshield
11 Sunshade - Left (DH6)
Fig 8: Left A-Pillar Components (UQ3/UQA)
GM851254Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left A-Pillar Trim Panel
2 Speaker - Left Front Tweeter
3 Speaker - Left Front Tweeter Connector

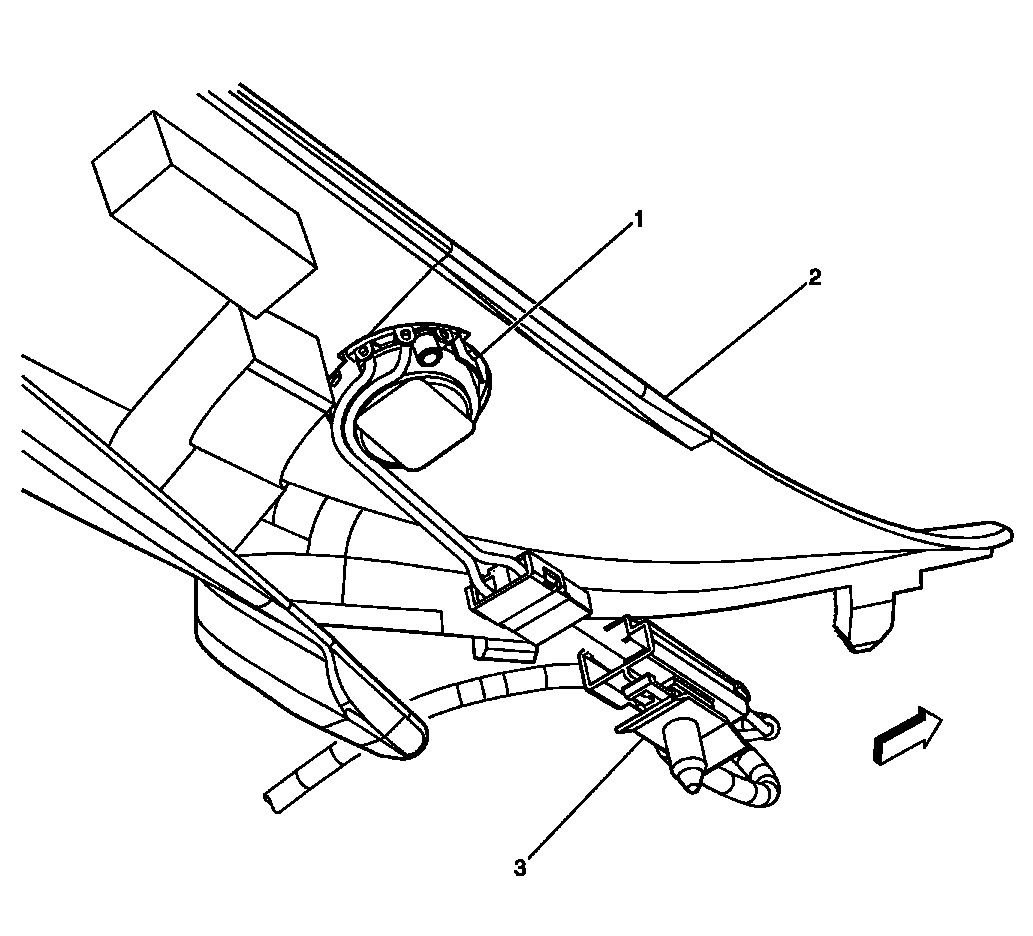

Fig 9: Right A-Pillar Components (UQ3/UQA)
GM1970093Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - Right Front Tweeter
2 Right A-Pillar Trim
3 Speaker - Left Front Tweeter Connector
Fig 10: Below the Left of the I/P Components - 1 of 2
GM1860661Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Release
2 Park Brake Switch
3 Dash Panel
4 Park Brake Lever
Fig 11: Below the Left of the I/P Components - 2 of 2
GM1739407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Adjustable Pedal Assembly (JF4)
2 Stop Lamp Switch
3 Accelerator Pedal Position (APP) Sensor
Fig 12: Passenger Compartment Components - 1 of 2 (Regular Cab)
GM1855921Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 Speaker - Left Rear
3 Driver Door Trim
4 Speaker - Left Front
5 Speaker - Center (UQA+Y91)
6 Speaker - Subwoofer (UQA)
7 Speaker - Right Front
8 Speaker - Right Rear
Fig 13: Passenger Compartment Components - 2 of 2 (Regular Cab)
GM1855932Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Roof Rail Module - Right (ASF)
2 Inflatable Restraint Roof Rail Module - Left (ASF)
3 Floor Panel
Fig 14: Passenger Compartment Components - 1 of 2 (Extended Cab/Crew Cab)
GM1855933Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Defogger Grid
2 Inflatable Restraint Roof Rail Module - Left (ASF)
3 Floor Panel
4 Inflatable Restraint Roof Rail Module - Right (ASF)
Fig 15: Passenger Compartment Components - 2 of 2 (Extended Cab/Crew Cab)
GM1934342Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Pretensioner - Driver
2 Seat Belt Pretensioner - Passenger
Fig 16: Driver Seat Components - 1 of 2
GM1913810Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Recline Motor - Driver (AN3)
2 Seat Lumbar Vertical Motor Position Sensor - Driver (AN3)
3 Seat Lumbar Vertical Motor - Driver (AN3)
4 X324 (AN3)
5 Seat Lumbar Horizontal Motor - Driver (AN3)
6 Seat Lumbar Horizontal Motor Position Sensor - Driver (AN3)
7 Seat Recline Position Sensor - Driver (AN3)
8 Seat Lumbar Switch - Driver (AN3)
9 Seat Adjuster Switch - Driver (AG1)
10 Memory Seat Module (AN3)
11 Inflatable Restraint Seat Position Sensor (SPS) - Left (10 Series)
12 Seat Adjuster Assembly - Driver (AG1)
13 Seat Belt Buckle - Driver
Fig 17: Driver Seat Components - 2 of 2
GM1859595Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Driver Back (AN3)
2 Heated Seat Element - Driver Cushion (AN3)
Fig 18: Center Seat Components (AZ3)
GM1934344Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxilary Power Outlet - Center Seat
Fig 19: Passenger Seat Components - 1 of 2
GM1913813Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Frame
2 X325 (AN3)
3 Seat Lumbar Vertical Motor - Passenger (AN3)
4 Seat Adjuster Switch - Passenger (AG2)
5 Seat Lumbar Switch - Passenger (AN3)
6 Seat Belt Buckle - Passenger (10 Series)
7 Inflatable Restraint Passenger Presence System (PPS) Module (AL0)
8 Seat Adjuster Assembly - Passenger (AG2)
9 Inflatable Restraint Passenger Presence System (PPS) Sensor (AL0)
10 Seat Recline Motor - Passenger (AN3)
11 Seat Lumbar Horizontal Motor - Passenger (AN3)
Fig 20: Passenger Seat Components - 2 of 2
GM1859596Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Passenger Back (AN3)
2 Heated Seat Element - Passenger Cushion (AN3)
Fig 21: Under the Front Seats Components
GM1860645Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Yaw Rate and Lateral Acceleration Sensor (JL4)
2 Inflatable Restraint Sensing and Diagnostic Module (SDM)
3 Inflatable Restraint Vehicle Rollover Sensor (ASF)
4 Shifter Housing
5 Rear HVAC Outlet Duct
6 Rear Object Sensor Control Module (UD7)
Fig 22: Left Rear of the Passenger Compartment Components
GM1860619Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
Fig 23: Right Rear of the Passenger Compartment Components
GM1855934Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Information Center Telltale Assembly (UD7)
2 Defogger Grid (C49)
3 Sliding Rear Window Open Relay (A48)
4 Sliding Rear Window Close Relay (A48)
5 Sliding Rear Window Motor (A48)
Fig 24: Above the Rear Window Components
GM1855920Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 Cargo Lamp/Center High Mounted Stop Lamp (CHMSL)
