Stabilizer Shaft Insulator Replacement (3500)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

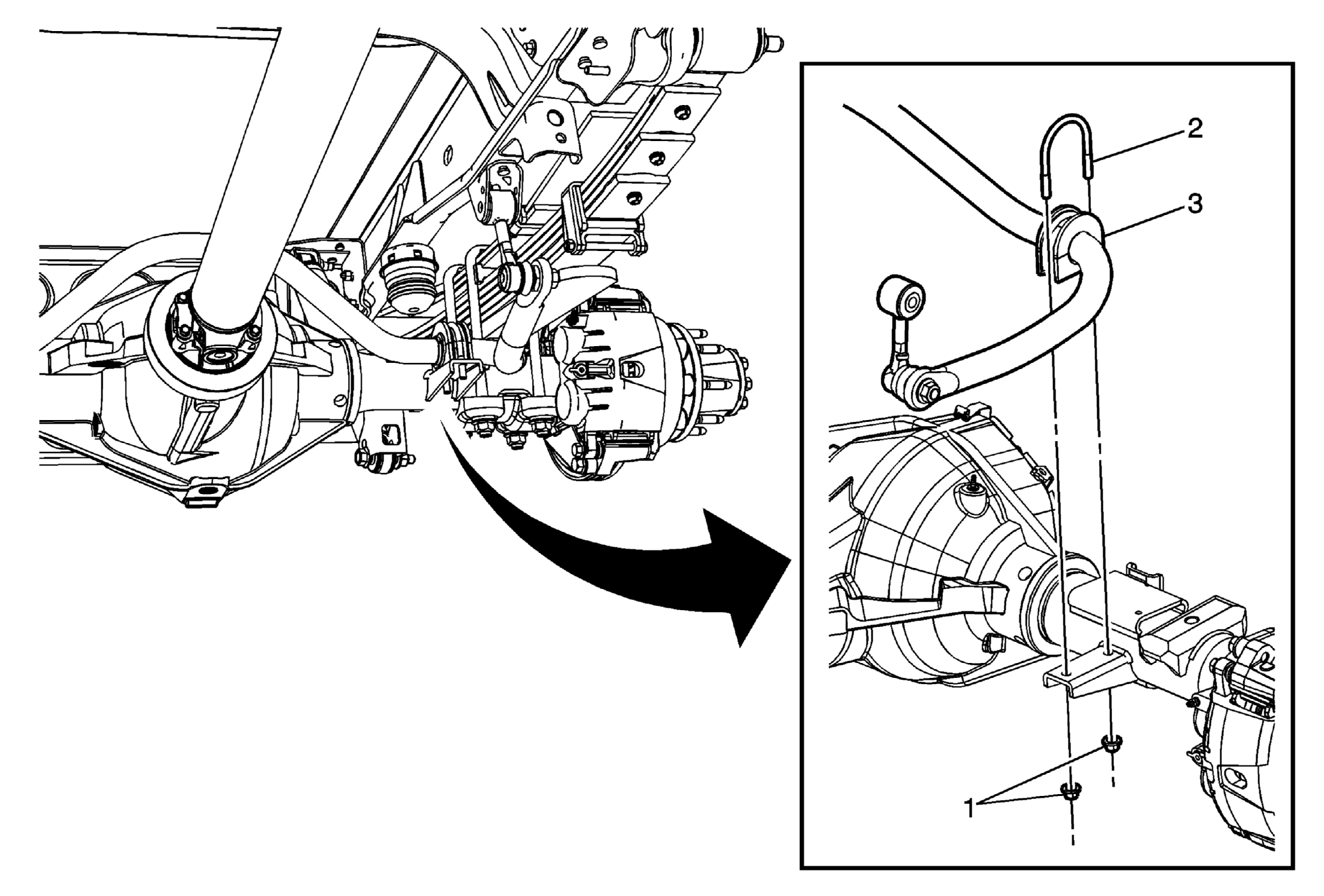

Fig 1: Stabilizer Shaft Insulator (3500)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the lower stabilizer shaft link nuts. Refer to Stabilizer Shaft Link Replacement (3500) .
1	Rear Stabilizer Shaft Clamp Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 32 N.m (24 lb ft)
2	Rear Stabilizer Shaft Insulator Clamp
3	Rear Stabilizer Shaft Insulator Tip: Ensure that the slit in the insulator is facing the front of the vehicle when installed.
