Installation Procedure

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

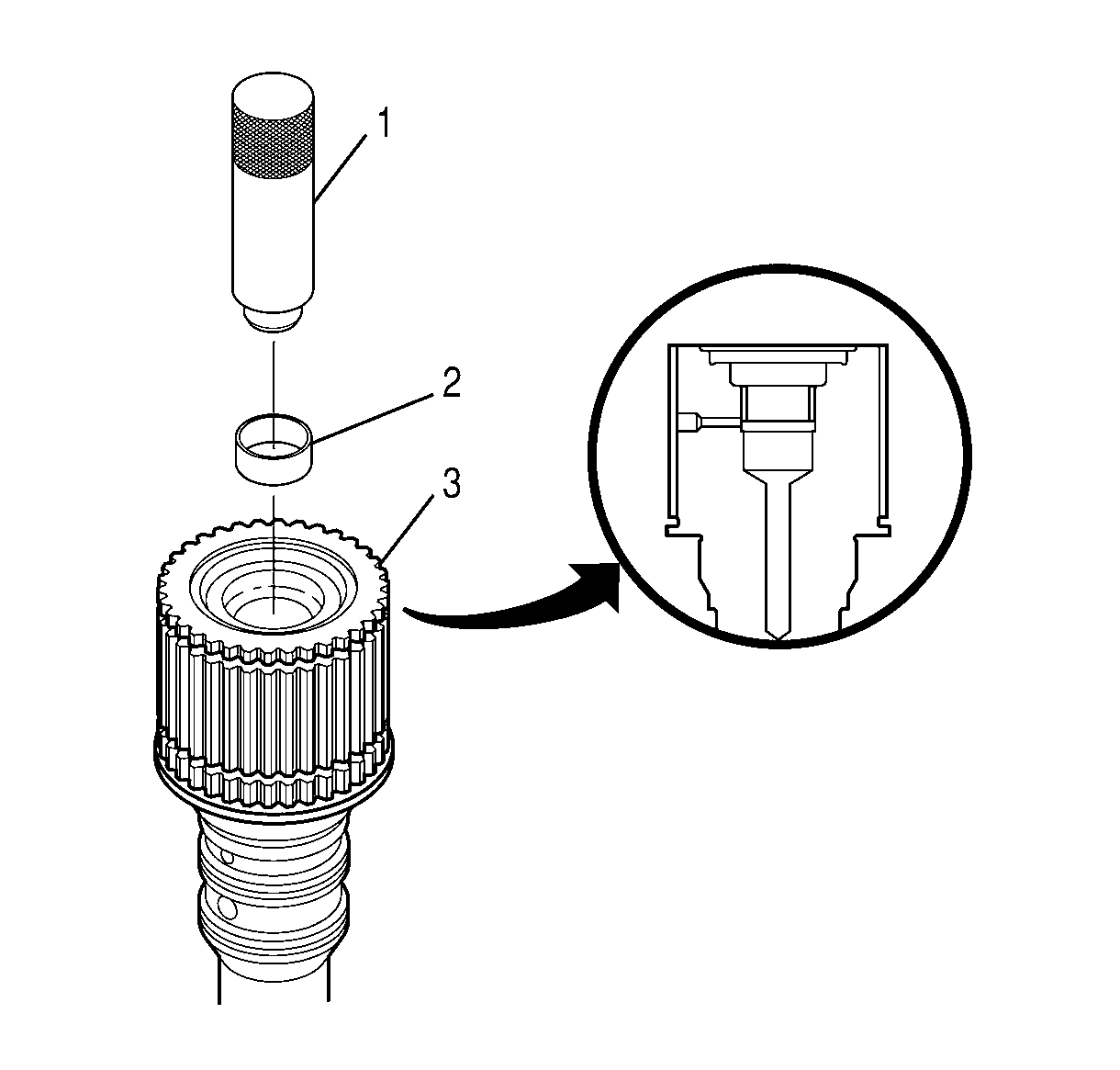

    Fig 1: Cross Sectional View Of Proper Turbine Shaft Bushing Installation
    GM1217079Courtesy of GENERAL MOTORS CORP.
  1. Install a new bushing (2) onto J 43791  (1). See Special Tools .
  2. Drive the bushing into turbine shaft (3) until the bushing is seated to specifications.

    Specification:  The bushing installed depth measurement is flush to 0.25 mm (0.010 in) below the inner turbine shaft surface.
