Transmission Case Fill Plug Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

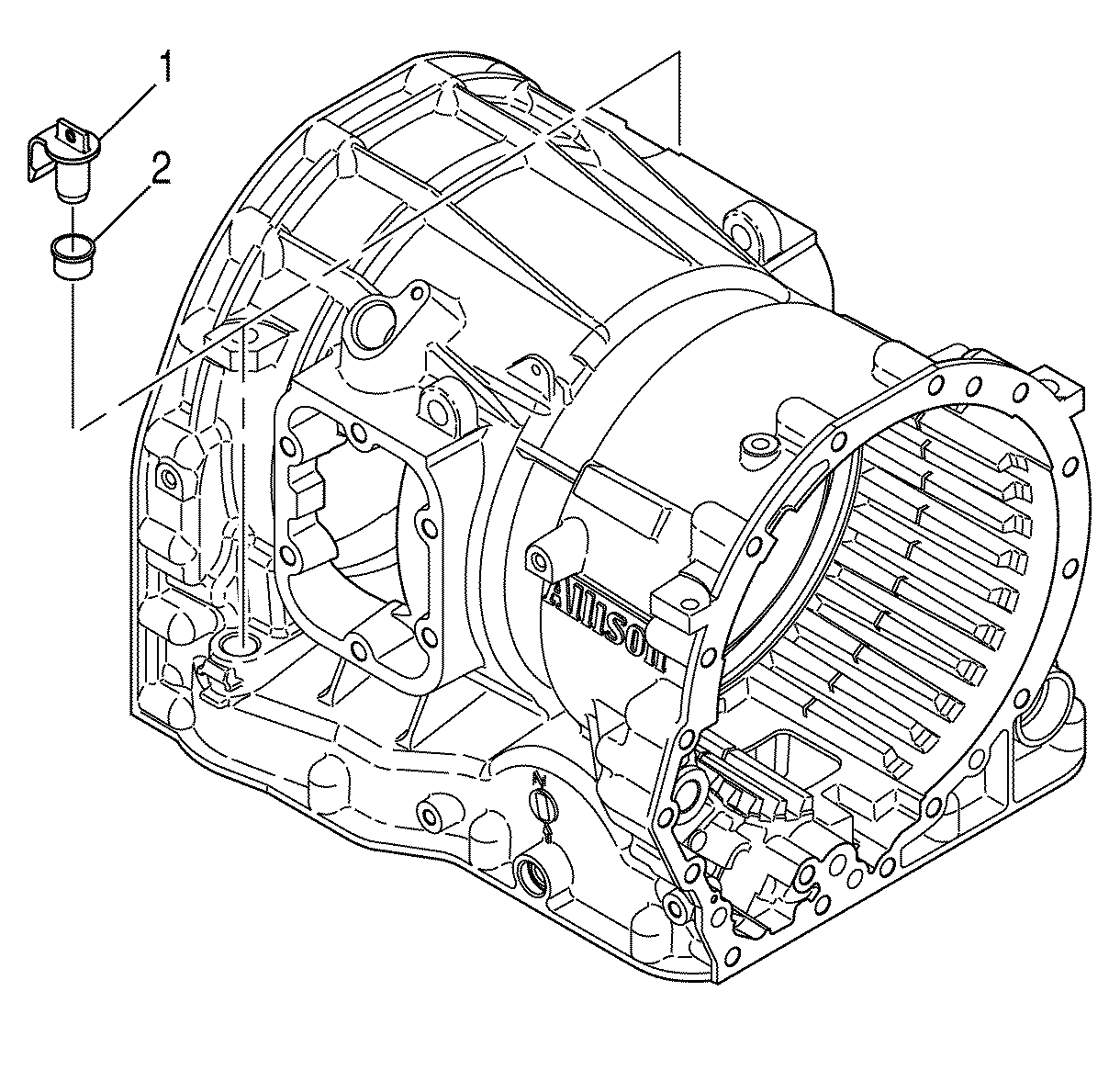

    Fig 1: Identifying Transmission Fill Tube Seal & Plug
    GM1216971Courtesy of GENERAL MOTORS CORP.
  1. Remove the fill tube plug (1).
  2. Remove the fill tube seal (2).
  3. Install the fill tube seal (2) into the transmission case.
  4. Align the tab on the fill plug (1) with the tang on the transmission case.
    IMPORTANT: The fill plug retaining tab snaps into place over a tang on the transmission case.
  5. Install the fill plug (1) into the fill tube seal (2).
  6. Press the fill plug down until the retaining tab locks into place.
