Removal Procedure

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

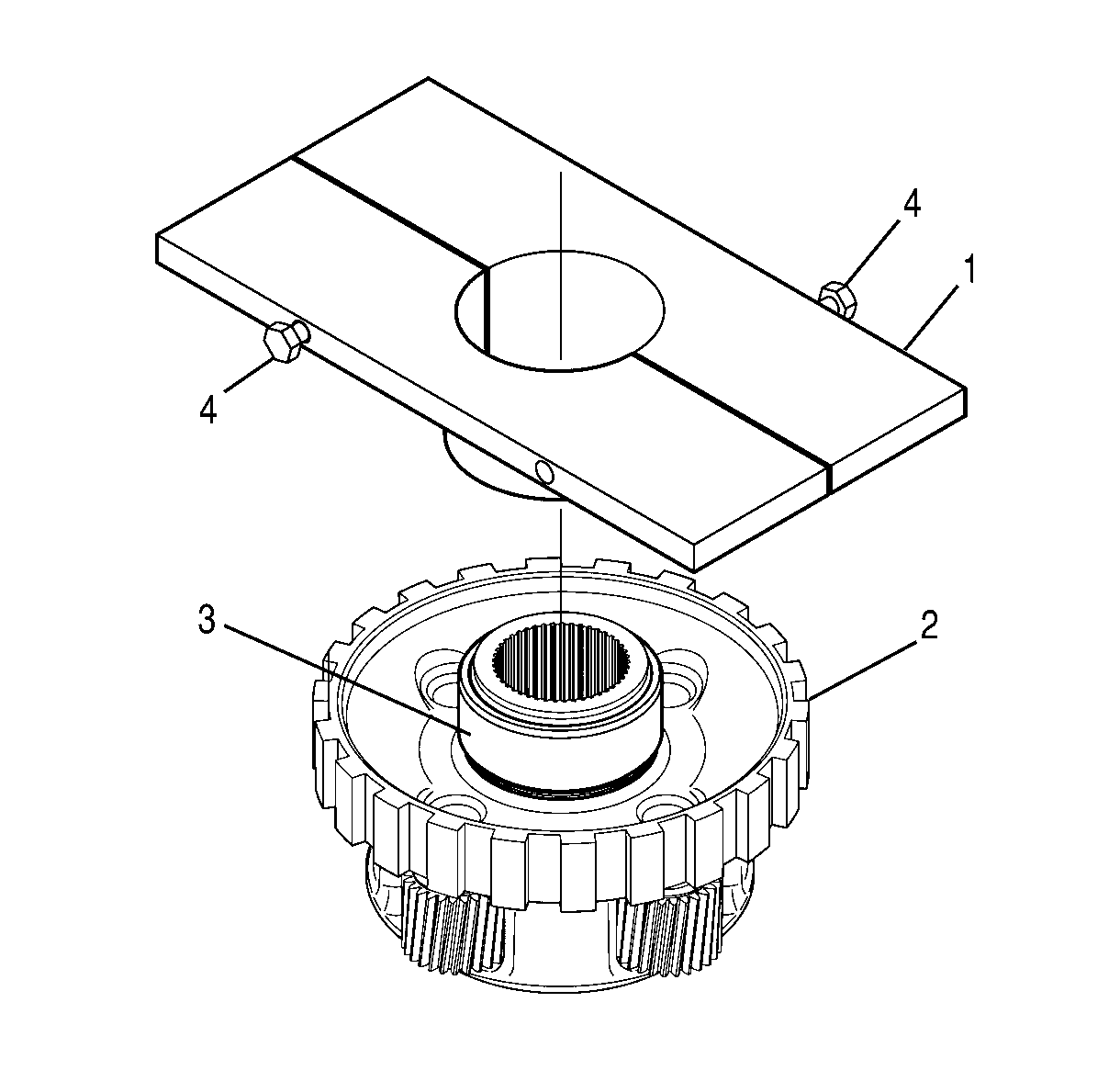

    Fig 1: Identifying Output Carrier Assembly & J 44528-1
    GM1217231Courtesy of GENERAL MOTORS CORP.
  1. Position the output carrier assembly (2) on the work table so that the rear of the carrier is facing up.
  2. Install J 44528-1 remover (1) over the hub of the carrier and onto the bearing race (3).
  3. Tighten the J 44528-1 remover screws (4) wrench tight.

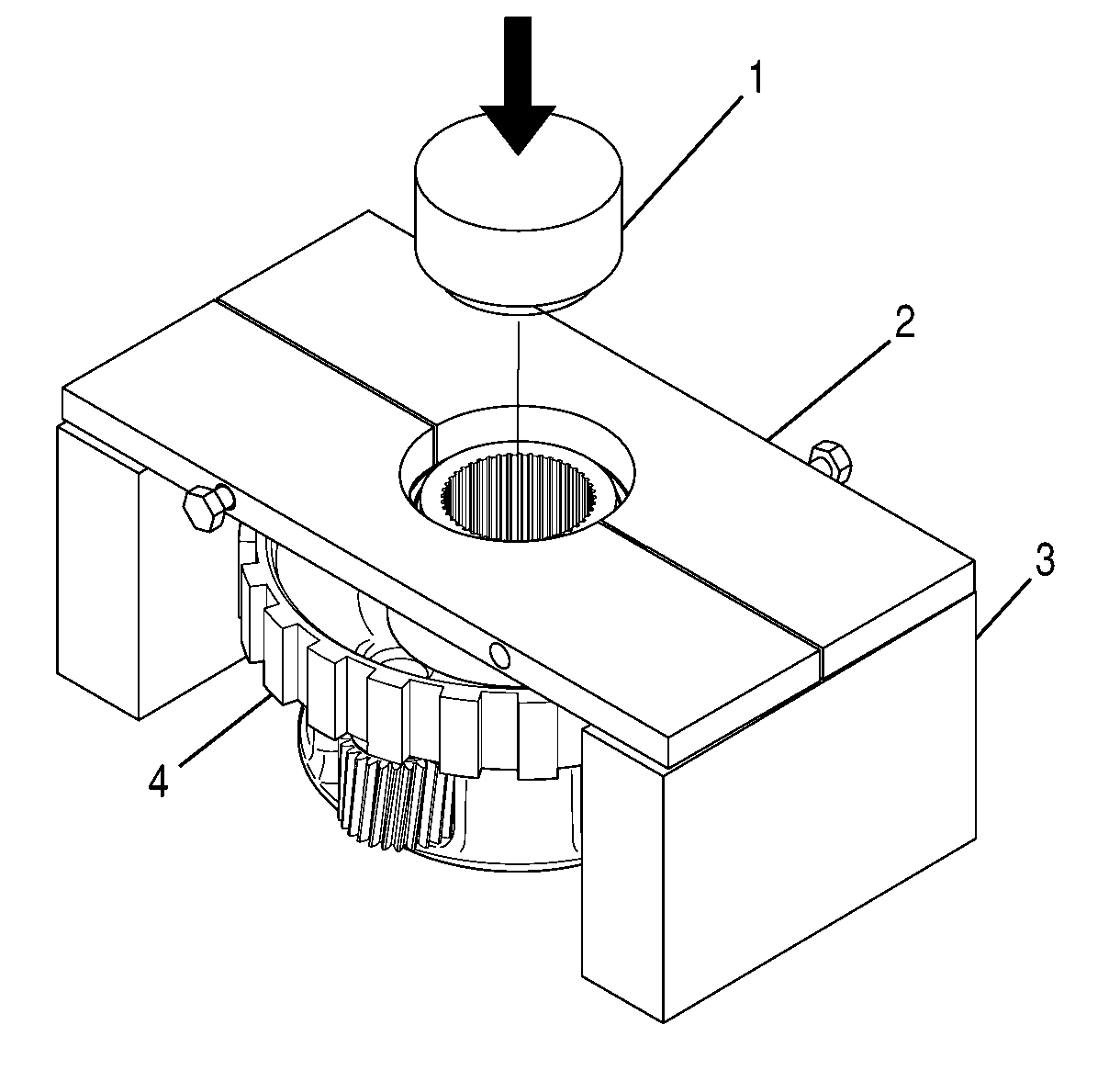

    4. Fig 2: Supporting Output Carrier Assembly On Wood Blocks
    GM1409581Courtesy of GENERAL MOTORS CORP.
  4. Place 2 wooden blocks (3) on the press. Install J 44528-2 remover/installer (1) into the output carrier assembly.
  5. Position the output carrier assembly (4) so that J 44528-1 remover (2) spans the wooden blocks and the front of the carrier is facing down.
    6. CAUTION: Pressing the output planetary carrier from the bearing race causes the output carrier to fall from the bearing race. Make sure the output carrier is safely caught when freed from the bearing race. An uncontrolled output carrier could cause personal injury and/or property damage.
  6. Using J 44528-2 remover/installer (1), press the output carrier assembly (4) from J 44528-1 remover (2).
  7. Remove the bearing race from J 44528-1 remover.
  8. Remove J 44528-2 remover/installer (1) from the output carrier assembly.
