Installation Procedure

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

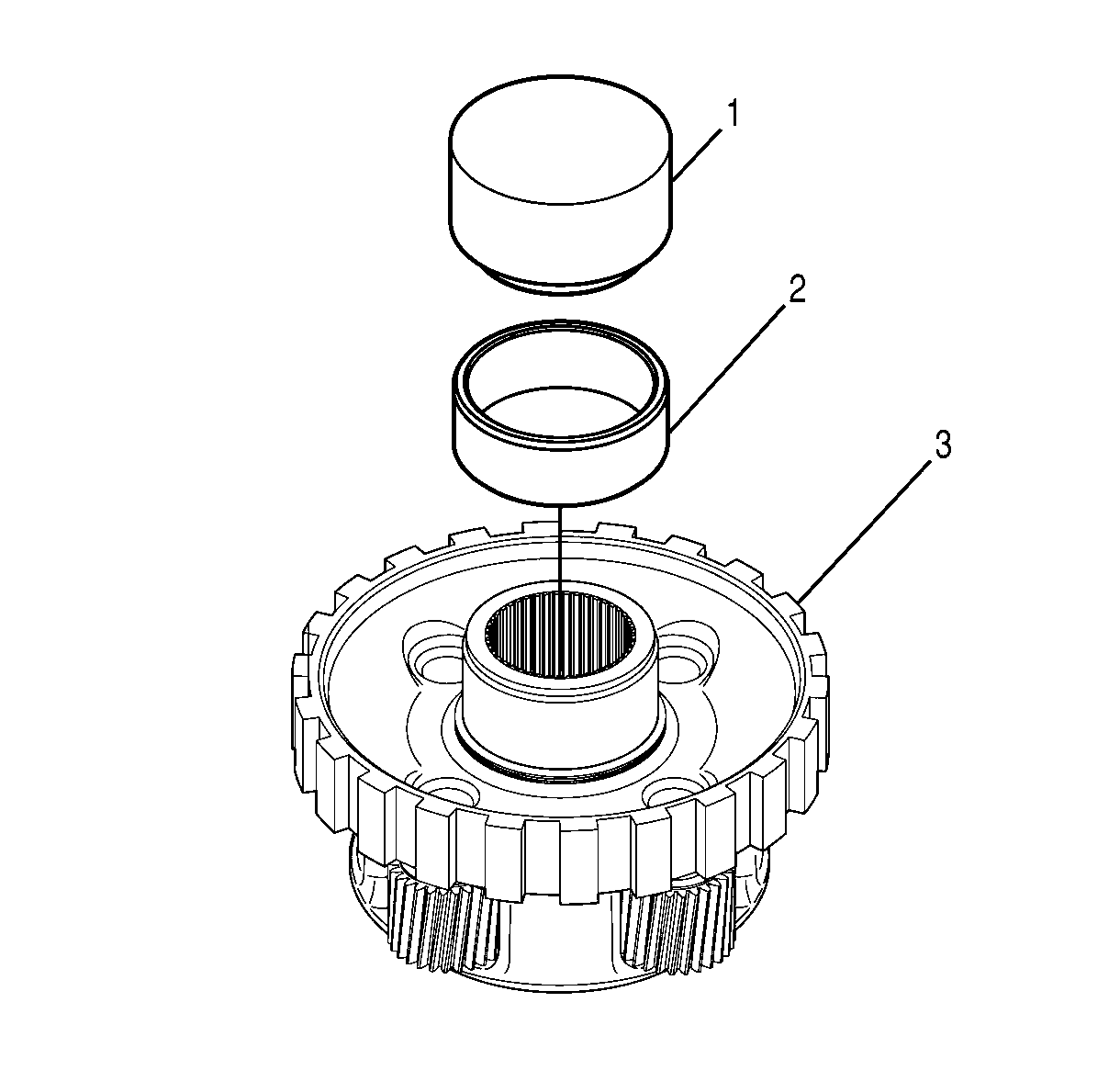

    Fig 1: Installing Output Carrier Assembly Bearing Race
    GM1217233Courtesy of GENERAL MOTORS CORP.
  1. Position the output carrier assembly (3) on the press so that the rear of the carrier is facing up.
  2. Install a new bearing race into J 43797  (1). See Special Tools .
  3. Using J 43797  (1), press the bearing race (2) onto the output carrier assembly (3) until J 43797  seats. See Special Tools .
