2-6 Clutch Backing Plate Inspection
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

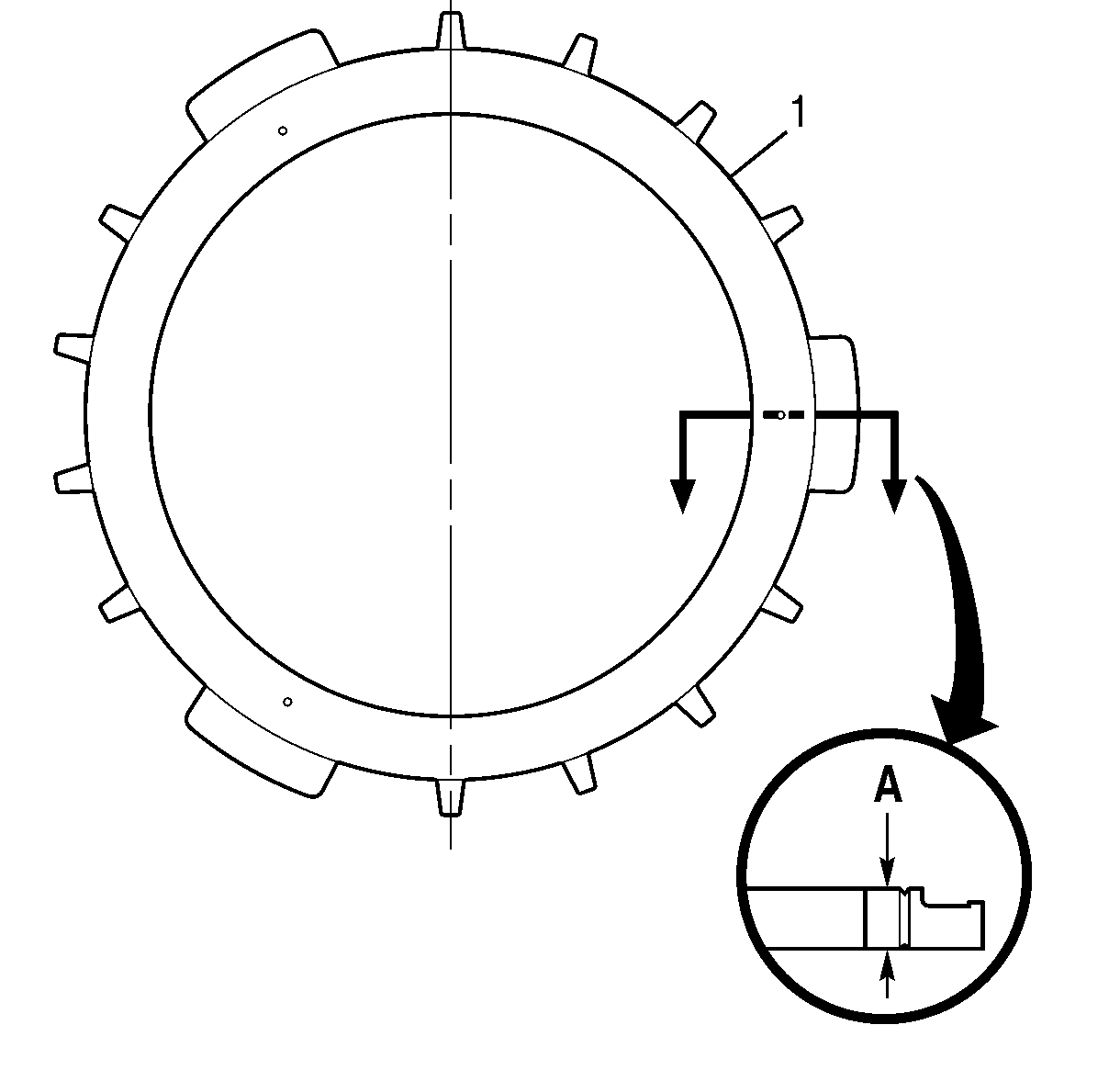

- Measure the thickness of the 2-6 clutch backing plate at dimension A.
Specification: The 2-6 clutch backing plate minimum thickness is 15.400 mm (0.6063 in).
- Measure the cone of the 2-6 clutch backing plate.
- Replace the backing plate (1) if any cone is present.
IMPORTANT:
Perform the following measurements at 3 or more locations.
