Front Output Shaft Assembly Removal

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

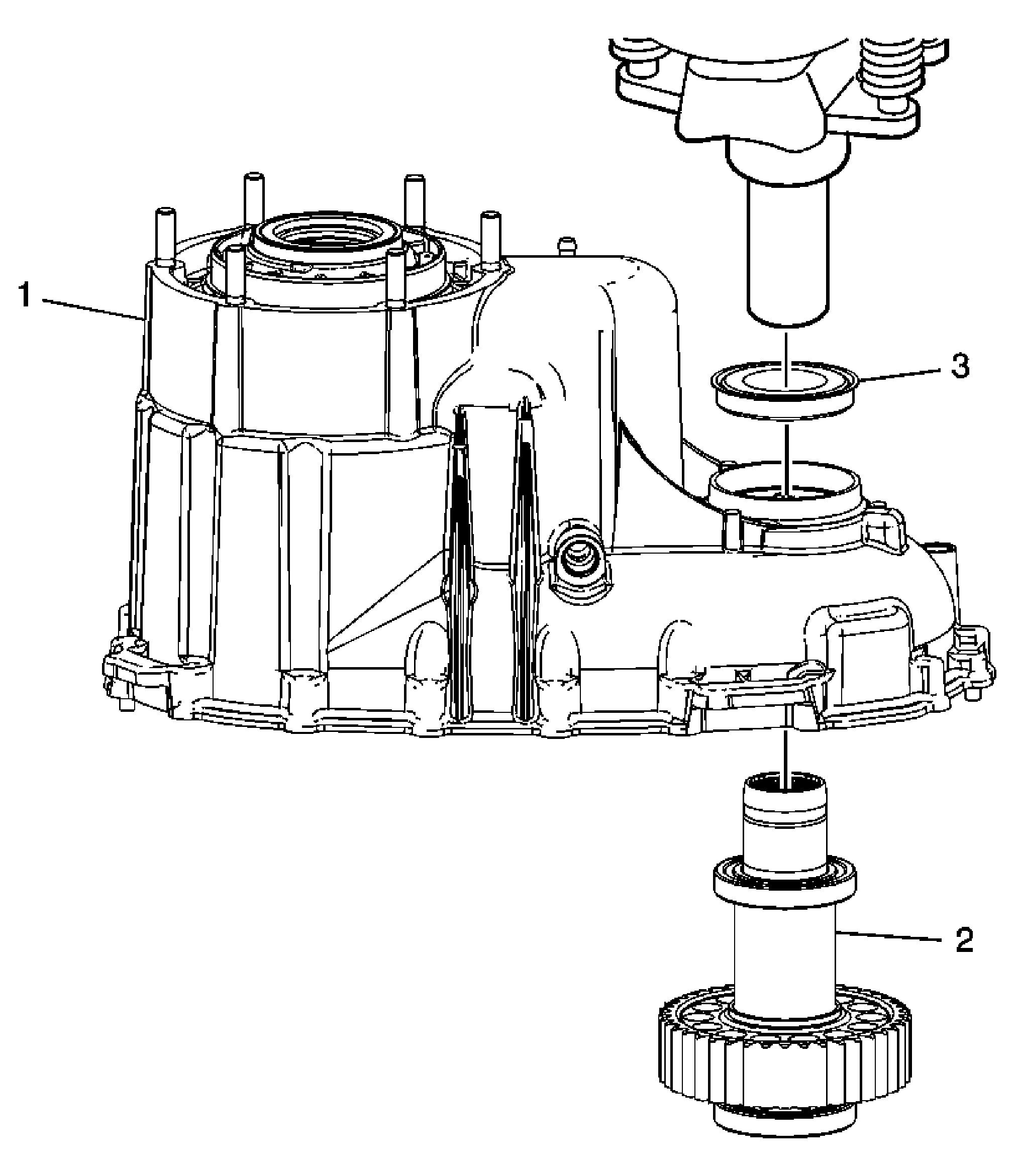

Fig 1: View Of Transfer Case Front Case Half, Output Shaft Assembly, & Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Front Case Half Tip: Place the front case half on an arbor press.
2	Transfer Case Front Output Shaft Assembly Tip: Press the front output shaft assembly from the front case half using an arbor press or soft-face hammer.
3	Transfer Case Front Output Shaft Seal
