Rear Output Shaft Assembly

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

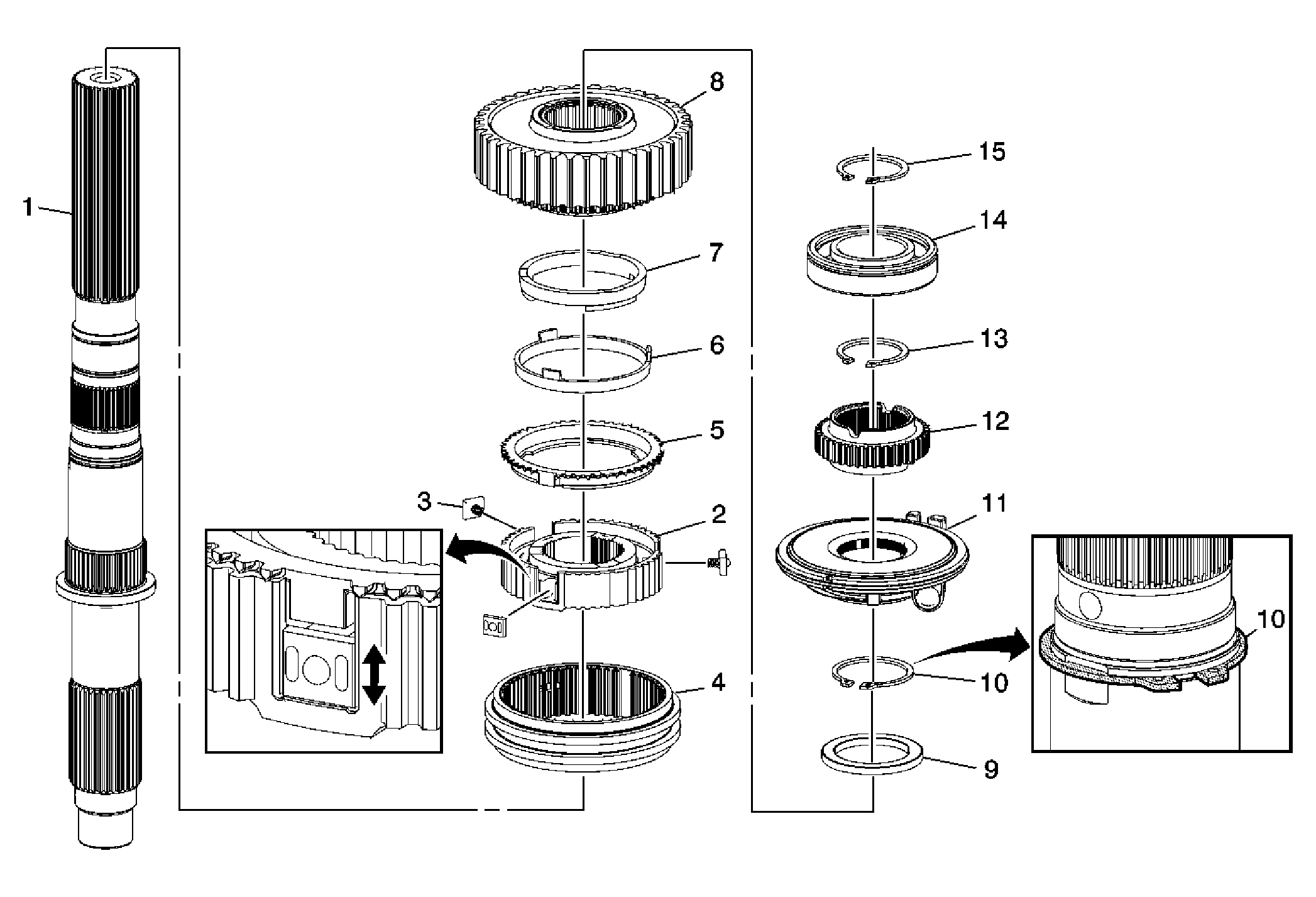

Fig 1: View Of Rear Output Shaft Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Rear Output Shaft
2	Transfer Case Two/Four Wheel Drive Synchronizer Hub
3	Transfer Case Two/Four Wheel Drive Synchronizer Insert (Qty: 3) Tip: Ensure that the inserts are installed in the correct orientation in the synchronizer hub. The inserts should be able to move when correctly installed.
4	Transfer Case Two/Four Wheel Drive Synchronizer Sleeve
5	Transfer Case Two/Four Wheel Drive Synchronizer Assembly
6	Transfer Case Two/Four Wheel Drive Synchronizer Blocking - Outer - Ring
7	Transfer Case Two/Four Wheel Drive Synchronizer Blocking - Inner - Ring
8	Transfer Case Front Output Shaft Drive Sprocket
9	Transfer Case Front Output Shaft Drive Sprocket Spacer - Rear
10	Transfer Case Front Output Shaft Drive Sprocket Retaining Ring
11	Transfer Case Oil Pump Assembly
12	Transfer Case Rear Output Shaft Speed Reluctor Wheel
13	Transfer Case Rear Output Shaft Rear Bearing Retaining Ring
14	Transfer Case Rear Output Shaft Rear Bearing Assembly Tip: Use an arbor press or suitable installer to install the bearing to the rear output shaft. Ensure the retaining ring groove in the outer race is positioned toward the rear.
15	Transfer Case Rear Output Shaft Rear Bearing Retaining Ring
