Fuel Heater Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

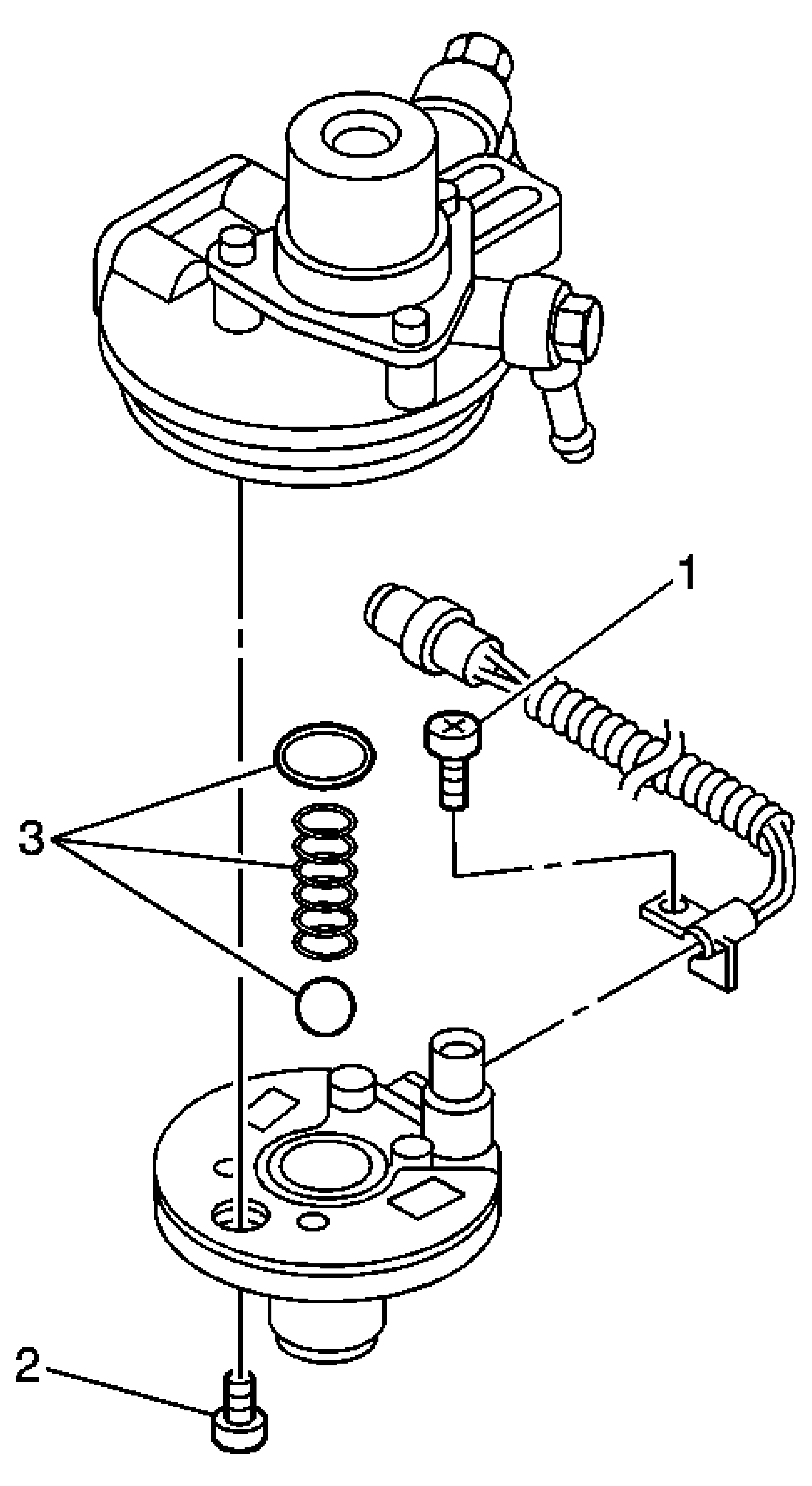

Fig 1: Fuel Heater Replacement
GM2017130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the fuel filter assembly from the vehicle. Refer to Fuel Filter Assembly Replacement .
1 Ground Wire Screw

Procedure

  1. Disconnect the electrical connector.
  2. Hand tighten the ground wire screw until snug.
2 Fuel Heater Screw
Procedure:
Hand tighten the fuel heater screw until snug.
3 Fuel Heater Spring and Seals
Procedure:
Take note of original spring and seal positions.
