Starting and Charging Schematics (HP2)

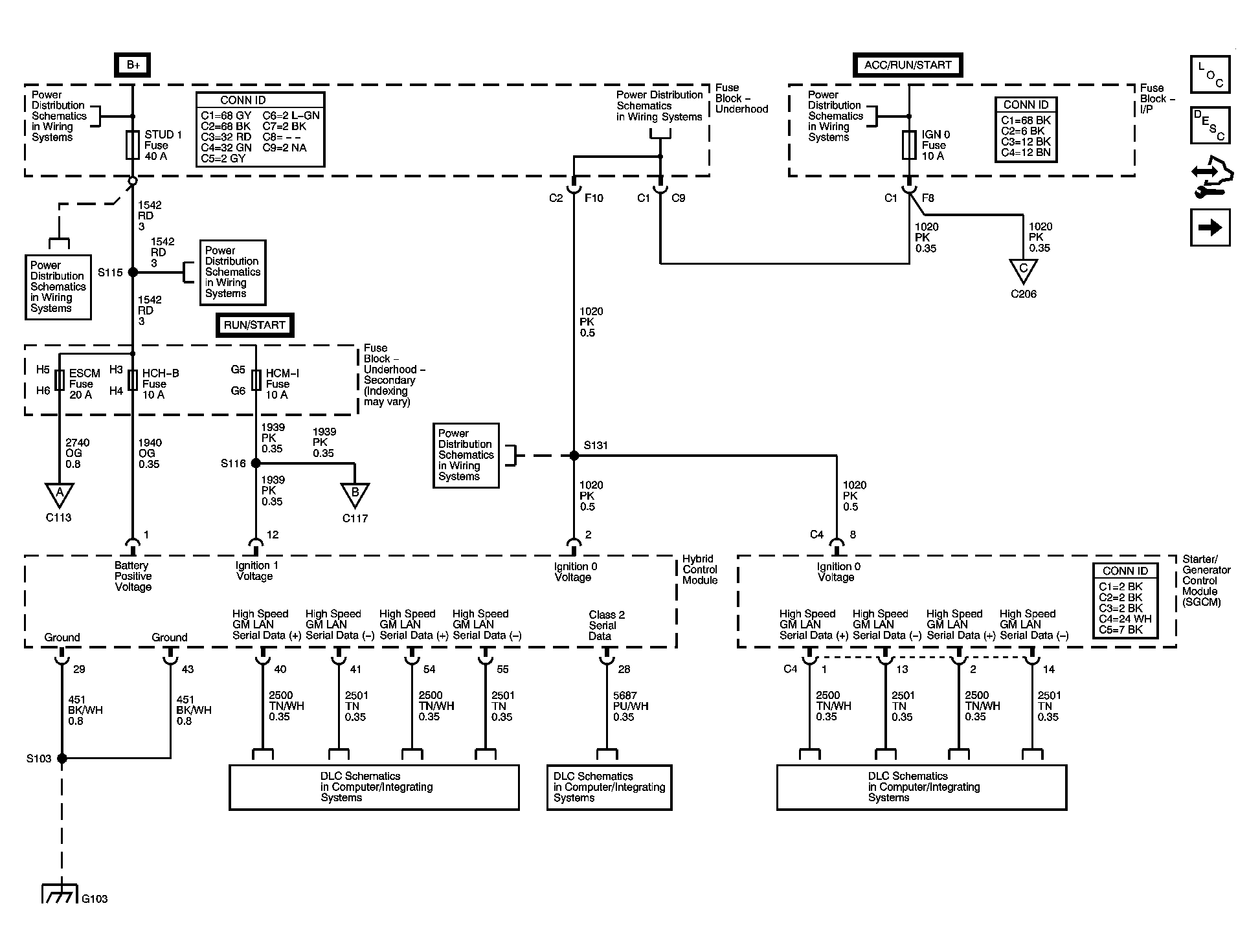

Fig 1: Power, Ground, and Serial Data, Hybrid Control Module and SGCM - 1 of 2

Courtesy of GENERAL MOTORS CORP.

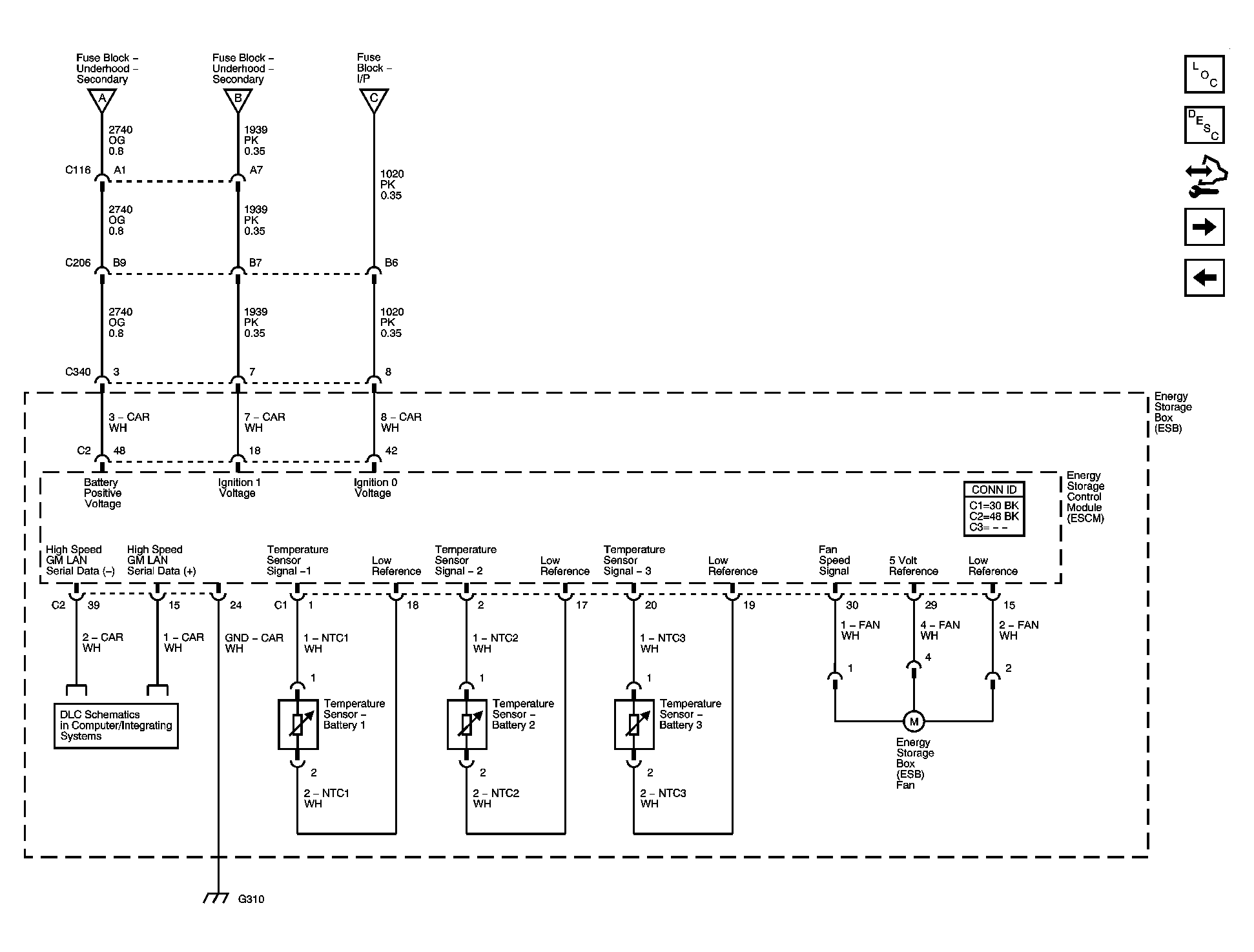

Fig 2: Power, Ground, Serial Data, and ESCM - 2 of 2

Courtesy of GENERAL MOTORS CORP.

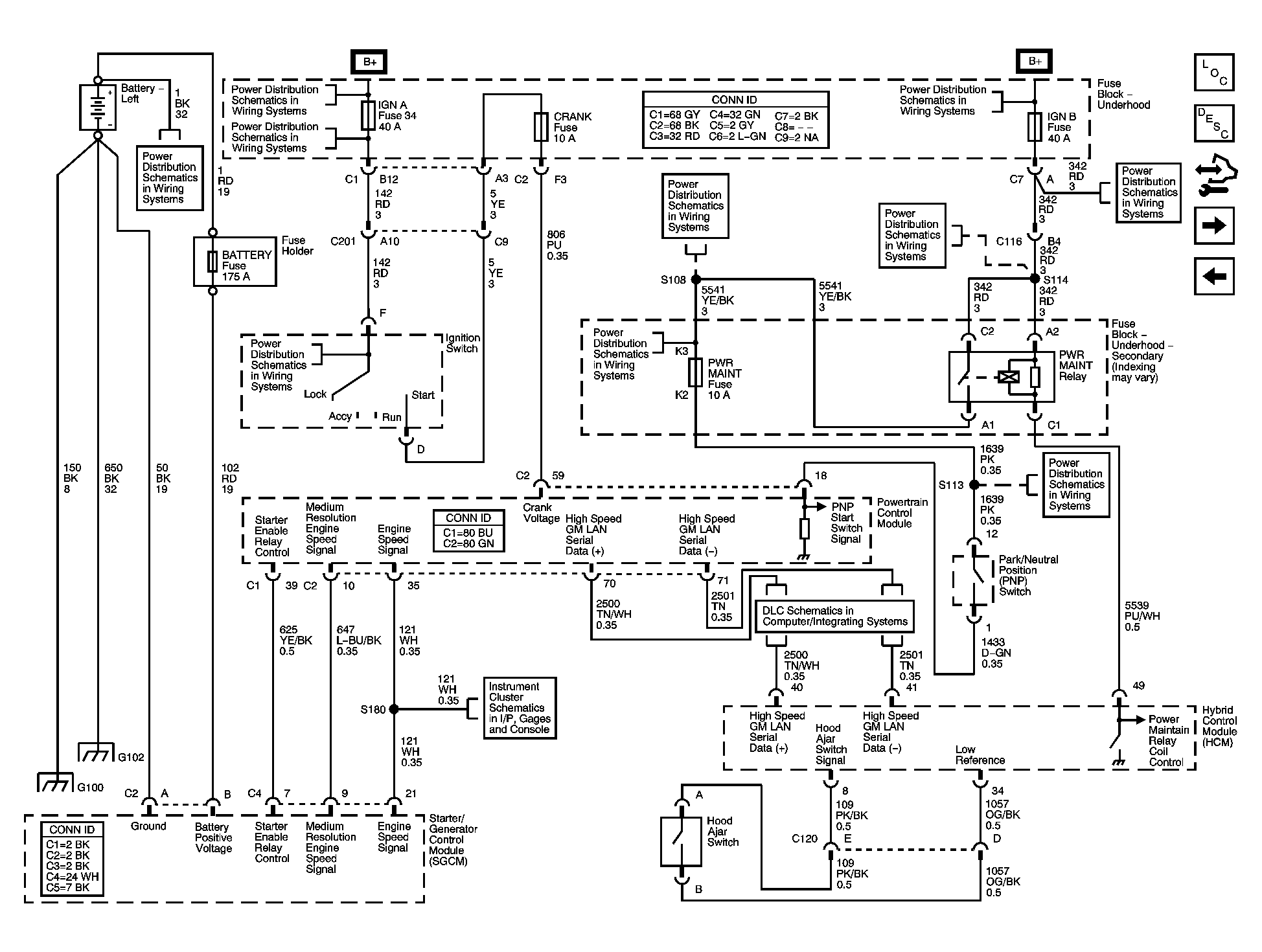

Fig 3: Starting - 1 of 2, and Engine Speed Signal

Courtesy of GENERAL MOTORS CORP.

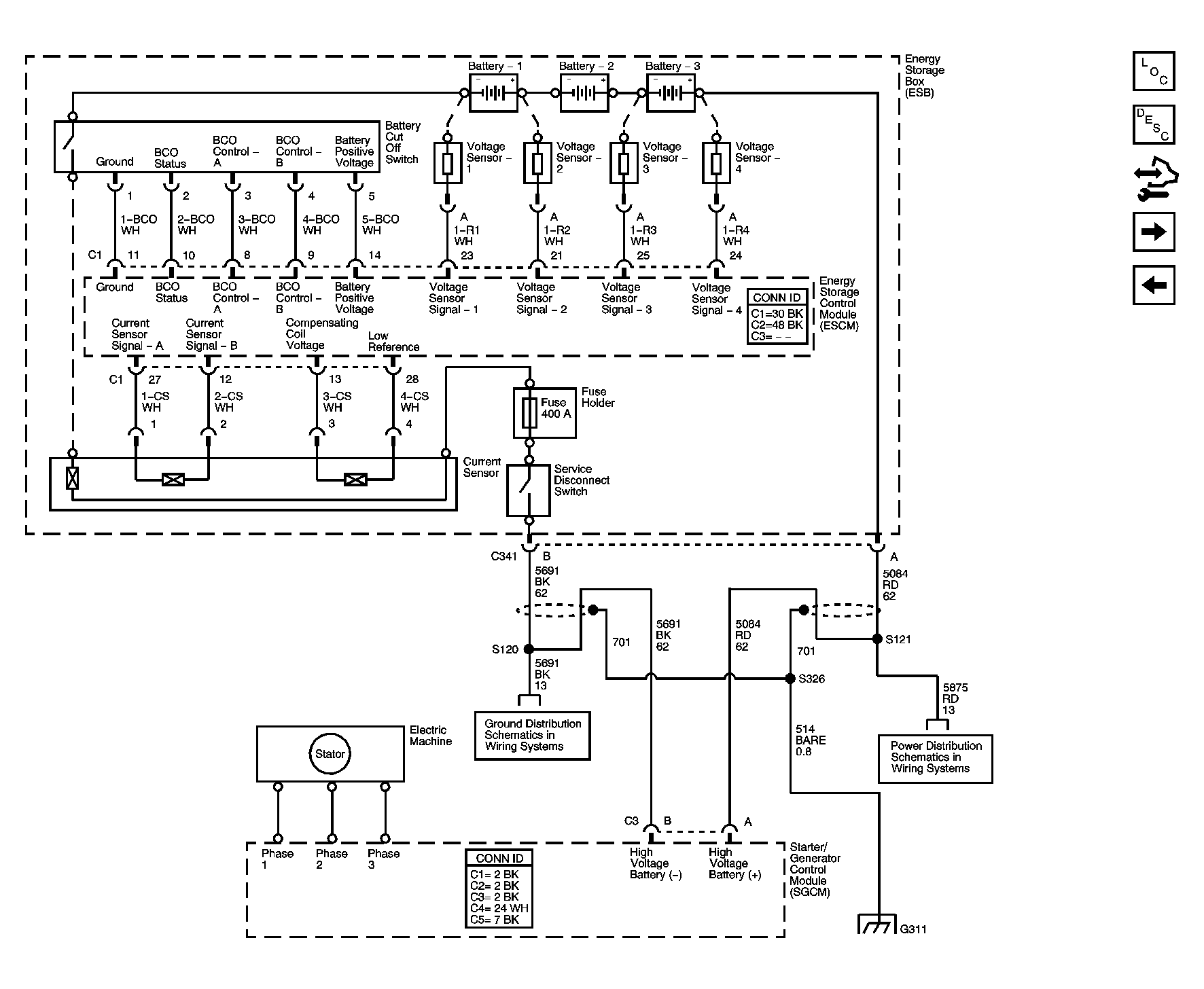

Fig 4: Starting - 2 of 2, and Engine Storage

Courtesy of GENERAL MOTORS CORP.

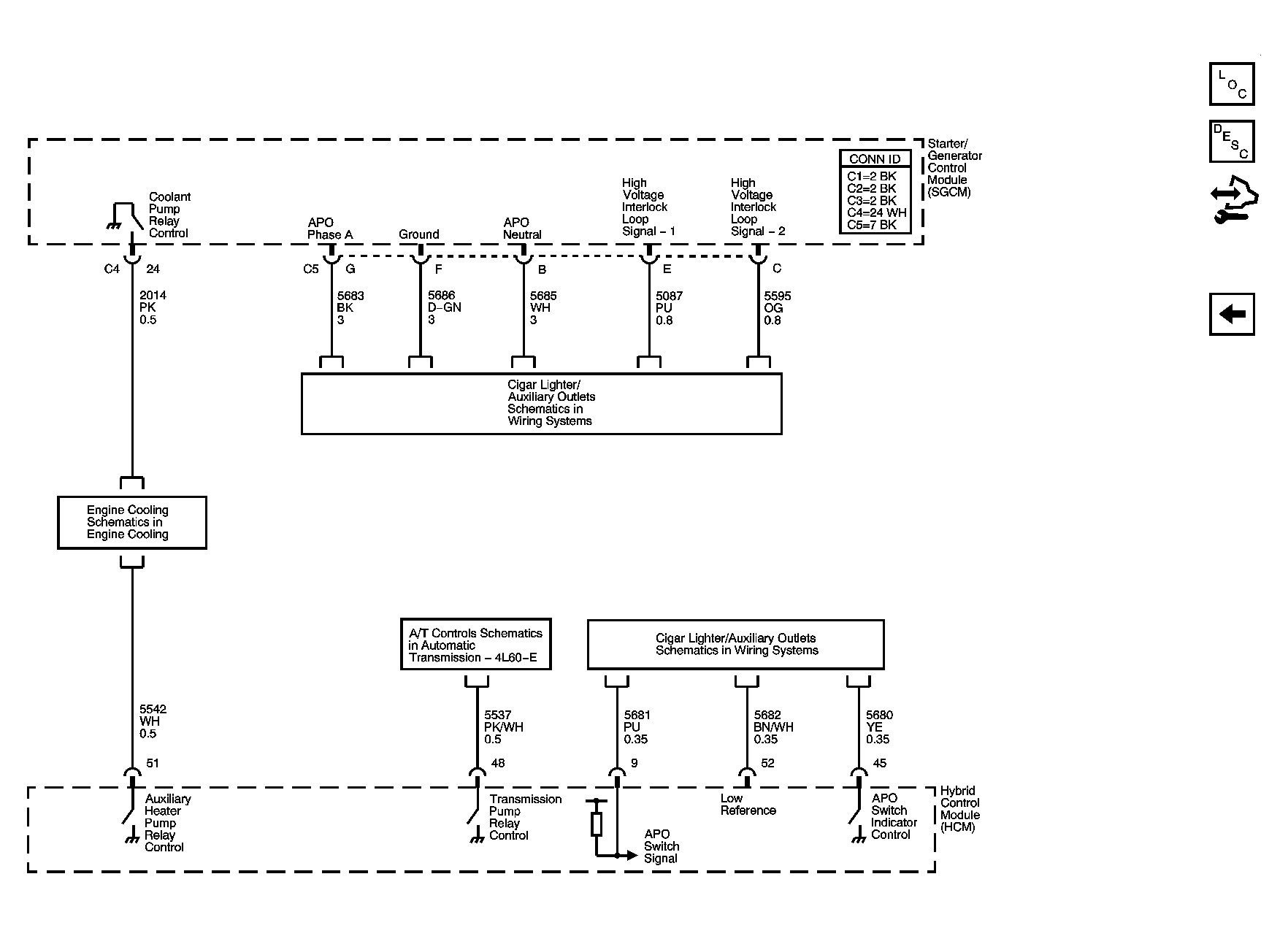

Fig 5: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
