Removal Procedure

  1. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  2. Disconnect the oil level sensor electrical connector (3).

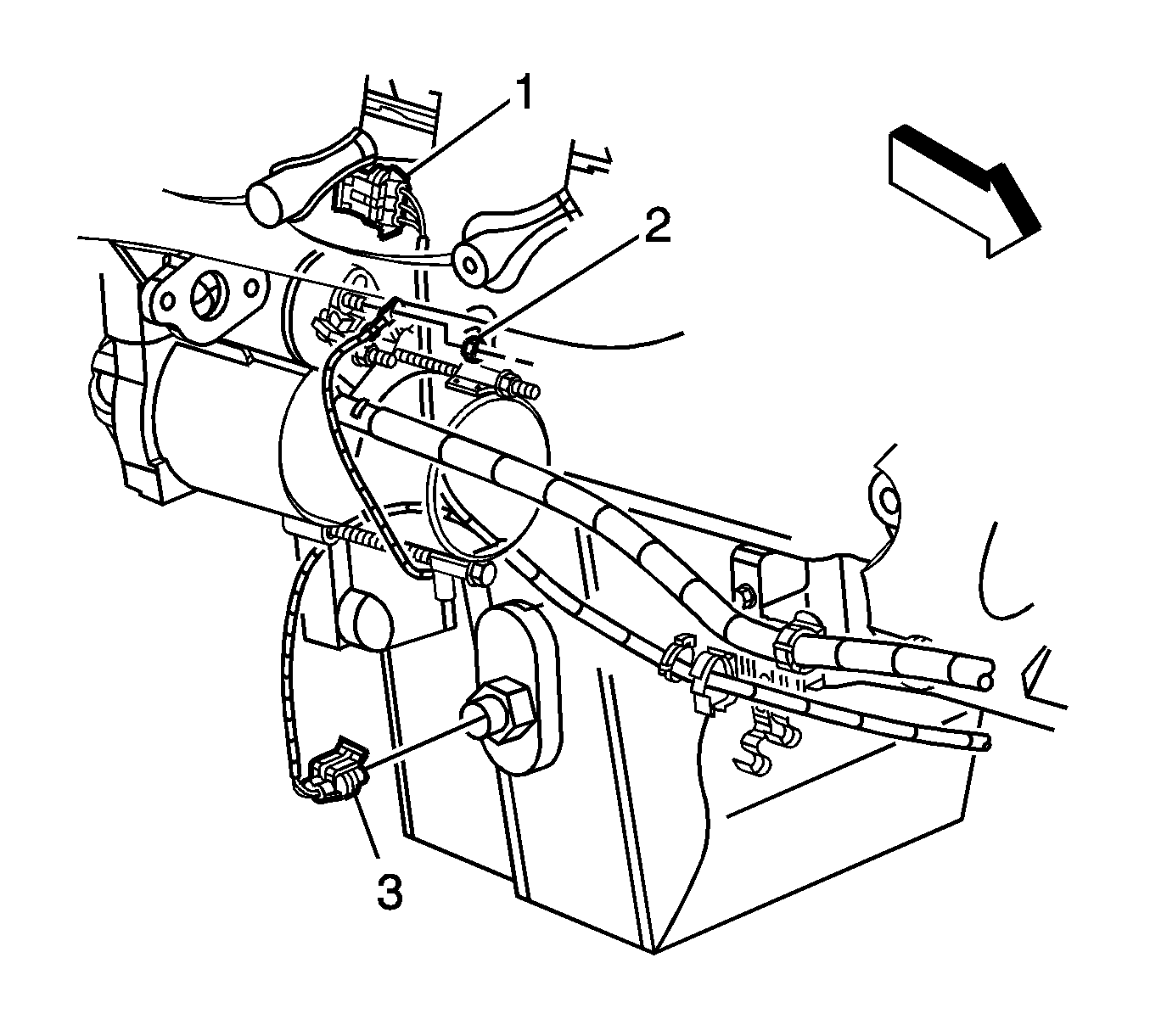

    Fig 1: View Of Oil Level Sensor & CKP Sensor Electrical Connector
    GM1235682Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level sensor from the oil pan.
    Fig 2: View Of Oil Level Sensor
    GM260123Courtesy of GENERAL MOTORS CORP.
