Removal Procedure

  1. Remove the exhaust manifold. Refer to Exhaust Manifold Replacement - Right (4.8L, 5.3L, and 6.0L Engines) in Engine Exhaust.
  2. Remove the engine mount-to-engine mount bracket bolts.

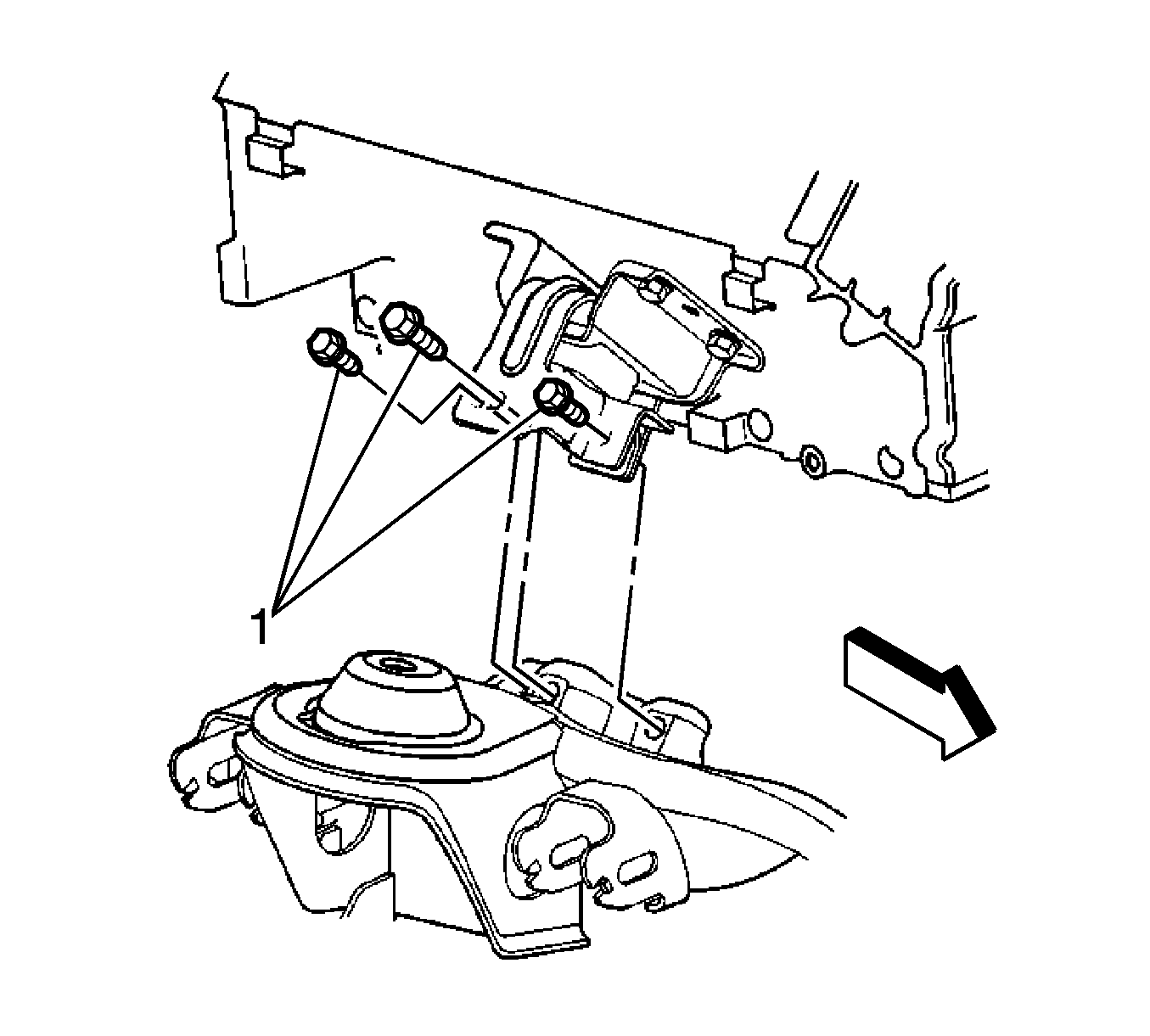

    Fig 1: View Of Engine Mount-To-Engine Mount Bracket
    GM307275Courtesy of GENERAL MOTORS CORP.
  3. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  4. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  5. Remove the inner wheelhouse panel. Refer to Wheelhouse Panel Replacement in Body Front End.
  6. Remove the engine protection shield, if equipped. Refer to Engine Protection Shield Replacement in Frame and Underbody.
    7. IMPORTANT: DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.
  7. Raise and suitably support the engine using adjustable (screw type) jack stands.
  8. Remove the engine mount to engine bolts.
  9. Remove the right engine mount.
    Fig 2: View Of Right Engine Mount & Bolts
    GM307279Courtesy of GENERAL MOTORS CORP.
