Removal Procedure

NOTE: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the wheelhouse panel from the vehicle. Refer to Wheelhouse Panel Replacement in Body front End.
  4. For vehicles with 4WD, remove the front propeller shaft. Refer to Propeller Shaft Replacement - Front in Propeller Shaft.
    5. IMPORTANT: DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.
  5. Raise and suitably support the engine using adjustable (screw type) jack stands.
  6. Remove the engine mount-to-engine mount bracket bolts. (Right side shown, left side similar).
    Fig 1: View Of Engine Mount-To-Engine Mount Bracket
    GM307275Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine mount bolts.
  8. Remove the left engine mount.

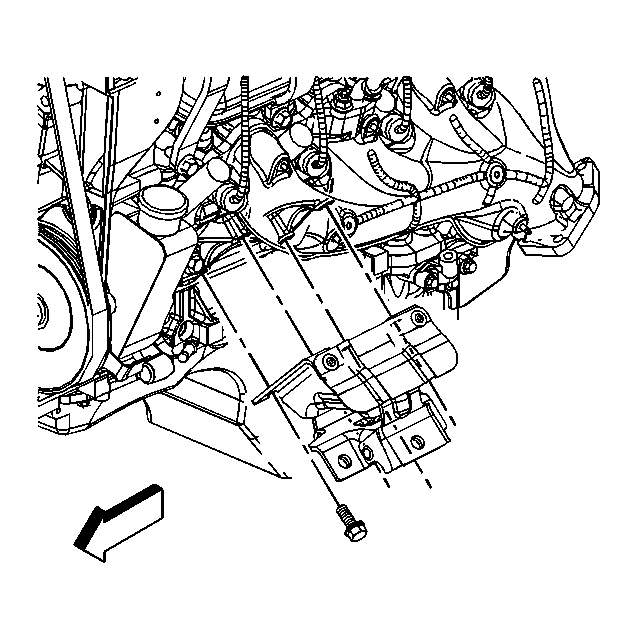

    Fig 2: View Of Left Engine Mount & Bolts
    GM679415Courtesy of GENERAL MOTORS CORP.
