Engine Cooling Wiring Schematics

Fig 1: Engine Cooling System Wiring Schematic - 8.1L and Diesel
GM1570284Courtesy of GENERAL MOTORS CORP.

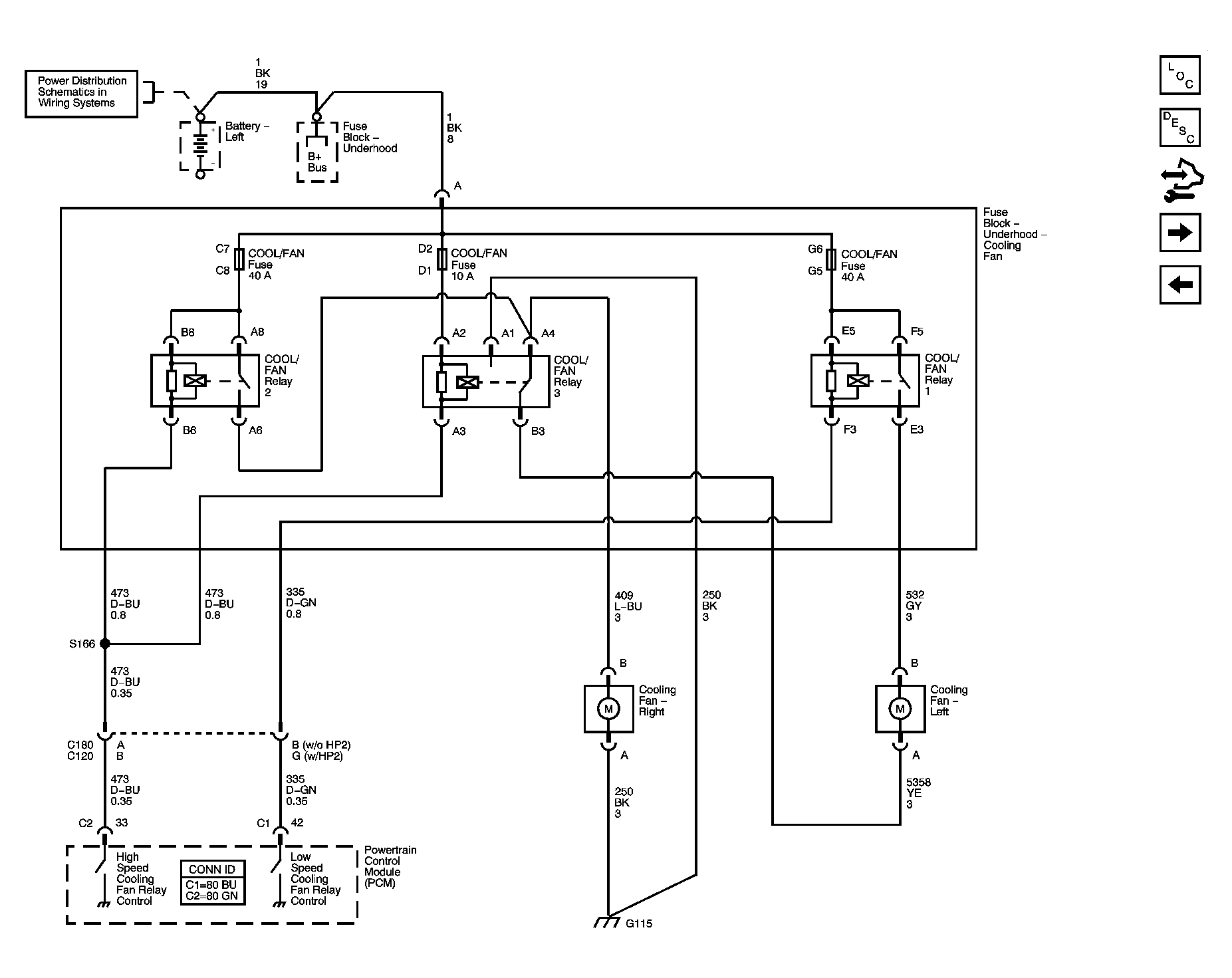

Fig 2: Engine Cooling System Wiring Schematic - 10 Series
GM1570285Courtesy of GENERAL MOTORS CORP.

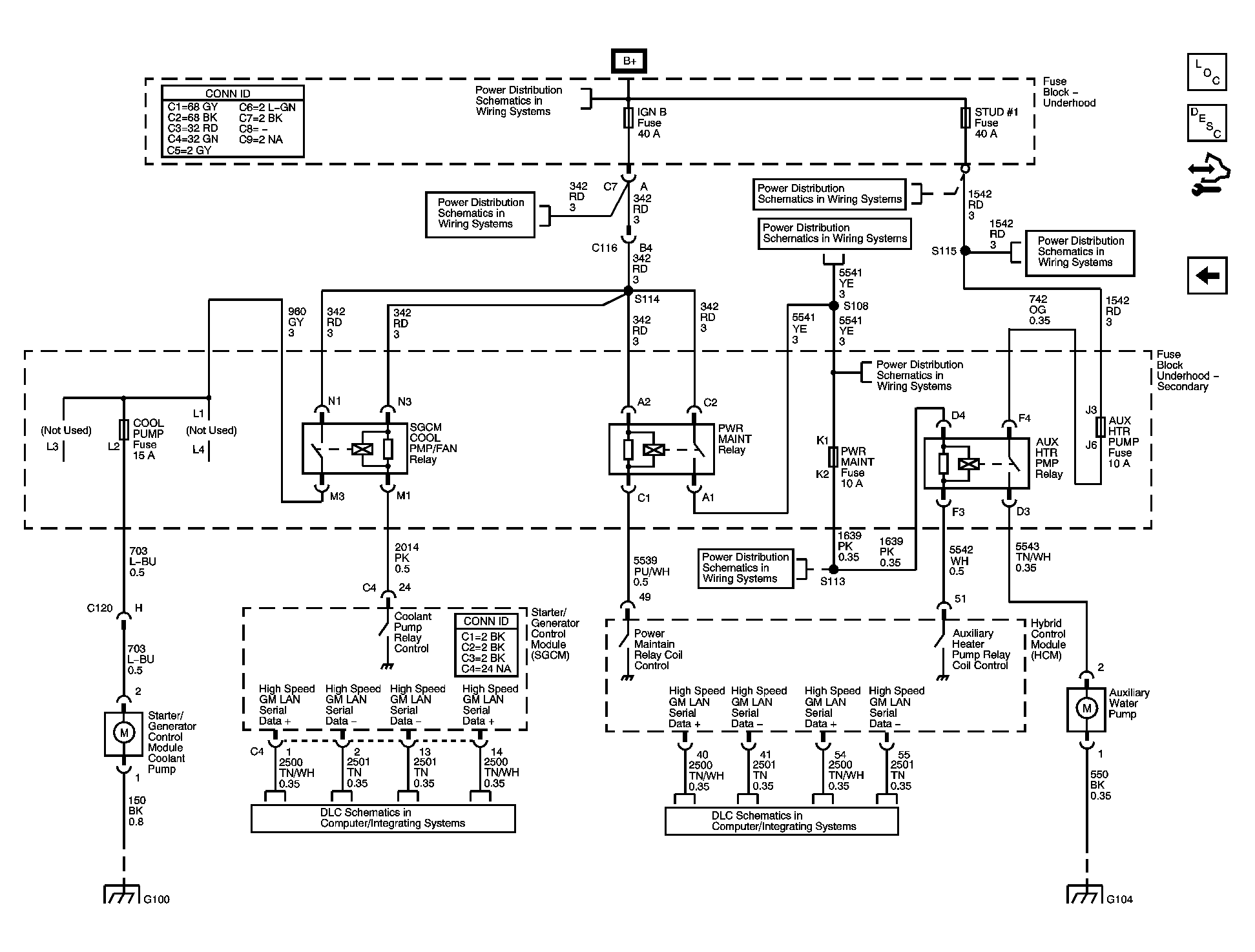

Fig 3: Engine Cooling System Wiring Schematic - HP2
GM1570286Courtesy of GENERAL MOTORS CORP.
