Power Distribution Schematics

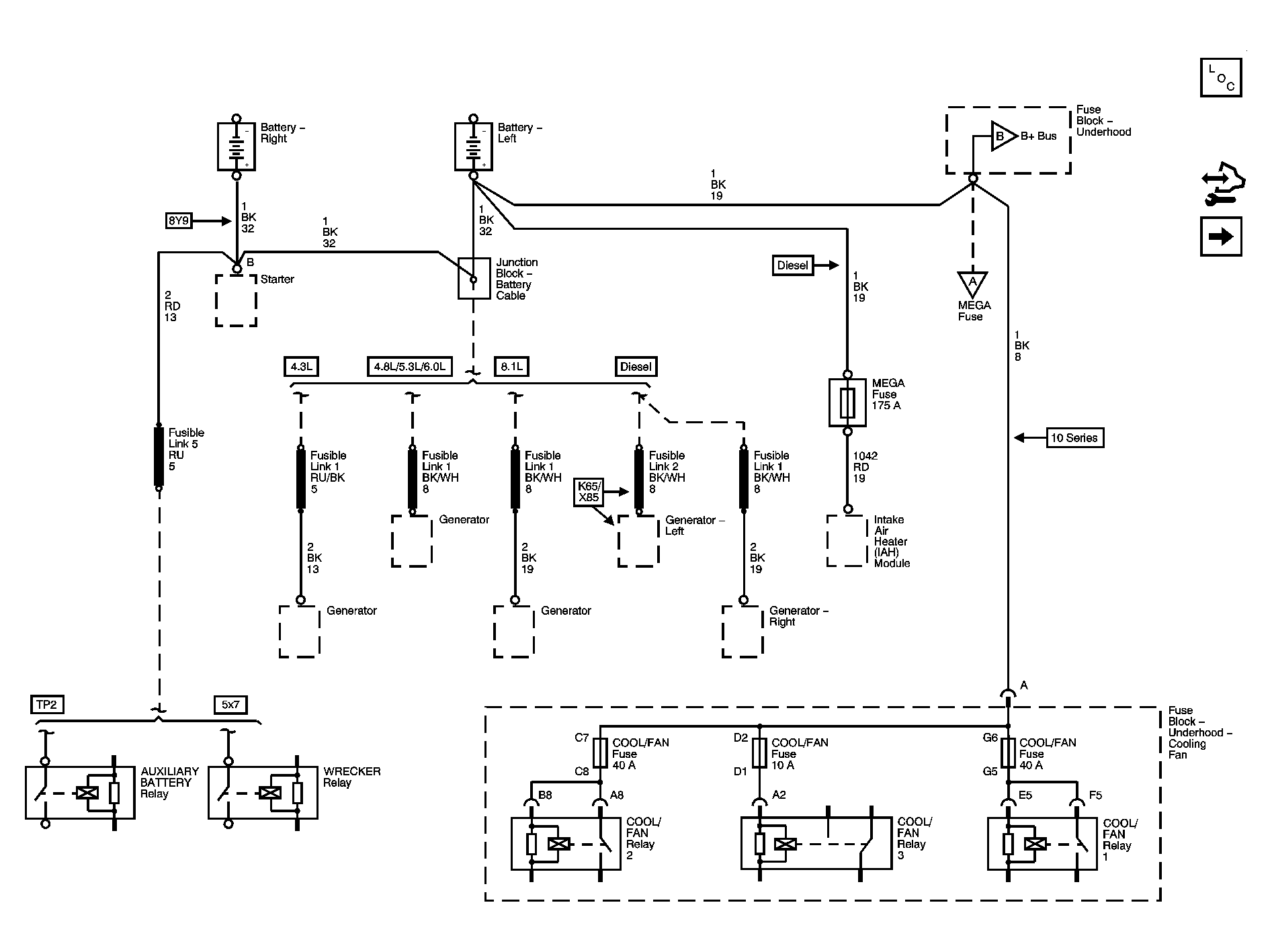

Fig 1: Battery Supply (1 of 2)

GM1570235

Courtesy of GENERAL MOTORS CORP.

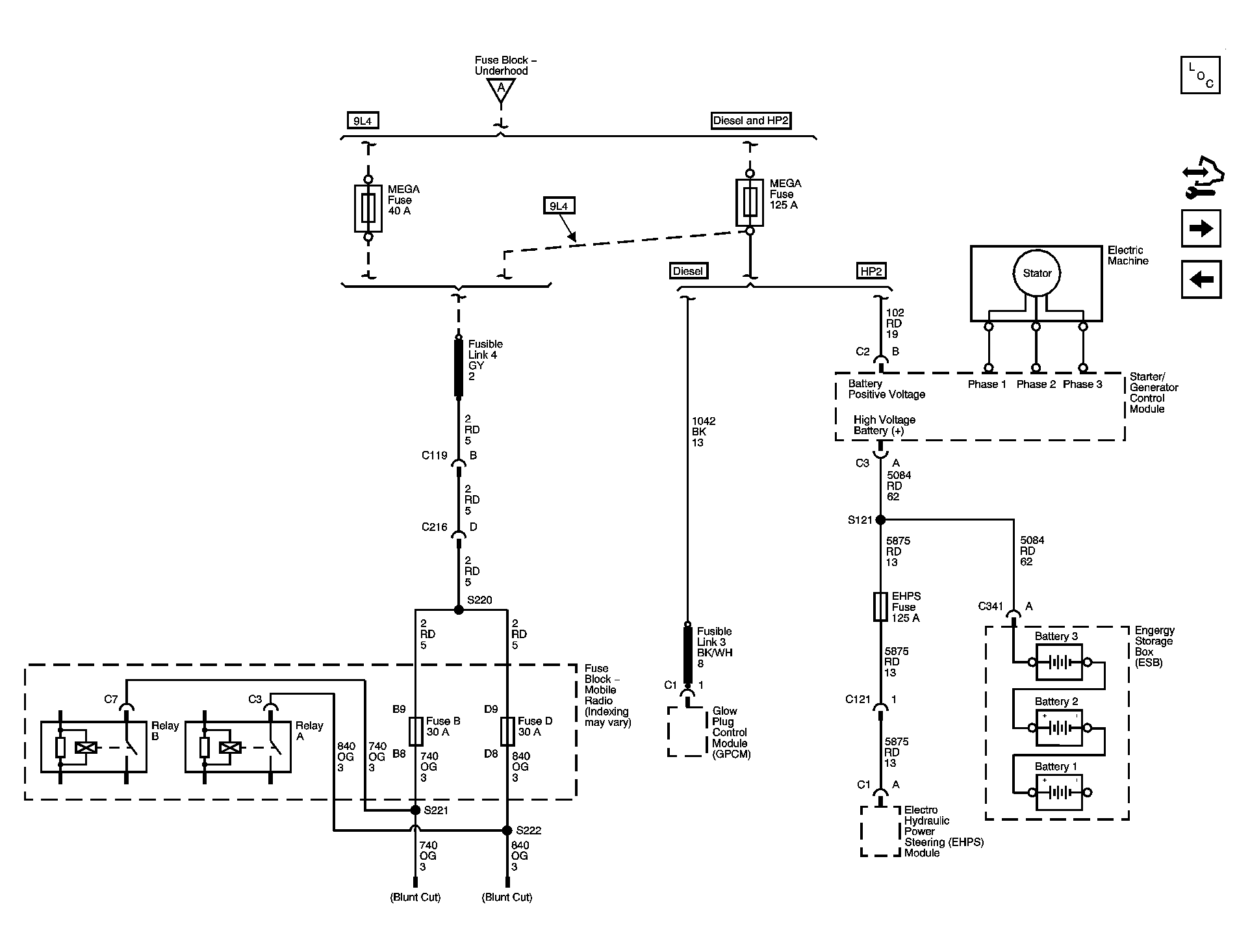

Fig 2: Battery Supply (2 Of 2)

GM1570236

Courtesy of GENERAL MOTORS CORP.

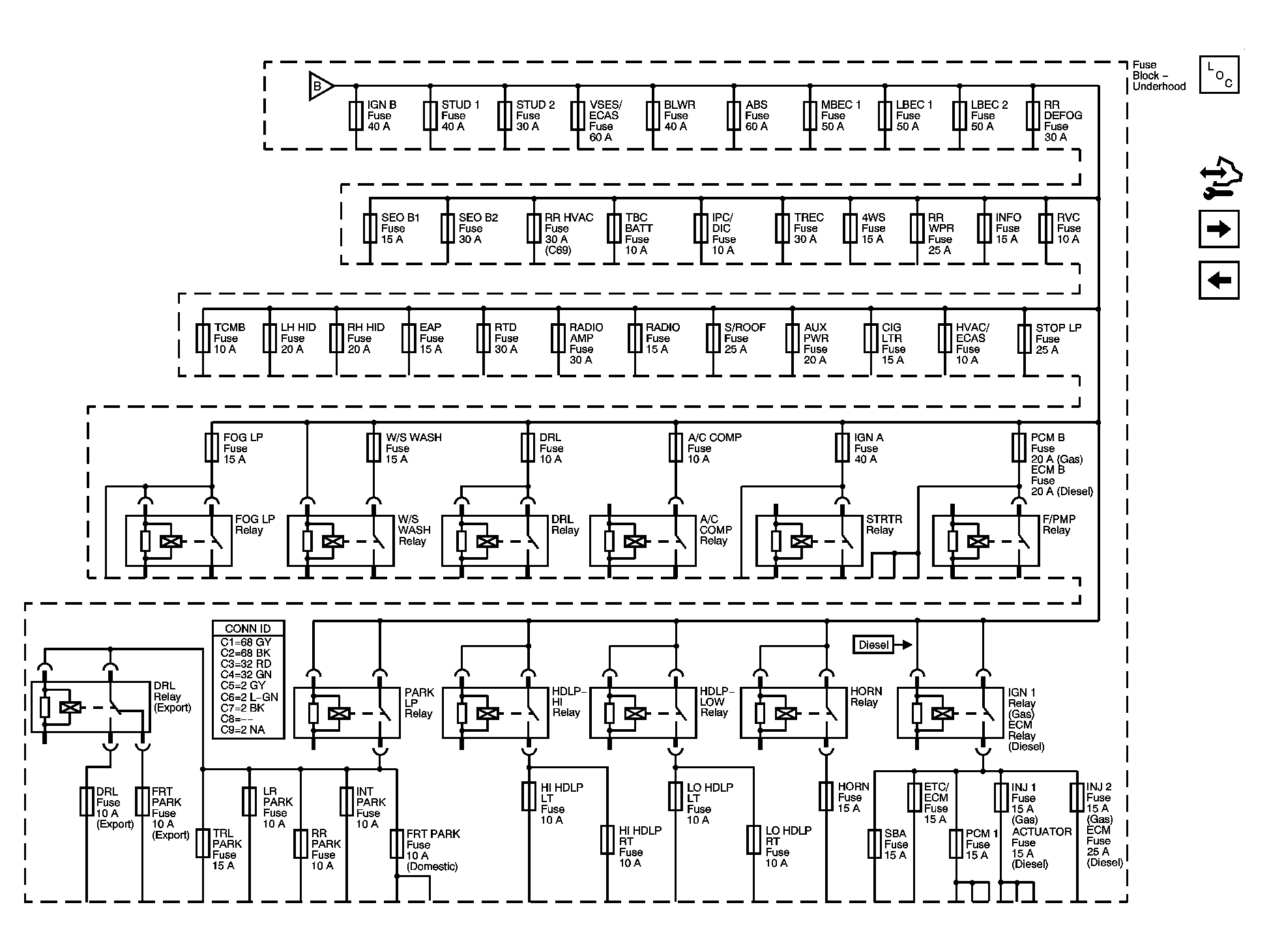

Fig 3: B+ Bus Bar

GM1570237

Courtesy of GENERAL MOTORS CORP.

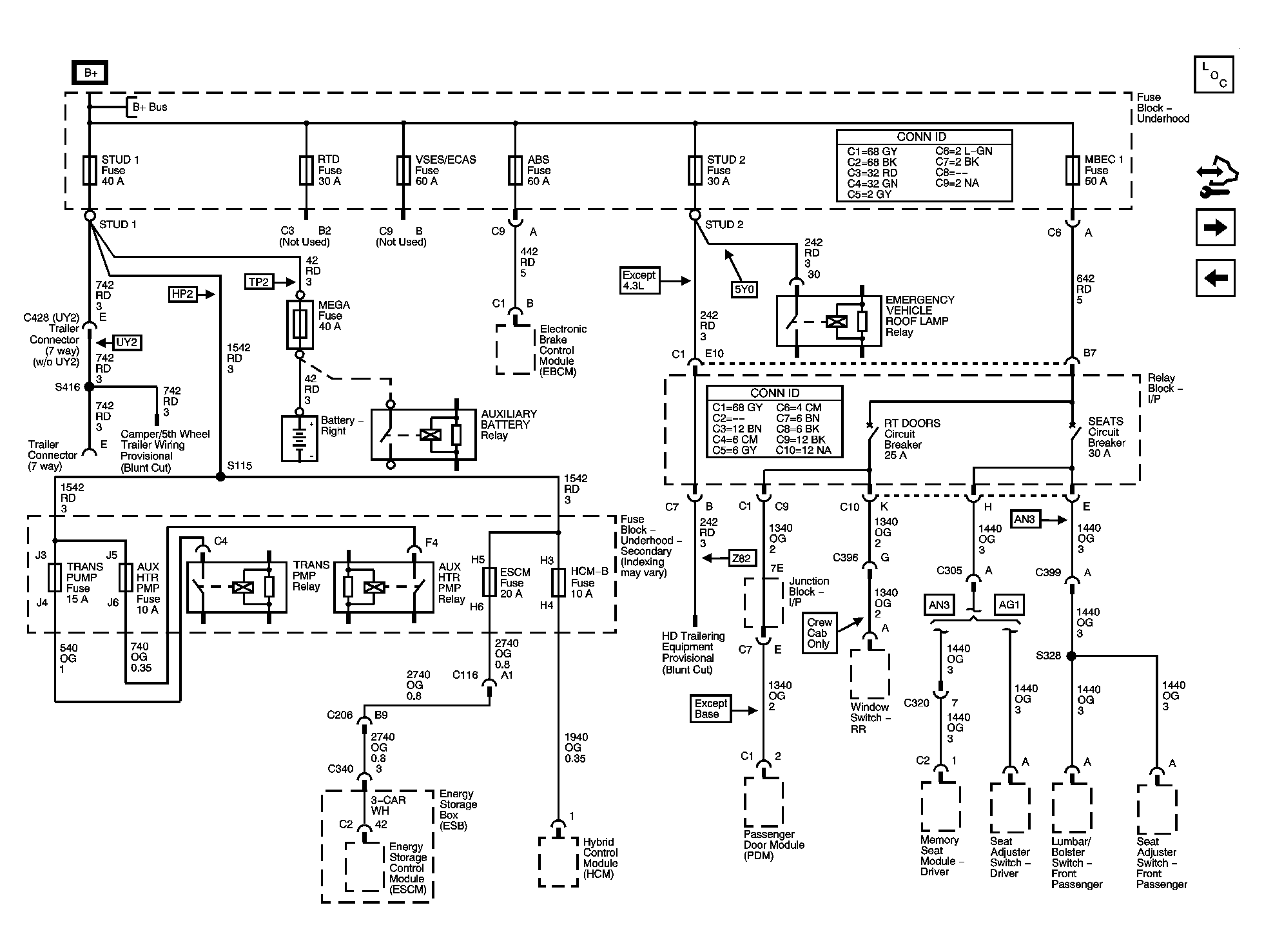

Fig 4: ABS, AUX HTR PMP, ESCM, HCM-B, MBEC1, RTD, STUD 1, STUD 2, TRANS PCMP, VSES/ECAS Fuses and RT DOOR, SEAT Circuit Breakers

GM1570238

Courtesy of GENERAL MOTORS CORP.

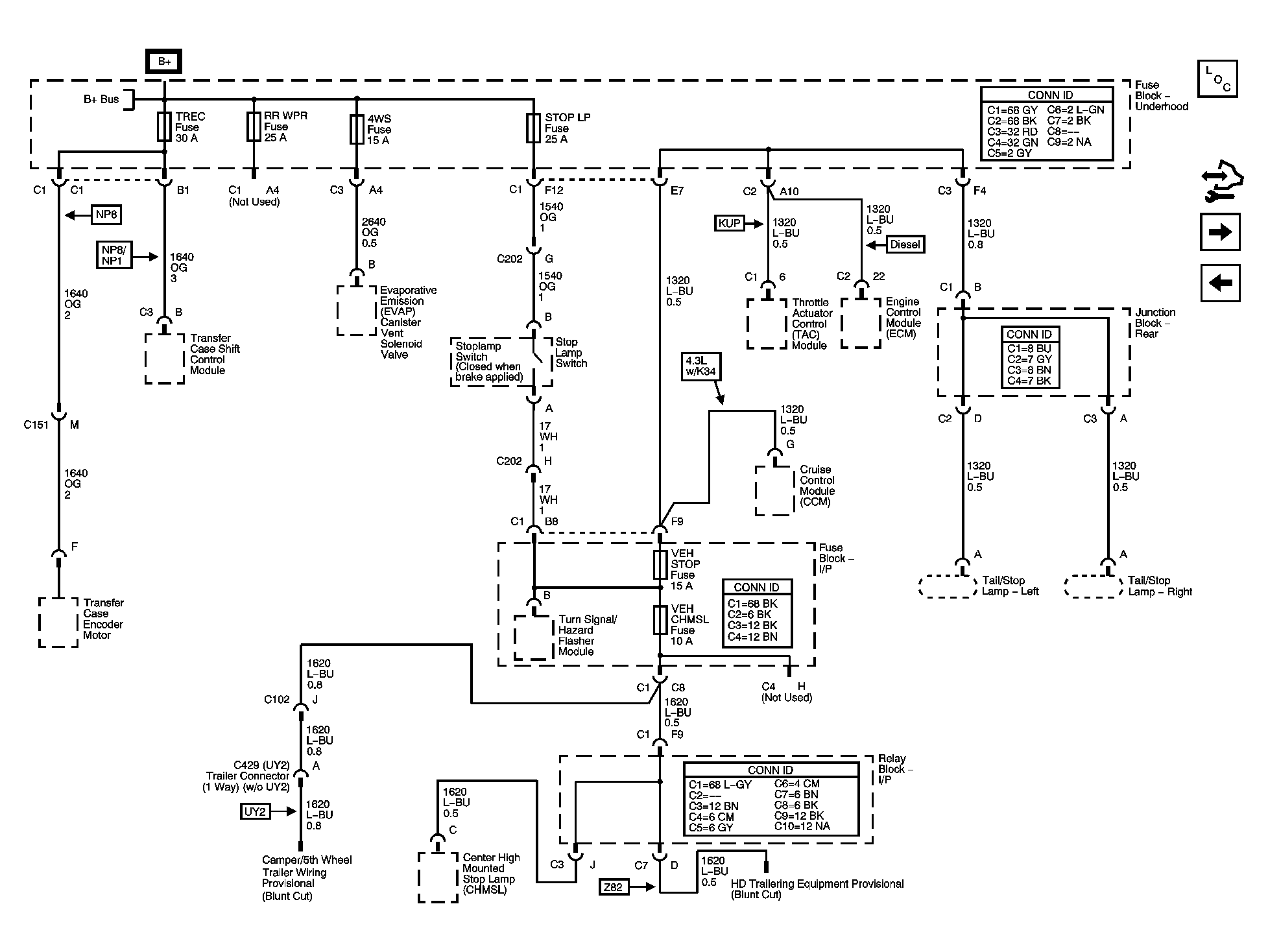

Fig 5: 4WS, RR WPR, STOP LP, TREC, VEH STOP, and VEH CHMSL Fuses

GM1570239

Courtesy of GENERAL MOTORS CORP.

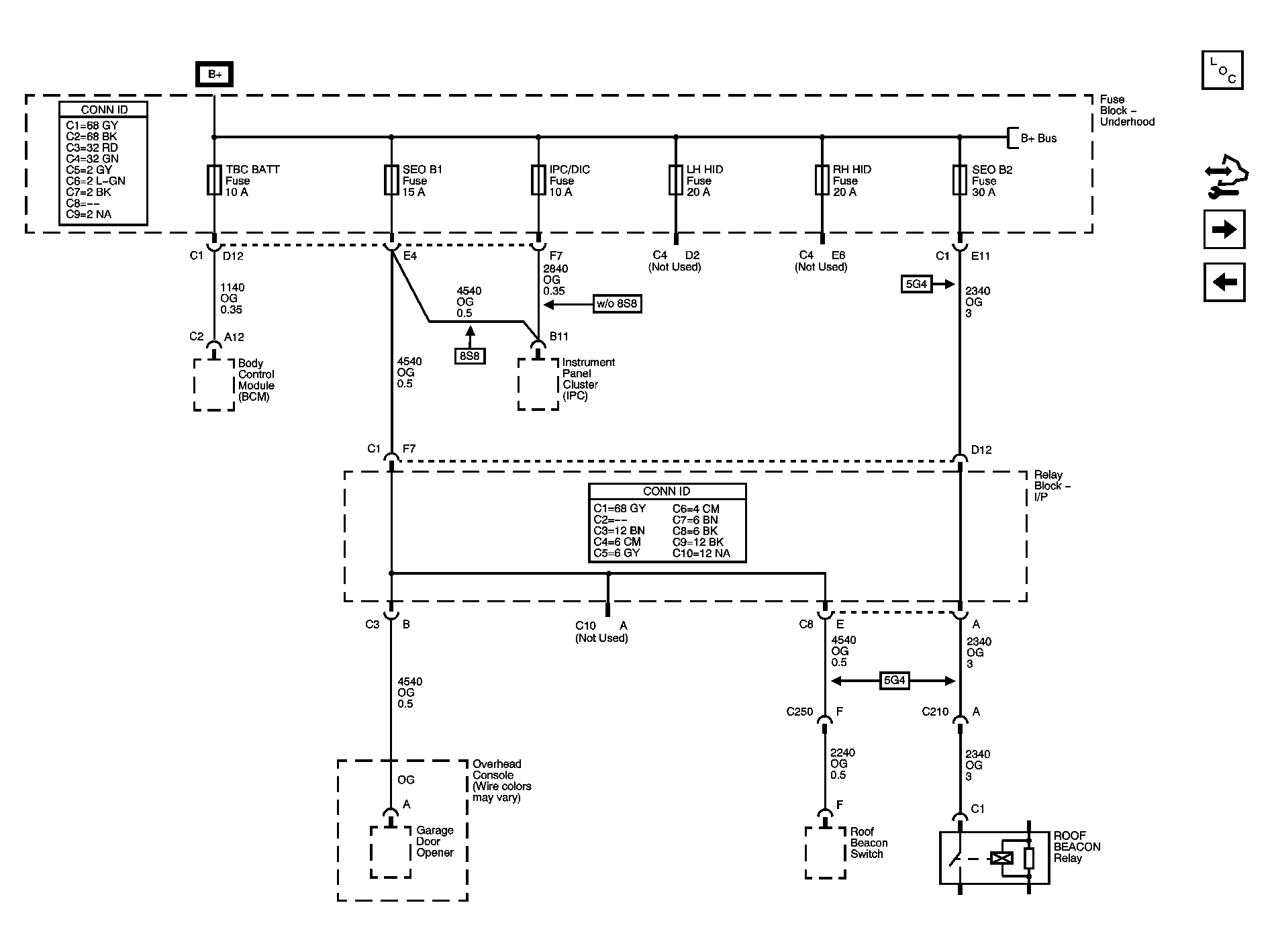

Fig 6: IPC/DIC, LH HID, RH HID, SEO B1, SEO B2, and TBC BATT Fuses

GM1570241

Courtesy of GENERAL MOTORS CORP.

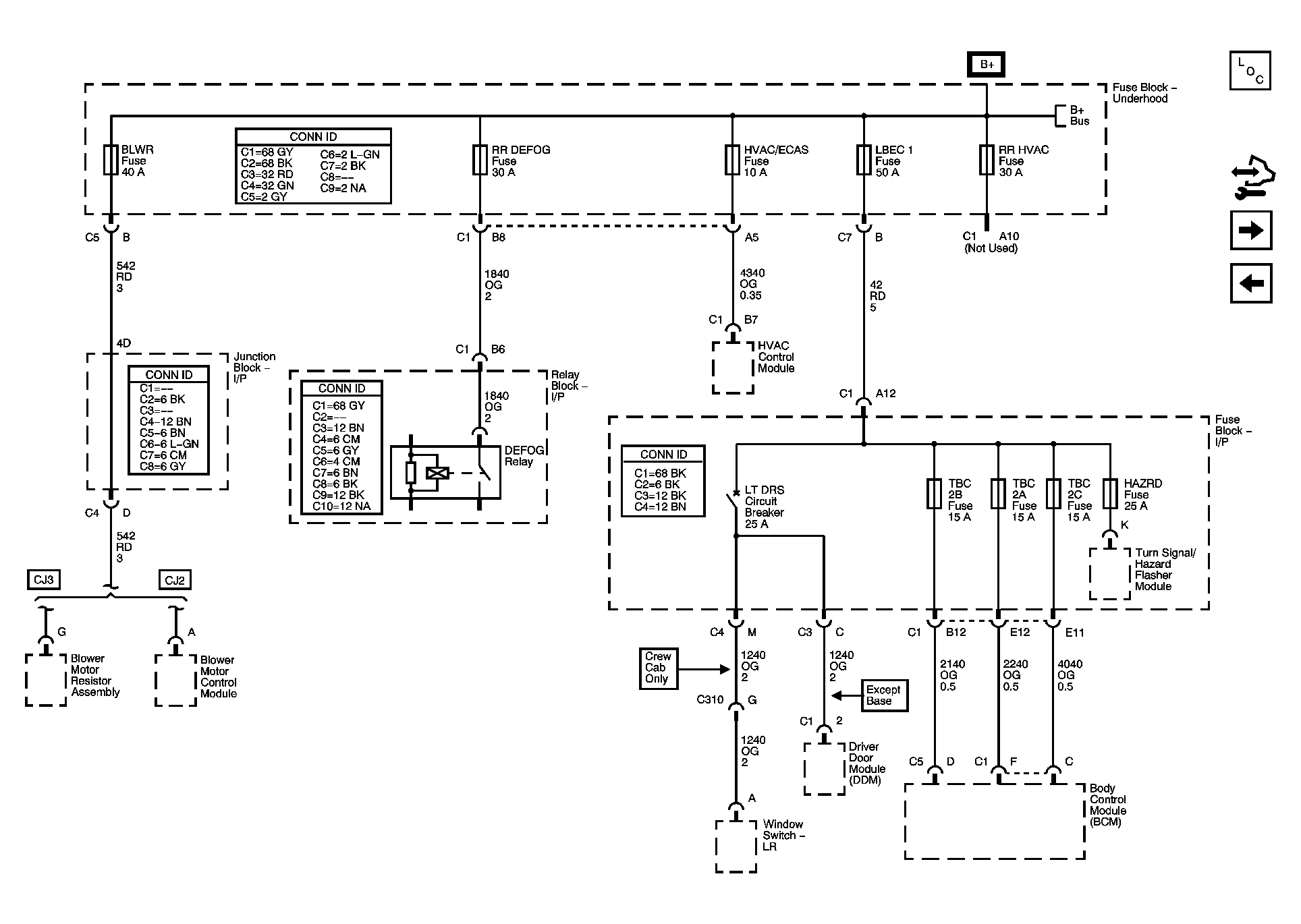

Fig 7: BLWR, HAZRD, HVAC/ECAS, LBEC 1, RR DEFOG, RR HVAC, TBC 2A, TBC 2B, and TBC 2C Fuses and LT DRS Circuit Breaker

GM1570242

Courtesy of GENERAL MOTORS CORP.

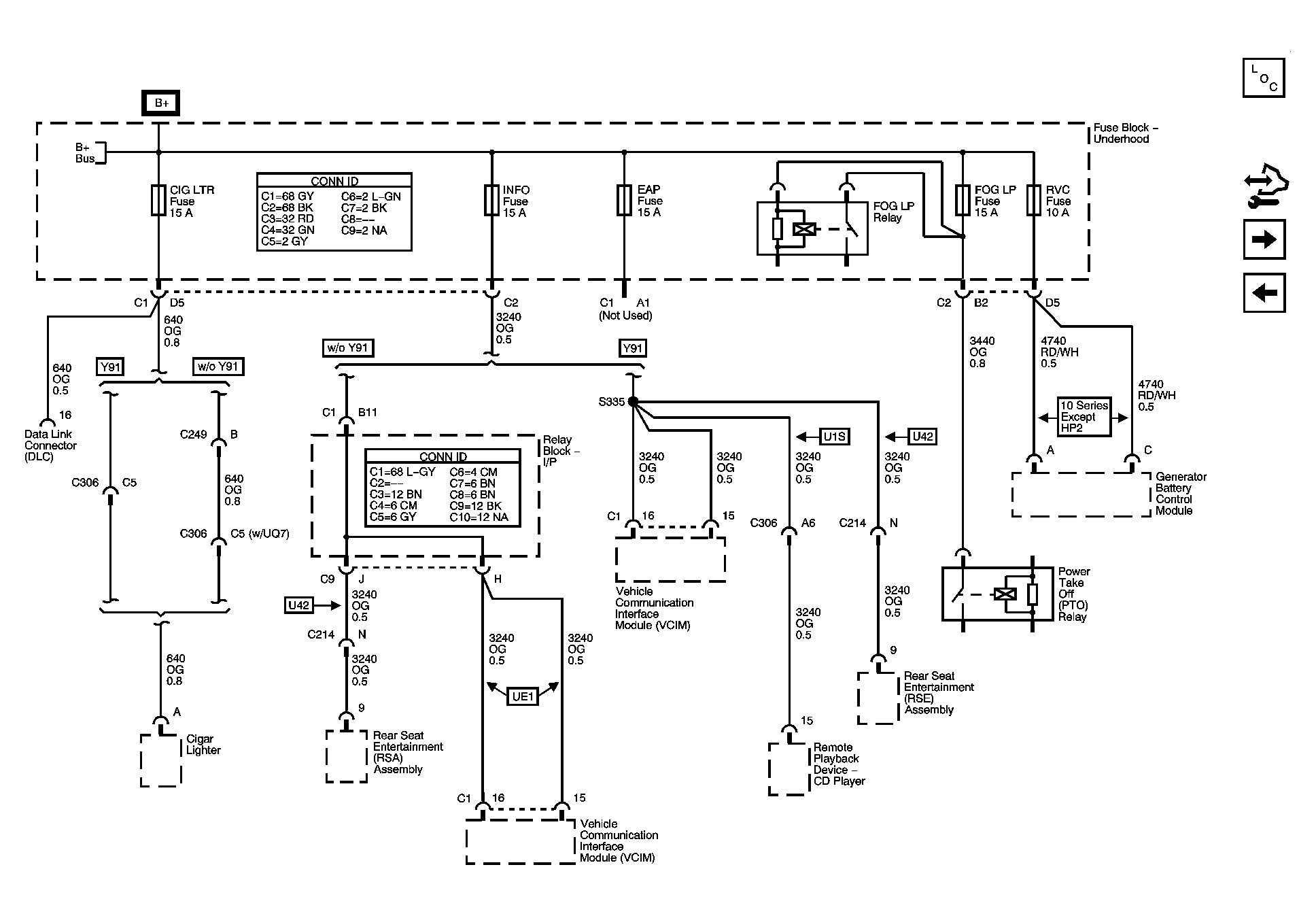

Fig 8: CIG LTR, EAP, INFO, and RVC Fuses

GM1570243

Courtesy of GENERAL MOTORS CORP.

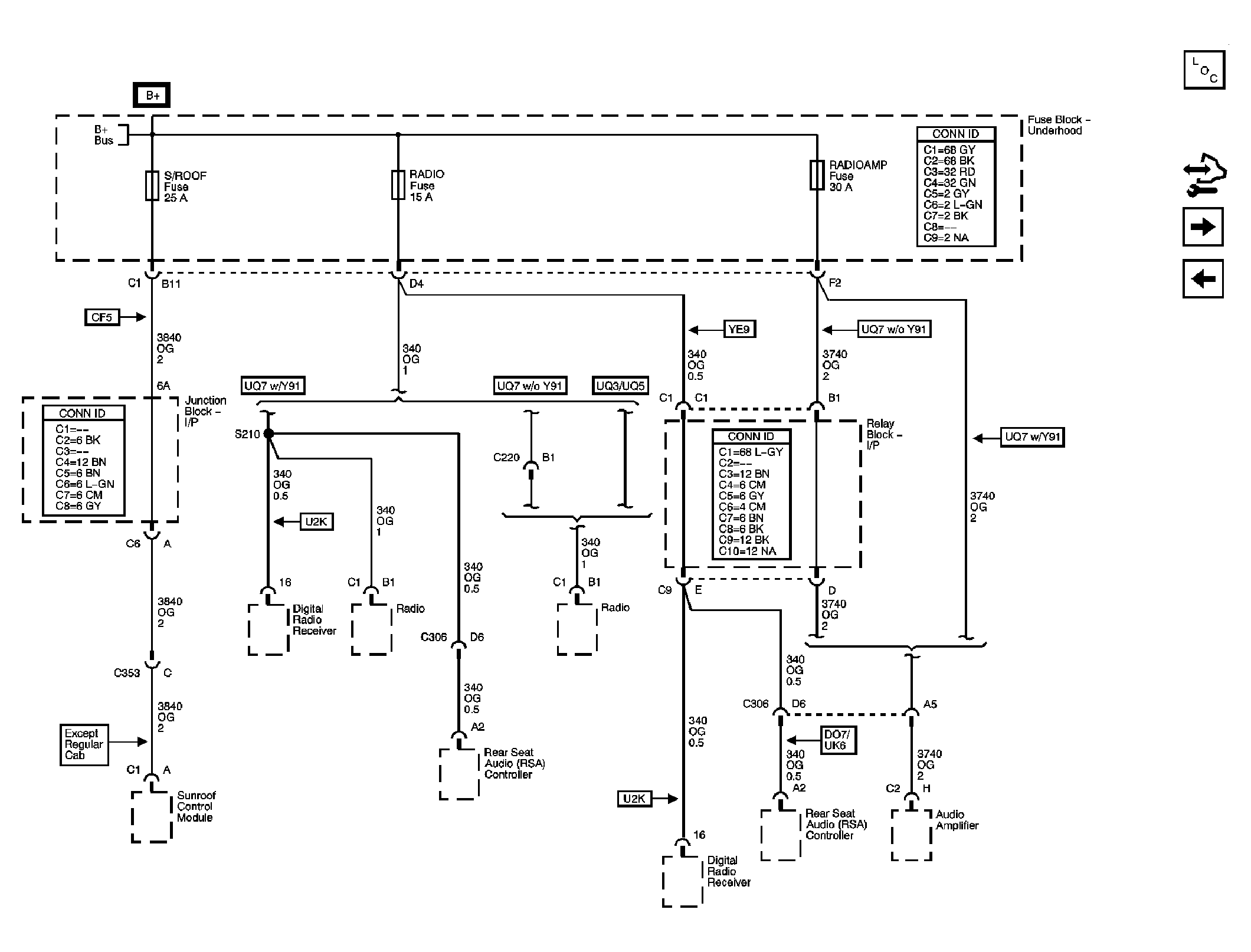

Fig 9: RADIO, RADIO/AMP, and S/ROOF Fuses

GM1570244

Courtesy of GENERAL MOTORS CORP.

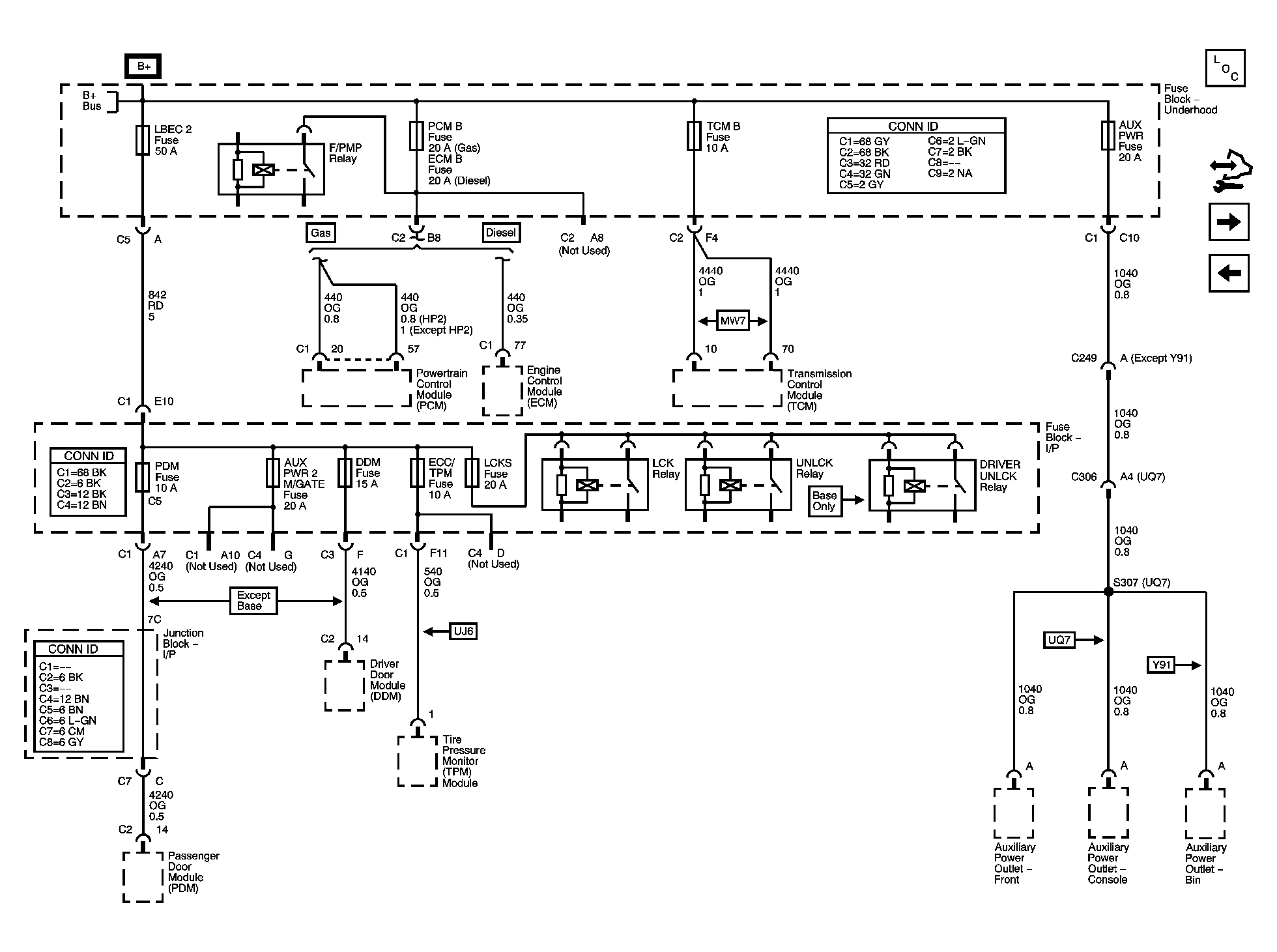

Fig 10: AUX PWR, AUX PWR 2, DDM, ECC/TCM, ECM B, LBEC 2, LCKS, PCM B, PDM and TCM B Fuses

GM1570245

Courtesy of GENERAL MOTORS CORP.

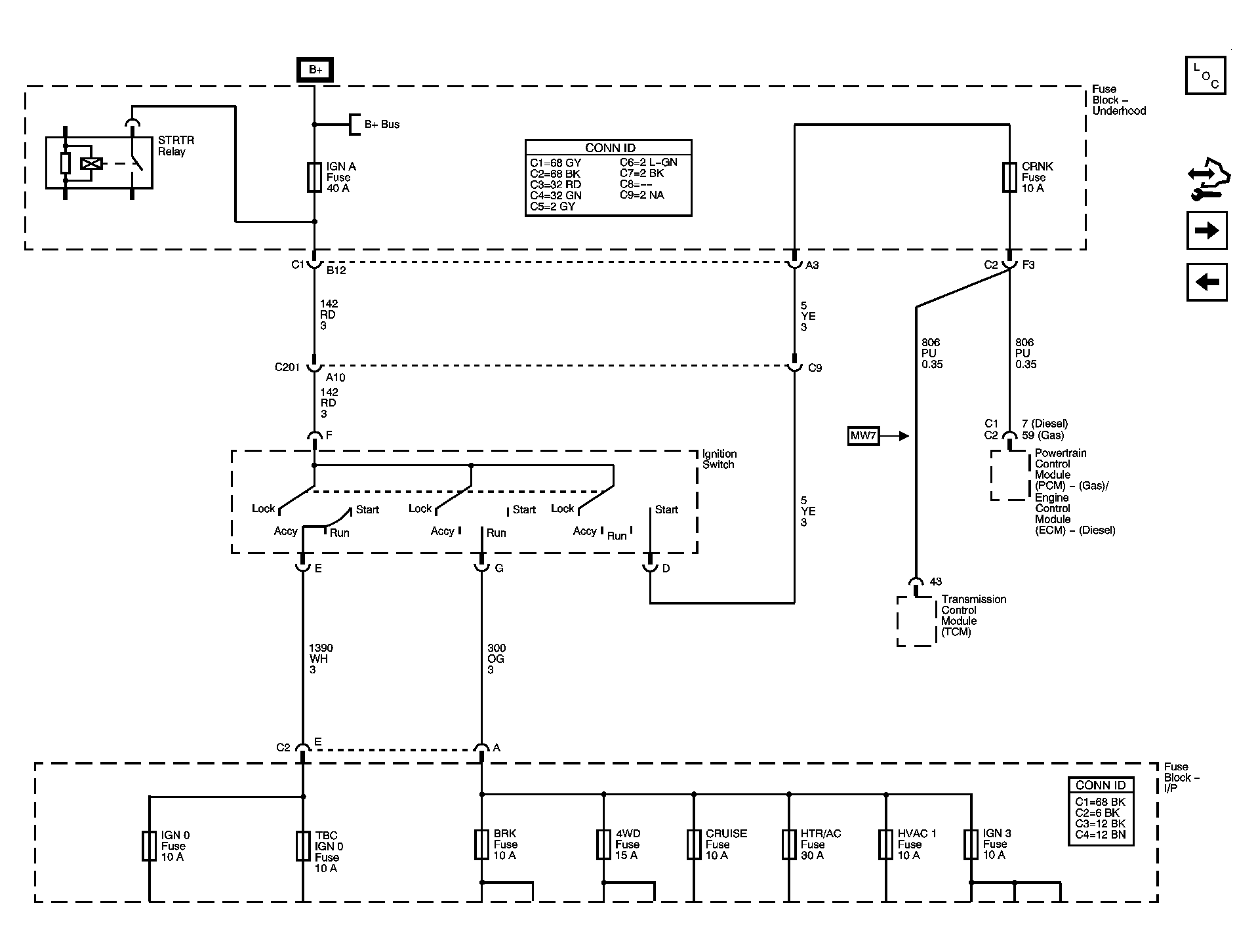

Fig 11: Ignition Switch - START, RUN, and ACC/RUN/START BUS BARS, IGN A, and CRNK Fuses

GM1570247

Courtesy of GENERAL MOTORS CORP.

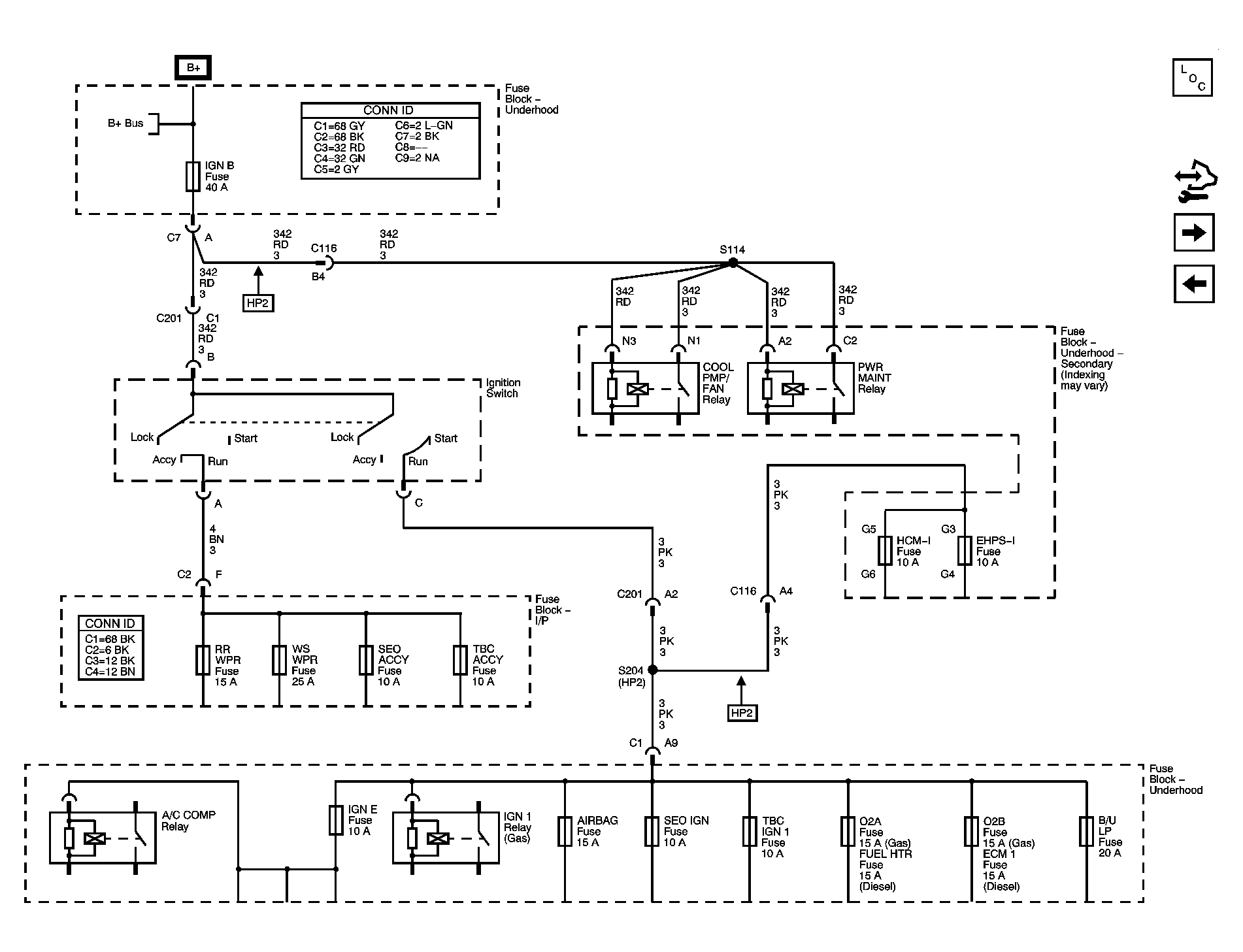

Fig 12: Ignition Switch - ACC/RUN and RUN/START BUS BARS and IGN B Fuse

GM1570248

Courtesy of GENERAL MOTORS CORP.

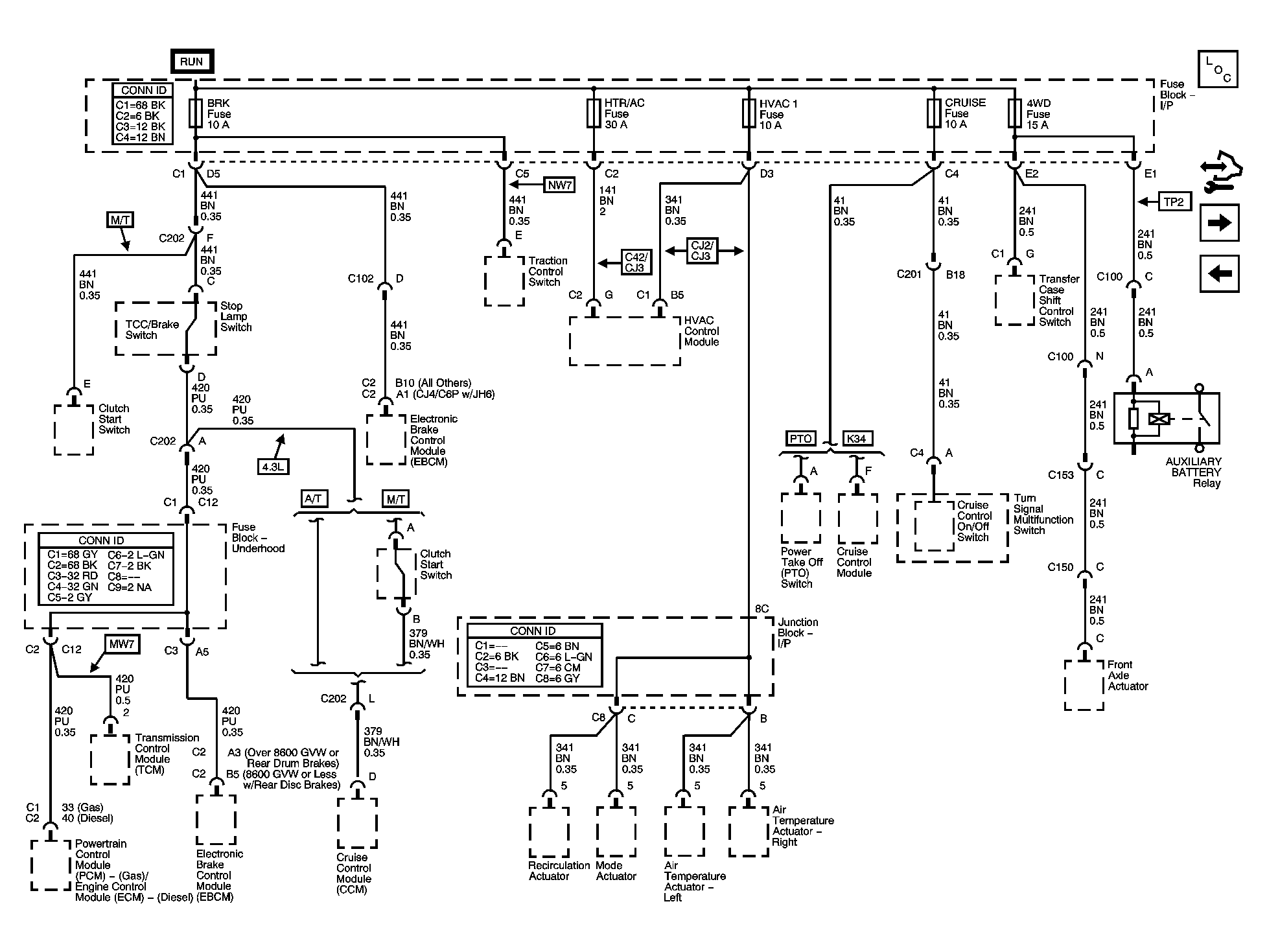

Fig 13: 4WD, BRK, CRUISE, HTR/AC and HVAC 1 Fuses

GM1570249

Courtesy of GENERAL MOTORS CORP.

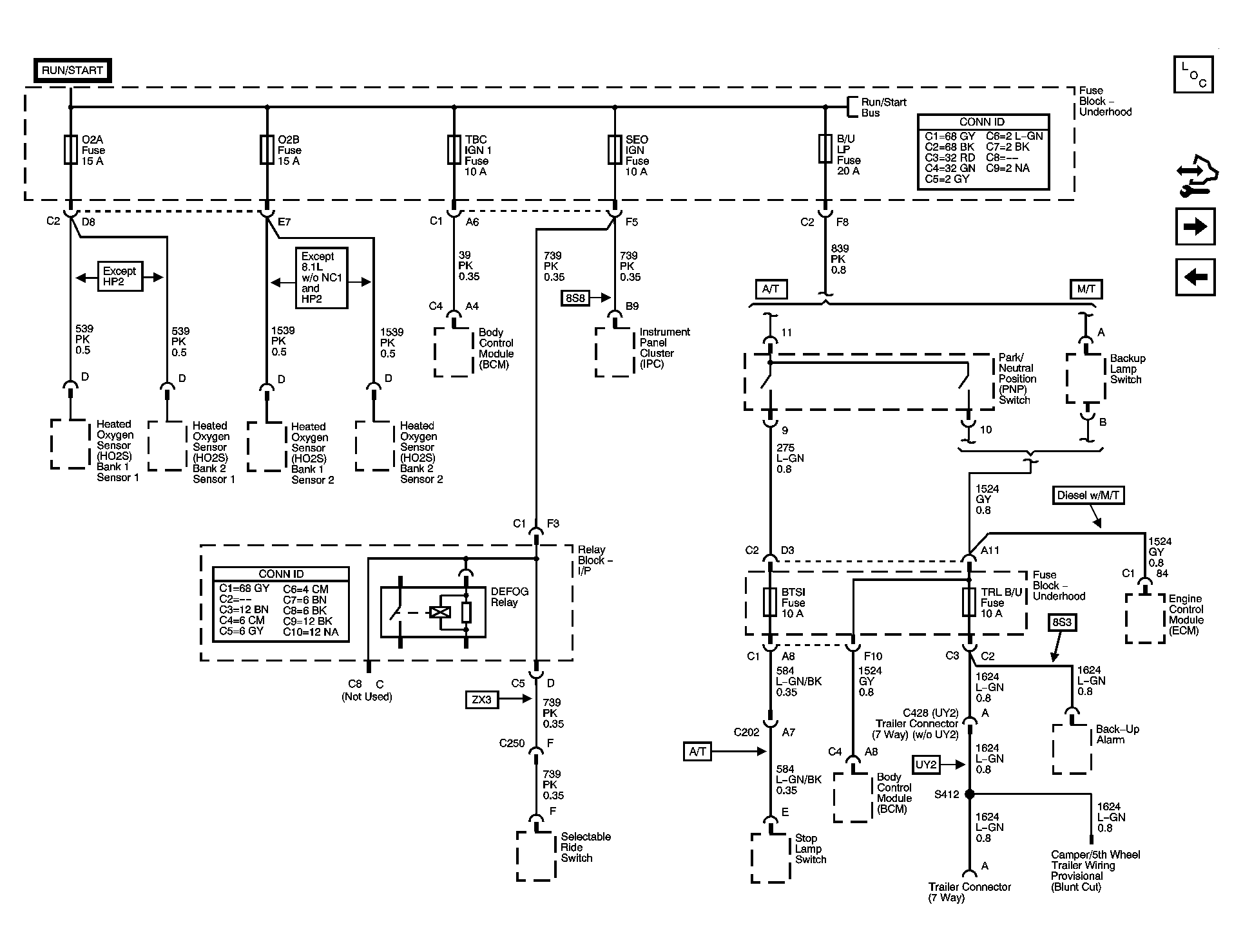

Fig 14: B/U LP, BTSI, O2A, O2B, SEO IGN, TBC IGN 1, and TRL B/U Fuses

GM1570250

Courtesy of GENERAL MOTORS CORP.

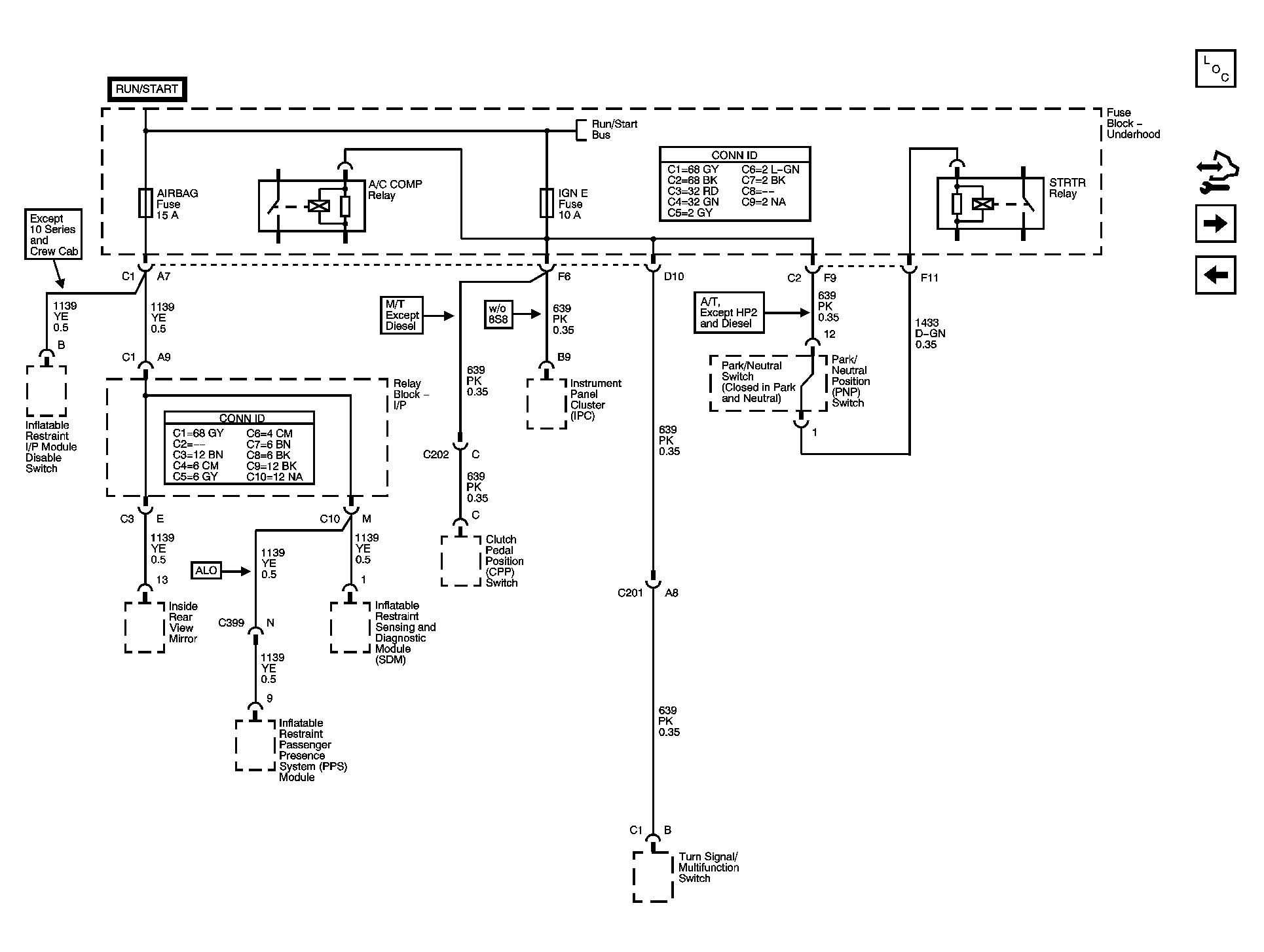

Fig 15: IGN E and AIR BAG Fuses

GM1570251

Courtesy of GENERAL MOTORS CORP.

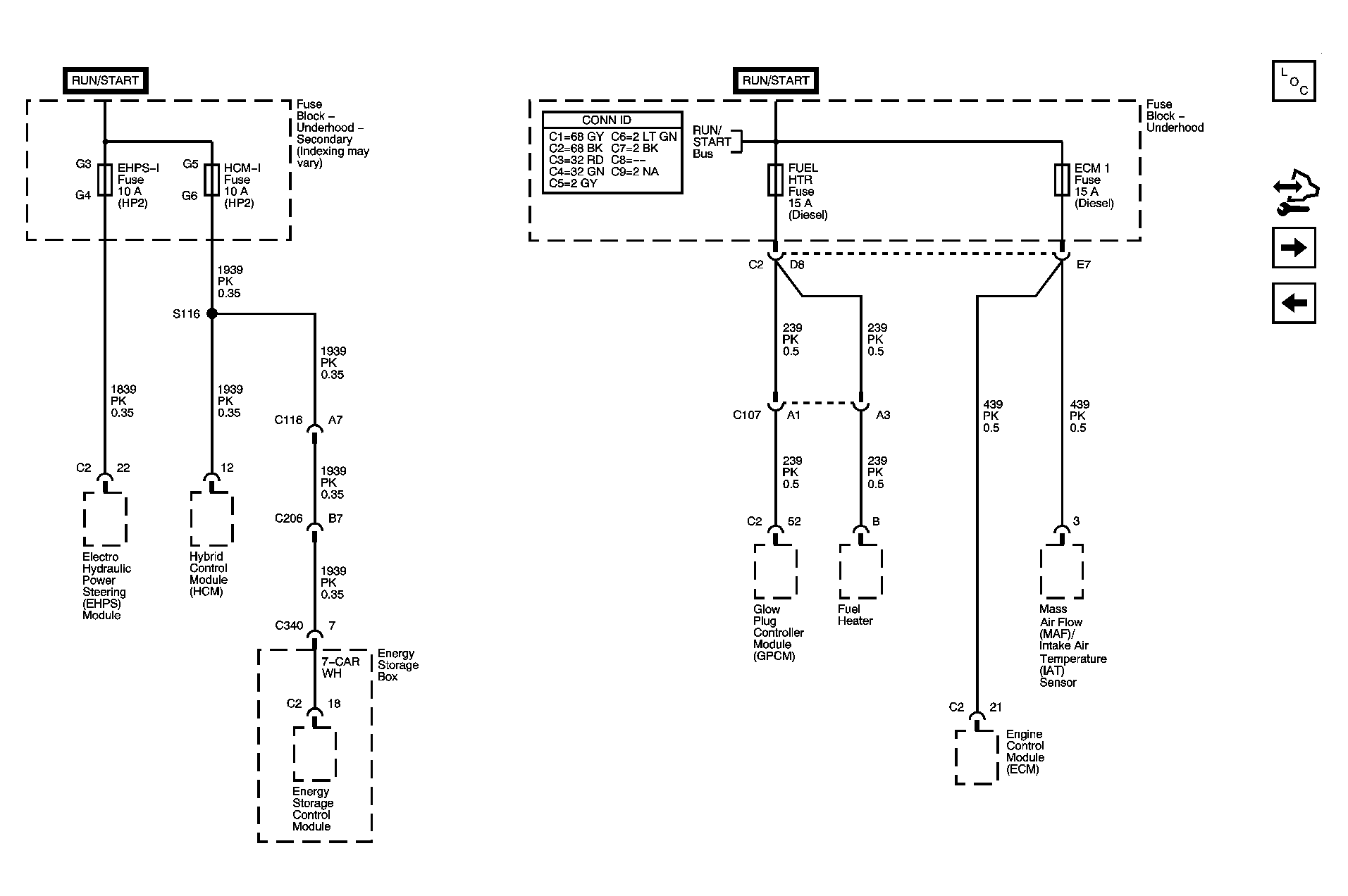

Fig 16: ECM 1, EHPS-I, FUEL HTR and HCM-I Fuses

GM1570252

Courtesy of GENERAL MOTORS CORP.

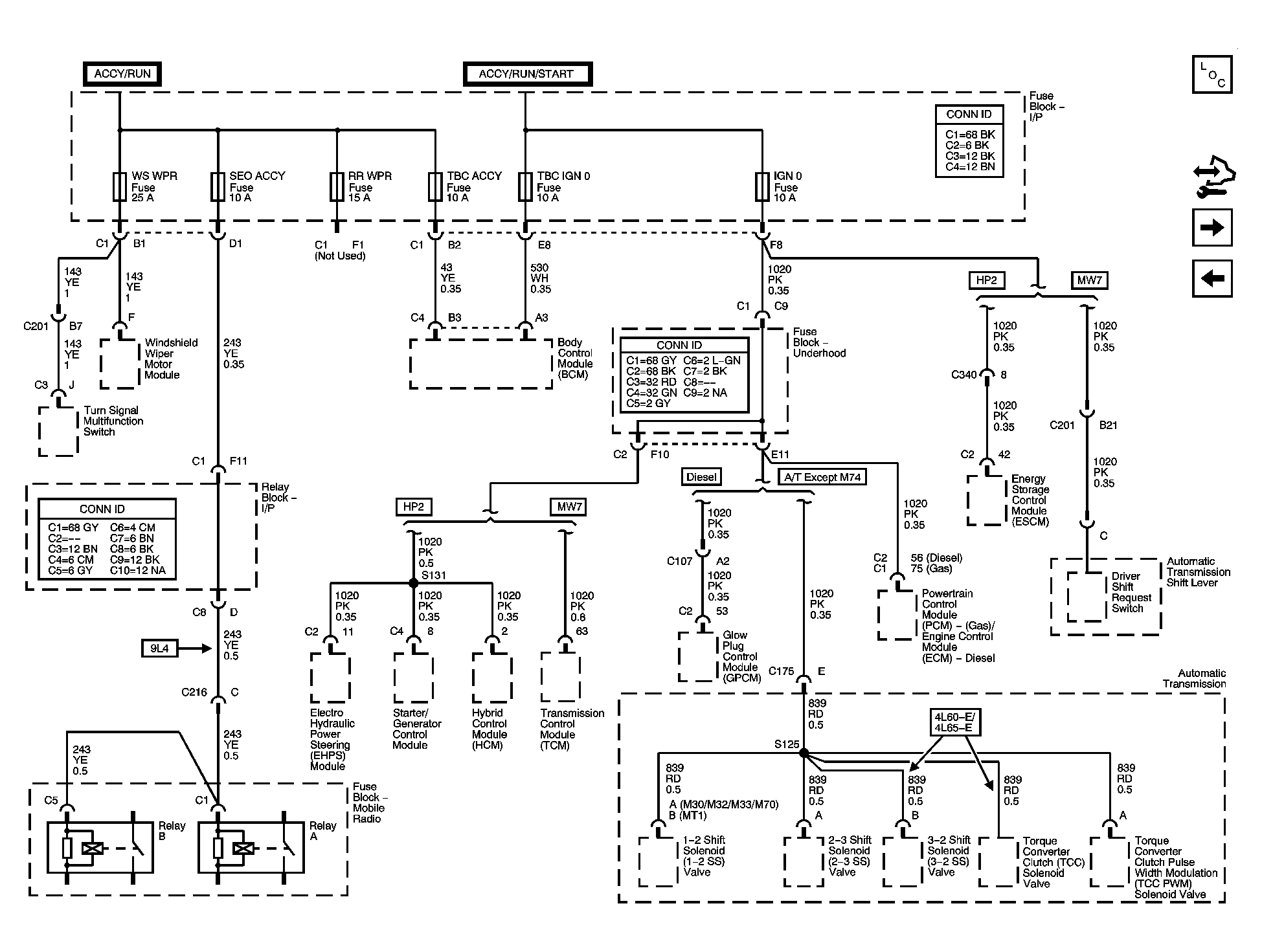

Fig 17: IGN 0, RR WPR, SEO ACCY, TBC ACCY, TBC IGN 0, and WS WPR Fuses

GM1570253

Courtesy of GENERAL MOTORS CORP.

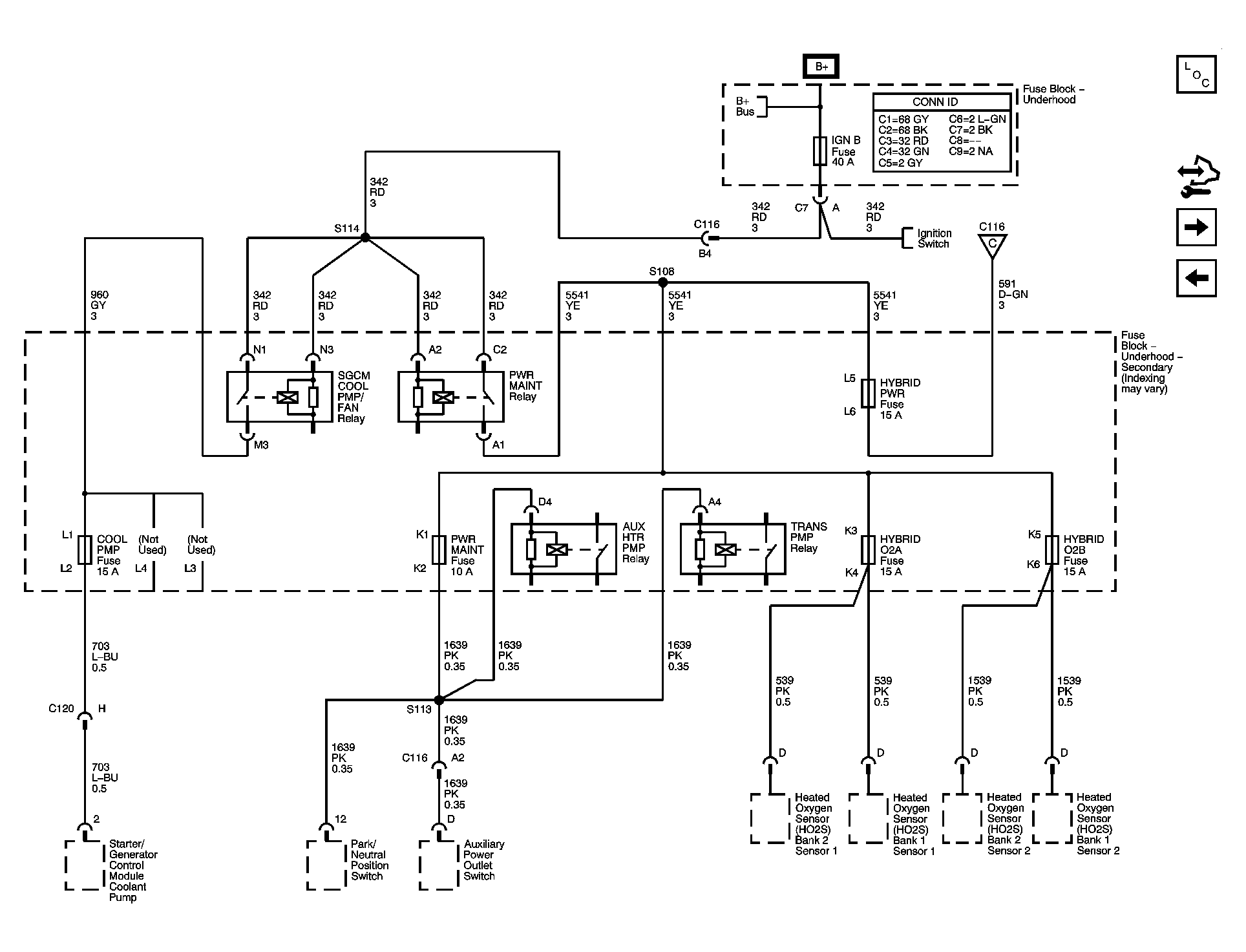

Fig 18: COOL PMP, HYBRID O2A, HYBRID O2B, IGN B, and PWR MAINT Fuses

GM1570254

Courtesy of GENERAL MOTORS CORP.

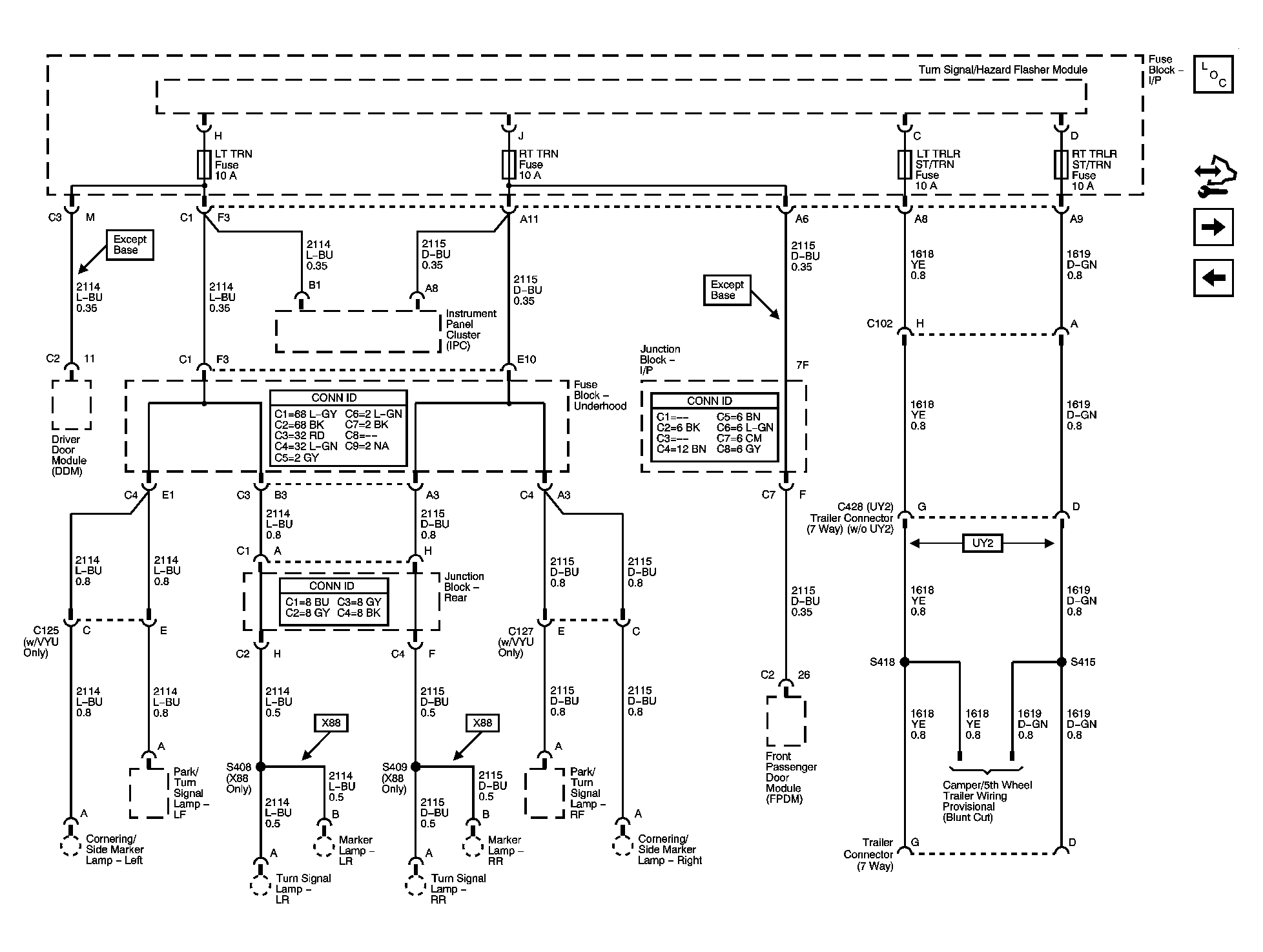

Fig 19: LT TRLR/ST/TRN, LT TRN, RT TRLR ST/TRN, and RT TRN Fuses

GM1570255

Courtesy of GENERAL MOTORS CORP.

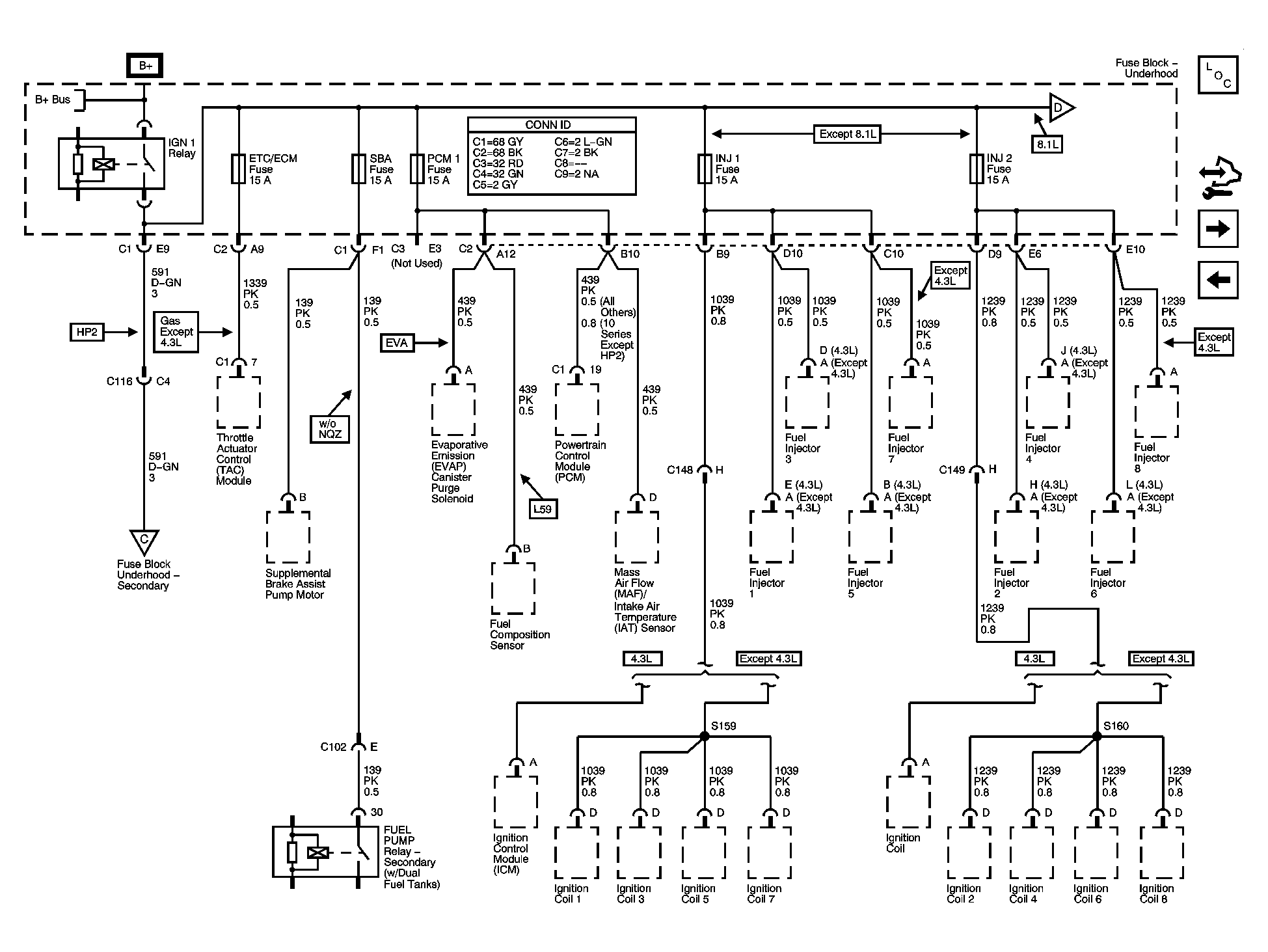

Fig 20: ETC/ECM, INJ 1, INJ 2, PCM 1, and SBA Fuses - Gas

GM1570257

Courtesy of GENERAL MOTORS CORP.

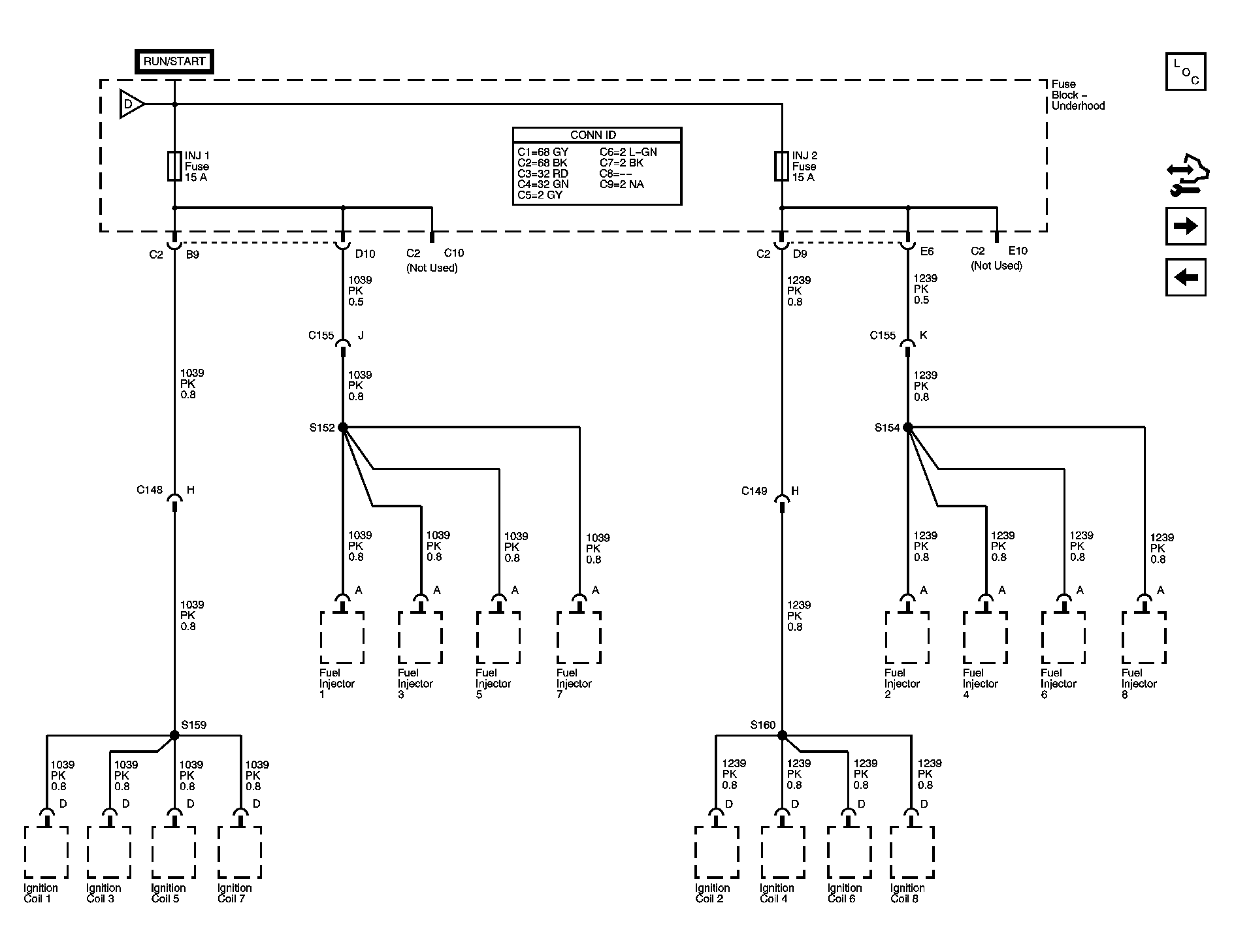

Fig 21: INJ 1 and INJ 2 Fuses - 8.1L

GM1570259

Courtesy of GENERAL MOTORS CORP.

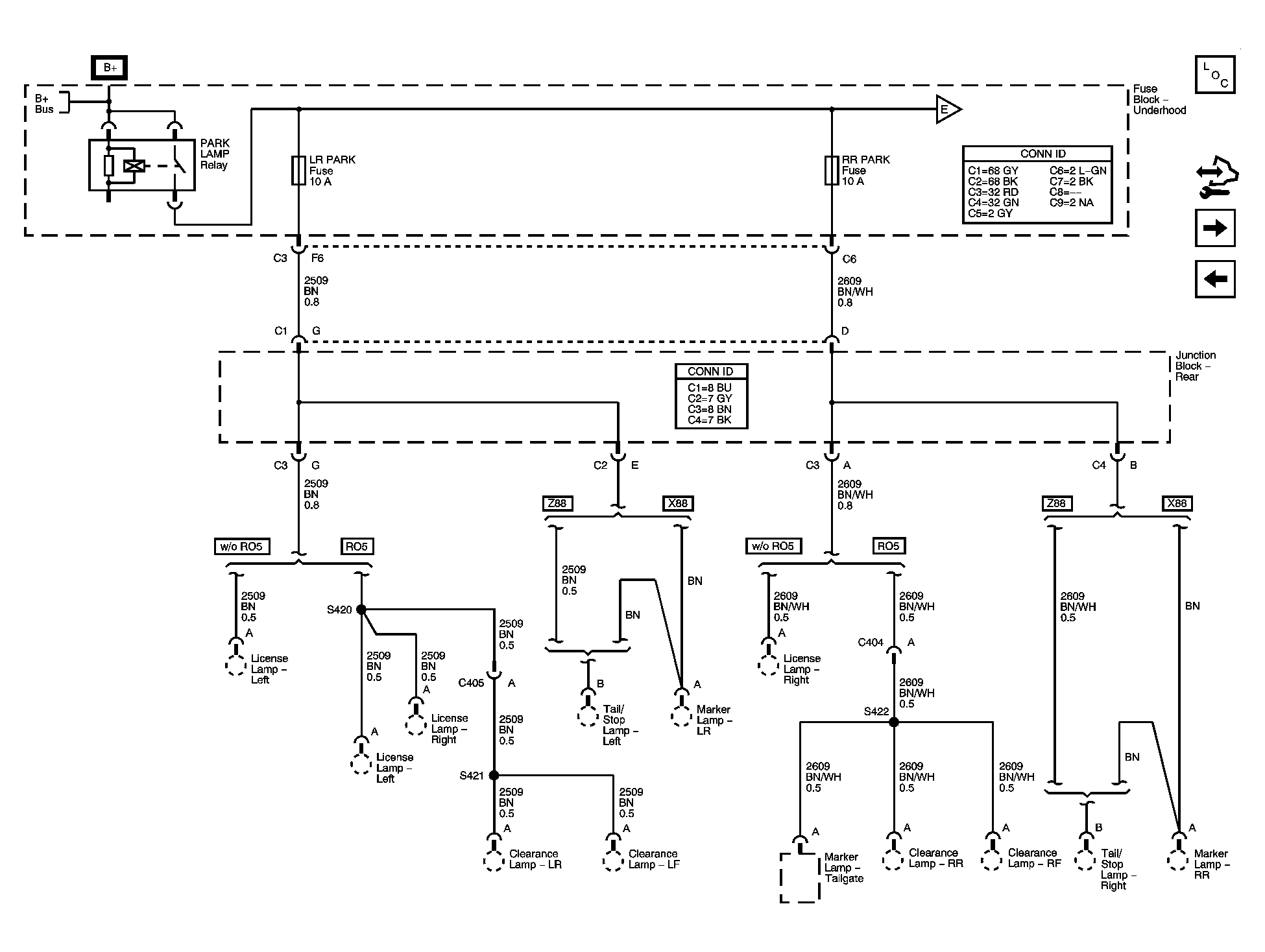

Fig 22: LR PARK and RR PARK Fuses

GM1570260

Courtesy of GENERAL MOTORS CORP.

Fig 23: FRT PARK, INT PARK, and TRL PARK Fuses

GM1570261

Courtesy of GENERAL MOTORS CORP.

Fig 24: HI HDLP LT, HI HDLP RT, HORN, LO HDLP LT, and LO HDLP RT Fuses

GM1570262

Courtesy of GENERAL MOTORS CORP.

Fig 25: ECM RPV and EDVU Fuses - Diesel

GM1570265

Courtesy of GENERAL MOTORS CORP.
