Audible Warnings Schematics

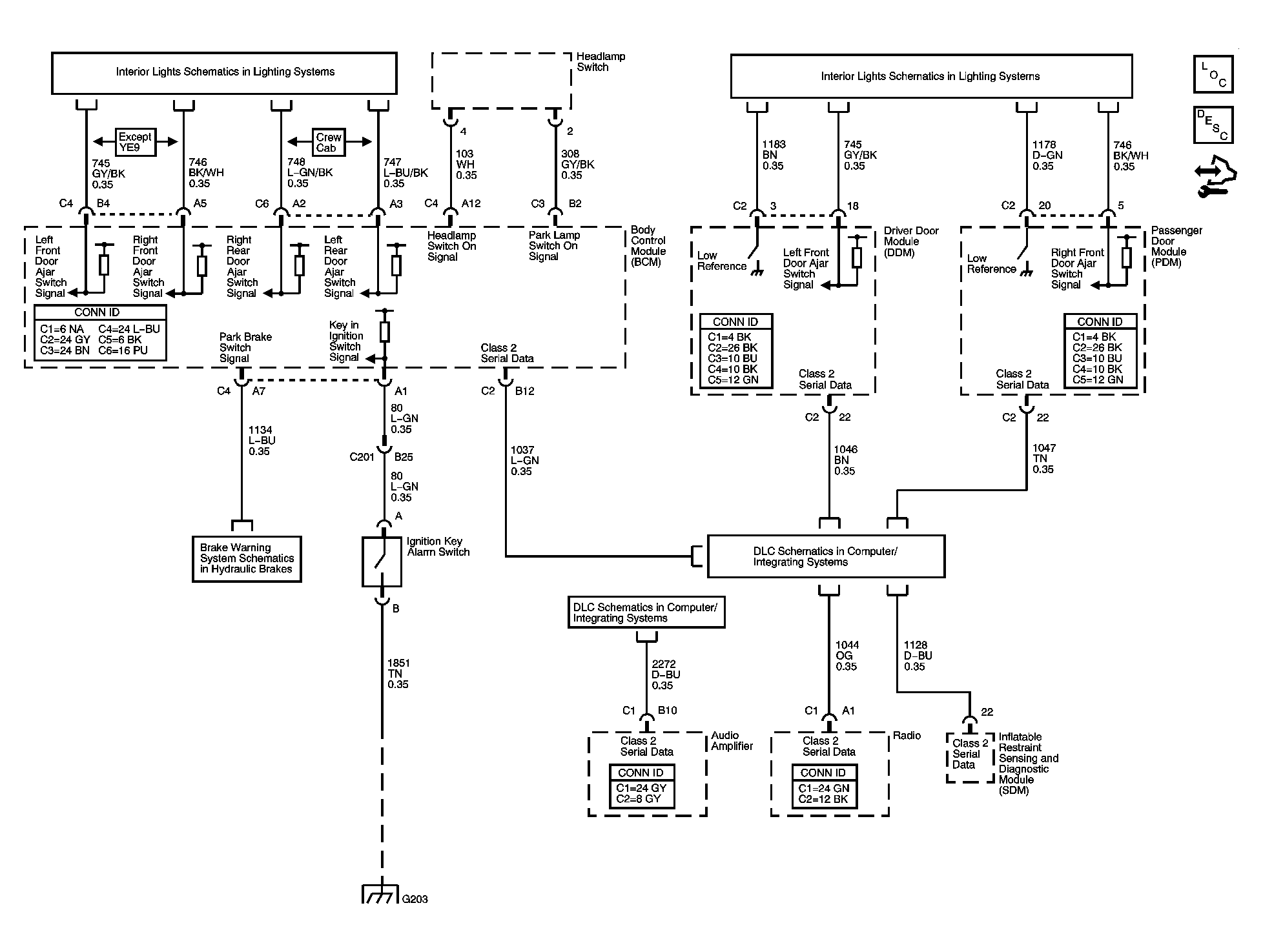

Fig 1: Audible Warning Circuits

GM1570497

Courtesy of GENERAL MOTORS CORP.
