ABS Schematics

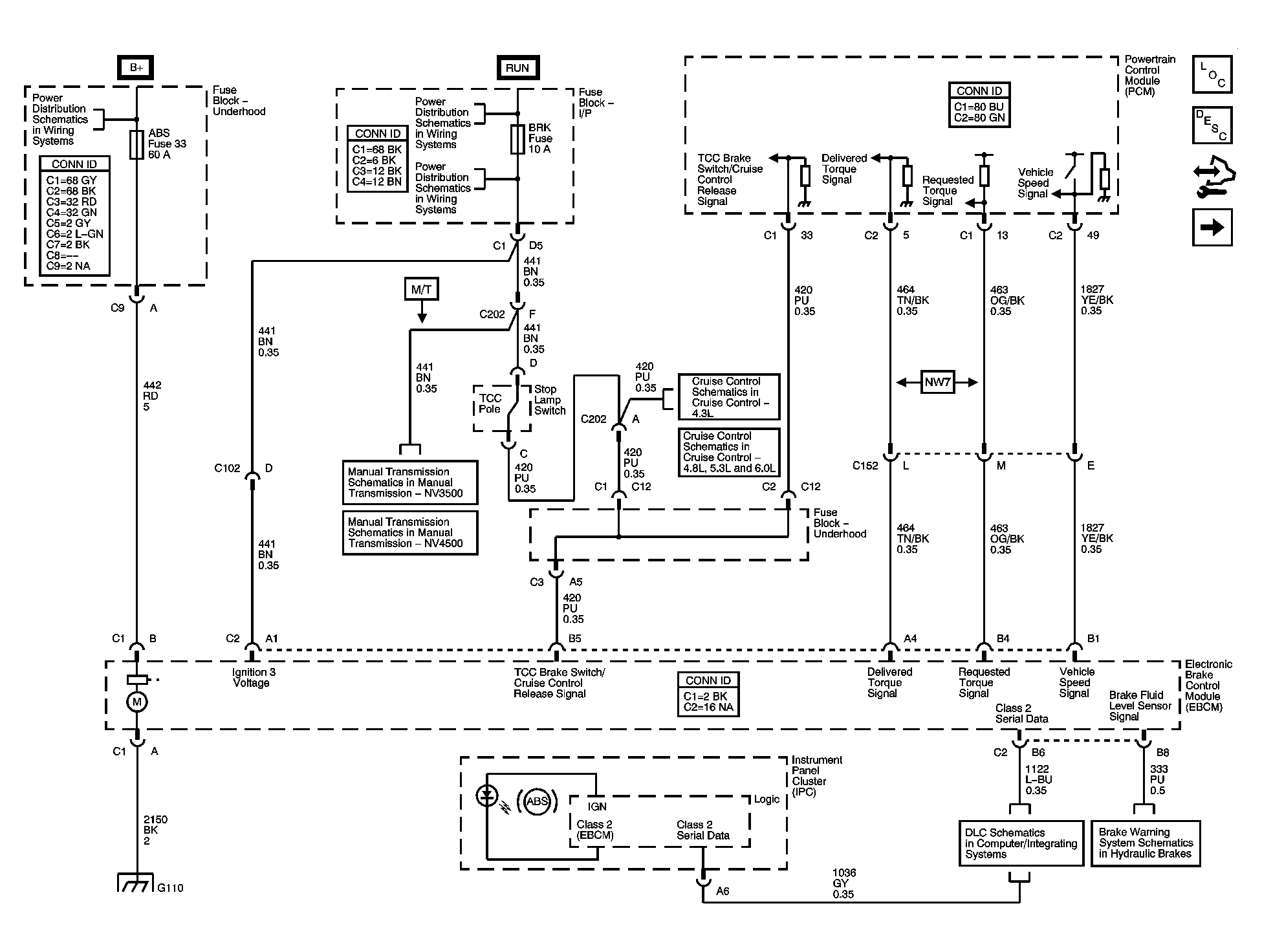

Fig 1: Power, Ground, Serial Data, Indicator, and Stop Lamp Switch - 8600 GVW or Less w/Rear Disc Brakes

Courtesy of GENERAL MOTORS CORP.

Fig 2: Traction Control Switch and Wheel Speed Sensors - 8600 GVW or Less w/Rear Disc Brakes

Courtesy of GENERAL MOTORS CORP.

Fig 3: Power, Ground, Serial Data, Indicator, and Stop Lamp Switch - Greater than 8600 GVW or w/Rear Drum Brakes

Courtesy of GENERAL MOTORS CORP.

Fig 4: Traction Control Switch and Wheel Speed Sensors - Greater than 8600 GVW or w/Rear Drum Brakes

Courtesy of GENERAL MOTORS CORP.
